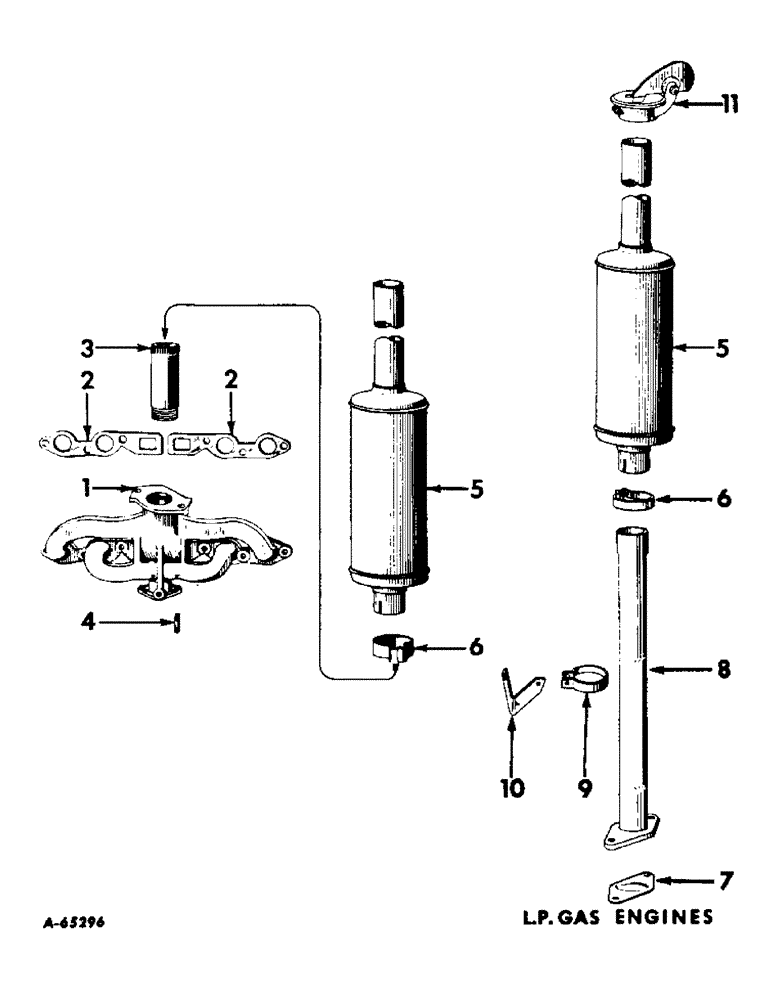

Запчасти Case IH 404 (017) - CARBURETED ENGINE, EXHAUST SYSTEM, FOR TRACTORS EQUIPPED W/VERTICALLY MOUNTED EXHAUST MUFFLER (01) - ENGINE

1

372262R11

MANIFOLD W/PLUG ASSEMBLY, intake and exhaust (LP gas engine)

1шт.

1

3699645R12

MANIFOLD W/PLUG ASSEMBLY, intake and exhaust (gasoline engines)

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd-pipe

1шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8" CI sq-hd. (optional with 445684) (replaces 103865)

1шт.

445684

PLUG

1/8" sq-hd. stl. pipe (optional with 445671) (replaces 103877)

1шт.

107317

GROOVED PIN,3/16" x 1/2", Type A

PLUG, 3/16 x 1/2 drainhole

2шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 hex-hd cap

6шт.

445671

PLUG,Sq Hd, 1/8"-27 NPTF

1/8-27 auto-sq-hd. pipe

1шт.

2

352014R3

GASKET

manifold

2шт.

3

383007R1

PIPE

exhaust

1шт.

4

50705D

STUD

carburetor

2шт.

114493

JAM NUT,Jam, 5/16"-24, G5

2шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

2шт.

5

360720R91

MUFFLER

exhaust

1шт.

6

48889DA

CLAMP

exhaust muffler

1шт.

93082H

NUT

exhaust pipe clamp

1шт.

181374

BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 5

SCREW, 3/8NF x 1-1/2" hex-hd. cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

368482R1

GASKET

exhaust pipe

1шт.

8

375606R11

PIPE ASSEMBLY, exhaust

1шт.

NLS

NO LONGER SERVICED

2шт.

9

62838HA

CLAMP

exhaust pipe bracket (International Tractors)

1шт.

102635

NUT,3/8"-16, G5

1шт.

NLS

NO LONGER SERVICED

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

10

377706R1

BRACKET, exhaust pipe (International Tractors)

1шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

1шт.

179872

BOLT,Hex, 7/16" - 14 x 3 1/2", Gr 5

SCREW, 7/16-14 x 3-1/2" hex-hd. cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

95-11041

WASHER,3/8"

(13/32 x 13/16 x 16 ga) 3/8"

1шт.

11

265927R91

CAP

ASSEMBLY, exhaust

1шт.
