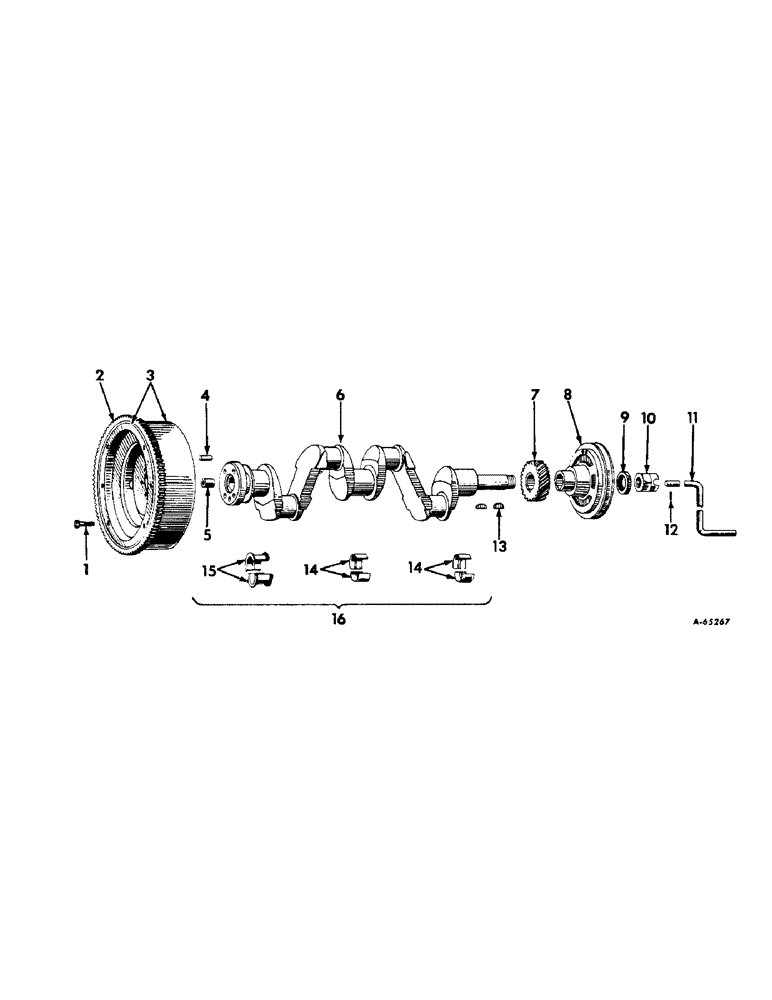

Запчасти Case IH 404 (015) - CARBURETED ENGINE, CRANKSHAFT, FLYWHEEL AND BEARINGS (01) - ENGINE

1

358246R1

BOLT (SPREADER),Wheel, 3/8" - 24 x 1 1/4"

BOLT, flywheel

4шт.

2

376886R1

GEAR

flywheel ring (116 teeth)

1шт.

3

376810R91

FLYWHEEL

ASSEMBLY

1шт.

4

24550D

PIN

flywheel dowel

1шт.

5

364527R2

BUSHING,22.23mm ID x 28.64mm OD x 25.65mm L

clutch pilot

1шт.

6

375795R91

CRANSHAFT ASSEMBLY (standard) (composed of (4) bearing 375723R11, (2) bearing 375755R11, (1) bearing 375762R11, (1) bushing 43291D (NSS), (1) crankshaft 375600R1 (NSS), (1) pin 24550D)

1шт.

6

375796R91

CRANKSHAFT W/BEARINGS FIELD PACKAGE (undersize) (consists of four connecting rod bearings three crankshaft bearings and crankshaft)

1шт.

7

46870DA

PINION

crankshaft (33 teeth)

1шт.

8

368665R3

PULLEY

fan drive

1шт.

9

V84199

NUT,1"-14, Thin

crankshaft (for tractors equipped with front power take- off)

1шт.

10

V84199

NUT,1"-14, Thin

crankshaft (for tractors equipped with starting crank)

1шт.

11

53385DCX

CRANK

W/PIN 15204D, assembly, starting (for tractors equipped with starting crank)

1шт.

12

15204D

PIN, starting crank

1шт.

13

126-117

WOODRUFF KEY,#91, 1/4" x 3/4", HT

1/4 x 3/4 woodruff no. 91

2шт.

14

375755R11

BEARING SET

BEARING ASSEMBLY, crankshaft front and center (2 halves) (standard)

2шт.

14

375757R11

KIT

BEARING ASSEMBLY, crankshaft front and center (2 halves) (.002" undersize)

2шт.

14

376660R11

KIT

BEARING ASSEMBLY, cranshaft front and center (2 halves) (.010" undersize)

2шт.

14

376663R11

BEARING ASSY

ASSEMBLY, crankshaft front and center (2 halves) (.020" undersize)

2шт.

14

375756R11

CRANKSHAFT BEARING

BEARING ASSEMBLY, crankshaft front and center (2 halves) (.030" undersize)

2шт.

15

375762R11

BEARING SET

BEARING ASSEMBLY, crankshaft rear (2 halves) (standard)

1шт.

15

375764R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.002" undersize)

1шт.

15

376661R11

BEARING ASSY

ASSEMBLY, crankshaft rear (2 halves) (.010" undersize)

1шт.

15

376664R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.020" undersize)

1шт.

15

375763R11

BEARING ASSY

BEARING ASSEMBLY, crankshaft rear (2 halves) (.030" undersize)

1шт.

16

375769R91

BEARING SET

crankshaft (standard) (consists of two bearings, 375755R11 and one bearing, 375762R11)

1шт.

16

377274R91

SET

BEARING SET, crankshaft (.002" undersize) (consists of two bearings, 375757R11 and one bearing, 375764R11)

1шт.

16

376659R91

SET

BEARING SET, crankshaft (.010" undersize) (consists of two bearings, 376660R11 and one bearing, 376661R11)

1шт.

16

376662R91

SET

BEARING SET, crankshaft (,020" undersize) (consists of two bearings, 376663R11 and one bearing, 376664R11)

1шт.

16

375770R91

BEARING SET

crankshaft (.030" undersize) (consists of two bearings, 375756R11 and one bearing, 375763R11)

1шт.

16

377272R91

KIT

BEARING SET, crankshaft (.002" undersize) (consists of two bearings, 367755R11 and one bearing, 367756R11)

1шт.

371568R91

PARTS ACCESSORY, front power take-off pulley (consists of pulley, 368665R3 and nut, 23174V)

1шт.
