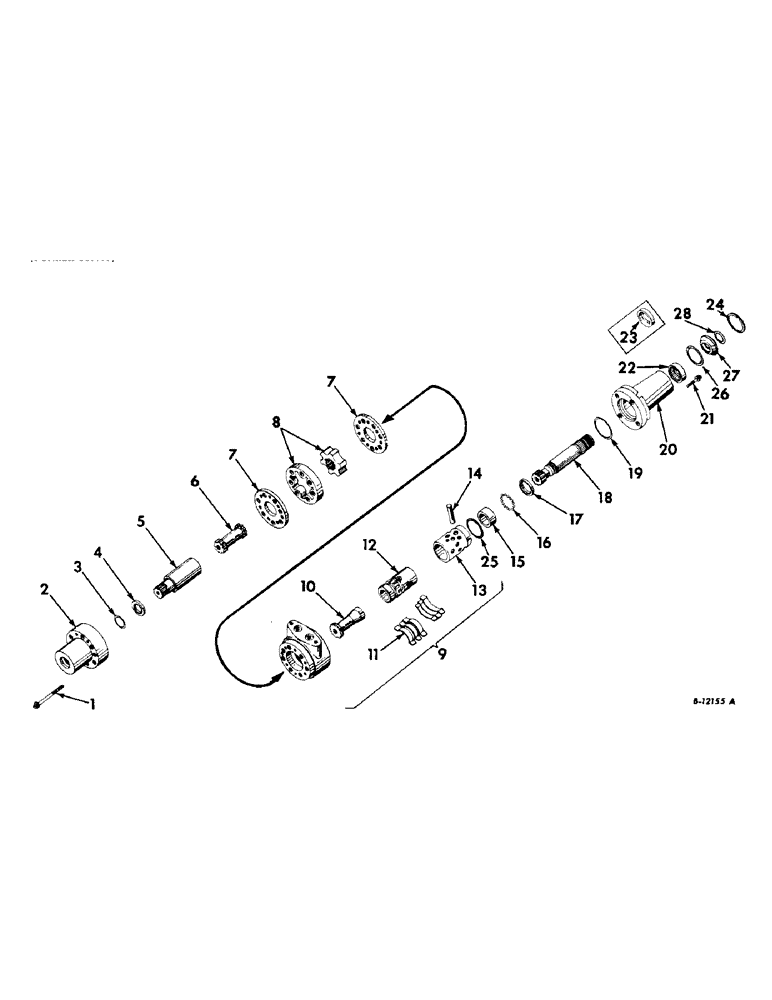

Запчасти Case IH 404 (081) - STEERING MECHANISM, POWER STEERING UNIT, FARMALL SERIES Steering Mechanism

373069R92

UNIT, hydraulic power steering (order 373069R94), Serial Range: 501-942

1шт.

373069R93

PUMP

UNIT, hydraulic power steering (order 373069R94) (NOTE A), Serial Range: 943-1582

1шт.

373069R94

PUMP

UNIT, hydraulic power steering 1583 up

1шт.

1

374538R1

SCREW, power cap 1/4 x 2"

7шт.

2

374536R1

HOUSING, power end

1шт.

3

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

power end (15/16 x 1-3/16 x 1/8")

1шт.

4

374537R1

SPECIAL WASHER

seal ring retainer

1шт.

5

374535R91

SHAFT

ASSEMBLY, power end

1шт.

6

374532R1

DRIVE, power end

1шт.

7

374534R1

PLATE, gerotor

2шт.

8

374533R91

ROTOR

GEROTOR SET

1шт.

9

374523R91

HOUSING ASSEMBLY, sleeve and spool (less reference 10)

1шт.

10

374531R1

DRIVE, control end

1шт.

11

374525R1

SPRING

centering

6шт.

12

NSS

NOT SOLD SEPARAT

SPOOL (not serviced separately, order 374523R91)

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE (not serviced separately, order 374523R91)

1шт.

14

374524R1

PIN

control, Serial Range: sleeve-spool

1шт.

15

374529R1

BUSHING

RACE, control shaft thrust bearing (inner)

1шт.

16

16006R1

BALL

control shaft locating

14шт.

17

NSS

NOT SOLD SEPARAT

RACE, control cap thrust bearing (Not Serviced Separately)

1шт.

18

374530R1

SHAFT, control

1шт.

19

364108R1

O-RING,0.103" Thk x 1.799" ID, -133, Cl 5, 75 Duro

control end cap

1шт.

20

374898R93

HUB

CAP ASSEMBLY, control end (Composed of (1) bearing 371221R91, (1) o-ring 355965R1, (1) o-ring 368109R1, (1) race 374528R1 (NSS), (1) retainer 382110R1, (1) ring 382111R1)

1шт.

21

374540R1

BOLT,1/4" - 20 x 3/4"

SCREW, control end 1/4 x 3/4"

4шт.

22

371221R91

BEARING, NEEDLE,Needle, 22.21mm ID x 28.59mm OD x 9.52mm W

BEARING, control shaft needle

1шт.

23

374527R91

SEAL

OIL SEAL, control end cap, Serial Range: 501-1582

1шт.

24

382111R1

RING, retaining 1583 up

1шт.

25

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

bearing race (1-1/8 x 1-5/16 x 3/32") 1583 up

1шт.

26

368109R1

O-RING,1.239" ID x 0.07" Width

end cap (1-1/4 x 1-3/8 x 1/16") 1583 up

1шт.

27

355965R1

O-RING,0.139" Thk x 0.921" ID, -213, Cl 5, 75 Duro

end cap retainer (15/16 x 1-3/16 x 1/8") 1583 up

1шт.

28

382110R1

WASHER

RETAINER, end cap o-ring 1583 up

1шт.

374539R1

FLUID

SEALANT, loctite cap screw

1шт.

381363R91

PISTON RING SET

PACKAGE, power steering unit o-ring service (NOTE B) (Consists of (1) o-ring 355965R1, (1) o-ring 364108R1, (1) o-ring 372764R1, (1) oil seal 374527R91, (1) sealant 374539R1)

1шт.

382561R91

PISTON RING SET

PACKAGE, power steering unit o-ring service (Consists of (2) o-ring 355965R1, (1) o-ring 364108R1, (1) o-ring 368109R1, (1) o-ring 372764R1, (1) ring 382111R1, (1) sealant 374539R1)

1шт.

382109R91

PACKAGE, end cap reworking (Consists of (1) o-ring 355965R1, (1) o-ring 368109R1, (1) retainer 382110R1, (1) ring 382111R1)

1шт.
