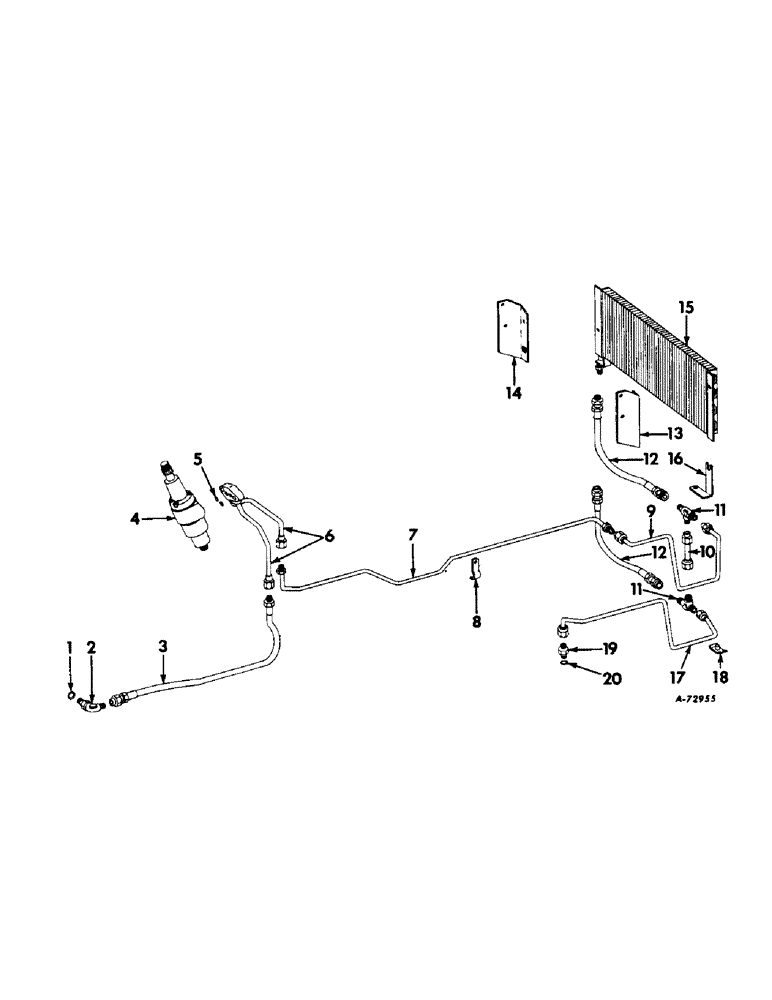

Запчасти Case IH 404 (075) - STEERING MECHANISM, POWER STEERING, FARMALL SERIES TRACTORS WITH 1/2 INCH O.D. TUBING, 1814 UP Steering Mechanism

377236R91

PARTS ACCESSORY, hydraulic power steering

1шт.

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, power steering tube elbow

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT, and WASHER ASSEMBLY, 3/8" TUBE 90 deg.) (O-RING type)

1шт.

3

469779R91

HOSE ASSEMBLY, power steering pressure

1шт.

4

373069R94

PUMP

UNIT, hydraulic power steering (for components see list of parts under details of "POWER STEERING UNIT")

1шт.

373090R1

SCREW, 5/16 x 1" twelve point cap

3шт.

5

355966R1

O-RING,0.424" ID x 0.103" Width

power steering tube flange (7/16 x 5/8 x 3/32")

2шт.

6

381880R91

TUBE ASSEMBLY, hydraulic power steering

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

7

382450R11

TUBE ASSEMBLY, power steering to oil cooler, rear

1шт.

8

380733R1

BRACKET, power steering to oil cooler tube

1шт.

9

382447R11

TUBE ASSEMBLY, power steering to oil cooler, front

1шт.

10

383887R92

PIPE FITTING

VALVE ASSEMBLY, oil cooler relief

1шт.

11

9402982

TEE,3/4"-16, 37 Degree

power steering tube

2шт.

12

382445R91

HOSE, oil cooler (1/2" ID x 15" long)

2шт.

13

380619R11

BRACKET ASSEMBLY, oil cooler, RH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

14

380618R11

BRACKET ASSEMBLY, oil cooler, LH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

15

380486R91

COOLER ASSEMBLY, oil

1шт.

16

382448R1

BRACKET, power steering to oil cooler tube

1шт.

17

382446R11

TUBE ASSEMBLY, oil cooler return

1шт.

18

369758R11

CLAMP ASSEMBLY, oil cooler tube

1шт.

19

382449R1

CONNECTOR, ELEC

CONNECTOR, flow divider reducer

1шт.

20

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, filter tube connector

1шт.

380487R91

BLADE ASSEMBLY, fan (illustrated with "FAN, THERMOSTAT and WATER PUMP")

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

318168R1

SPACER, fan blade

1шт.

378395R1

CAP

steering wheel monogramed

1шт.

350708R1

GASKET

hydraulic pump (illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

373070R91

JOINT ASSEMBLY, center and rear universal

1шт.

21070R1

NUT,3/8"-16, G8

3/8-16

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

3/8-16 x 1-3/4" cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

126-122

WOODRUFF KEY,#13, 3/16" x 1", HT

KEY, no. 13 Woodruff

1шт.

377002R91

MANIFOLD ASSEMBLY, hydraulic pump (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

313579R1

SNAP RING

O-RING, flow control valve and manifold flange (15/16 x 1-3/16 x 1/8") (Illustrated with "HYDRAULIC POWER SUPPLY")

2шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

flow control valve and manifold flange (1-1/8 x 1-5/16 x 3/32") (Illustrated with "HYDRAULIC POWER SUPPLY")

2шт.

21249D

PIN

rear steering shaft universal joint

1шт.

368633R92

PUMP

ASSEMBLY, hydraulic (illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4" cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

373085R1

SHAFT, center steering

1шт.

377029R92

VALVE ASSEMBLY, flow control (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.
