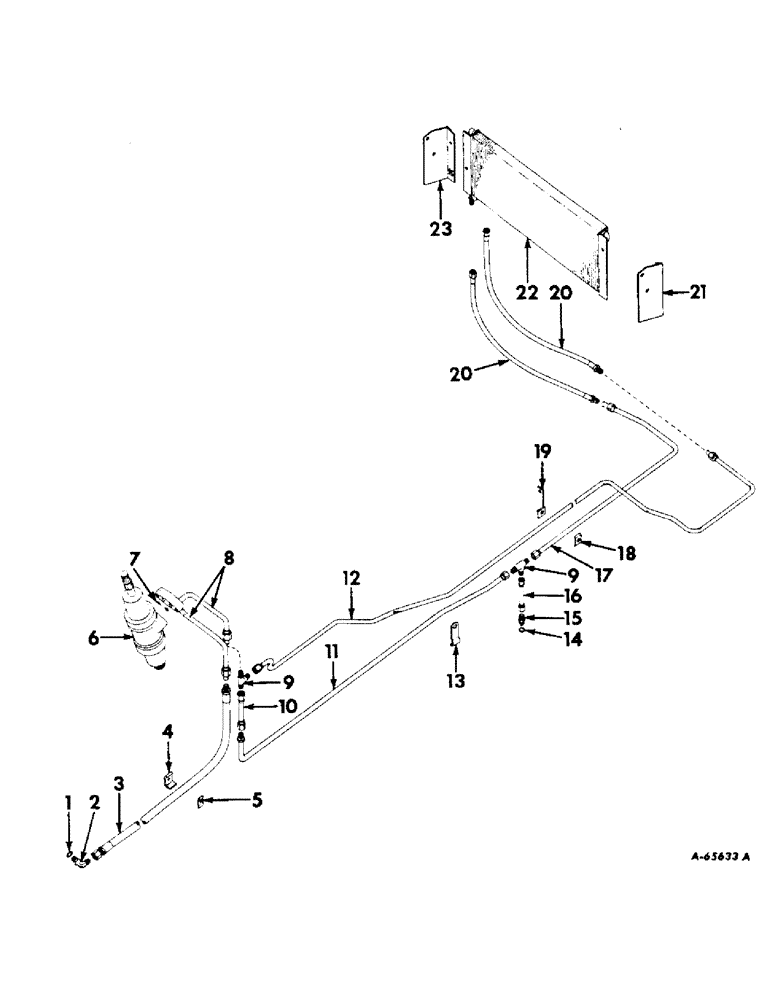

Запчасти Case IH 404 (073) - STEERING MECHANISM, POWER STEERING, FARMALL SERIES TRACTORS W/ 3/8 INCH O.D. TUBING, 501 TO 1813 Steering Mechanism

377236R91

PARTS ACCESSORY, hydraulic power steering

1шт.

1

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, power steering tube elbow

1шт.

2

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

w/NUT and WASHER ASSEMBLY, 3/8" tube 90 deg. (O-RING type) 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

3

469779R91

HOSE ASSEMBLY, power steering pressure 1180 up

1шт.

4

380732R1

CLAMP, power steering tube, Serial Range: 501-1179

1шт.

5

378775R1

BRACKET, power steering tube, Serial Range: 501-1179

1шт.

272495

SCREW, 1/4 x 1" ov-hd.

1шт.

6

373069R94

PUMP

UNIT, hydraulic power steering (for components see list of parts under details of "POWER STEERING UNIT")

1шт.

373090R1

SCREW, 5/16 x 1" twelve point cap

3шт.

7

355966R1

O-RING,0.424" ID x 0.103" Width

power steering tube flange (7/16 x 5/8 x 3/32")

2шт.

8

379156R91

TUBE ASSEMBLY, hydraulic power steering (order TUBE ASSEMBLY, 381880R91 and HOSE, 469779R91), Serial Range: 501-1179

1шт.

8

381880R91

TUBE ASSEMBLY, hydraulic power steering 1180 up

1шт.

179820

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

380782R1

TEE, power steering tube

2шт.

10

383887R92

PIPE FITTING

VALVE ASSEMBLY, oil cooler relief

1шт.

11

381069R21

TUBE ASSEMBLY, relief, Serial Range: valve-tee

1шт.

12

378770R11

TUBE ASSEMBLY, power steering to oil cooler

1шт.

13

380733R1

BRACKET, power steering to oil cooler tube

1шт.

14

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, filter tube connector

1шт.

15

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, filter tube

1шт.

16

381068R11

TUBE ASSEMBLY, Serial Range: tee-filter

1шт.

17

380736R11

TUBE ASSEMBLY, tee to oil cooler

1шт.

18

381394R1

CLAMP

power steering return tube

1шт.

109084

NUT,1/4"-20, G5

1шт.

NLS

NO LONGER SERVICED

SCREW, 1/4-20 x 7/8" cap

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

19

380734R1

BRACKET, oil cooler tube

1шт.

20

380791R91

HOSE, oil cooler (3/8" ID x 21" long)

2шт.

21

380619R11

BRACKET ASSEMBLY, oil cooler, RH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

22

380486R91

COOLER ASSEMBLY, oil

1шт.

23

380618R1

BRACKET ASSEMBLY, oil cooler, LH

1шт.

179810

SCREW,Hex, 5/16" - 18 x 3/8", Gr 5, Full Thd

BOLT, Hex, 5/16"-18 x 3/8", G5, Full Thd

2шт.

95-11034

WASHER,1/4"

11/32 x 11/16" x 16 ga.

1шт.

380487R91

BLADE ASSEMBLY, fan (illustrated with FAN, THERMOSTAT and WATER PUMP)

1шт.

181315

BOLT,Hex, 1/4" - 28 x 1", Gr 5

4шт.

318168R1

SPACER, fan blade

1шт.

378395R1

CAP

steering wheel monogramed

1шт.

350708R1

GASKET

hydraulic pump (illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

373070R91

JOINT ASSEMBLY, center and rear universal

1шт.

21070R1

NUT,3/8"-16, G8

3/8"-16

1шт.

374831R1

SCREW,3/8" - 16 x 1 3/4", Gr 8

3/8-16 x 1-3/4" cap

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

124552

SCREW

no. 13 Woodruff

1шт.

377002R91

MANIFOLD ASSEMBLY, hydraulic pump (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8-16 x 3-1/4" cap

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

313579R1

SNAP RING

O-RING, flow control valve and manifold flange (15/16 x 1-3/16 x 1/8") (Illustrated with "HYDRAULIC POWER SUPPLY)

2шт.

372764R1

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

flow control valve and manifold flange (1-1/8 x 1-5/16 x 3/32") (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

21249D

PIN

rear steering shaft universal joint

1шт.

368633R92

PUMP

ASSEMBLY, hydraulic (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

SCREW, 3/8 x 3-1/4" cap

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

373085R1

SHAFT, center steering

1шт.

381796R91

VALVE ASSEMBLY, flow control (Illustrated with "HYDRAULIC POWER SUPPLY")

1шт.

373087R1

YOKE

front steering shaft rear universal joint

1шт.
