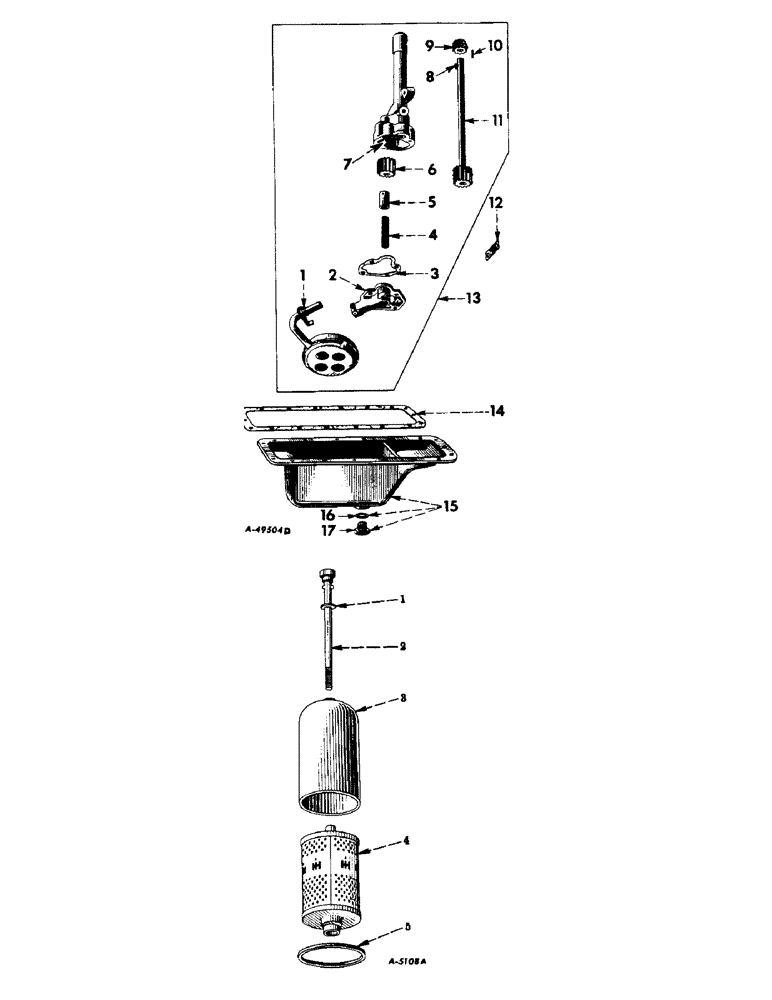

Запчасти Case IH 404 (037) - LUBRICATION SYSTEM, CRANKCASE OIL PAN AND LUBRICATING OIL PUMP Lubrication System

1

368979R91

SCREEN

ASSEMBLY, oil pump

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

2

6098DA

OIL RESERVOIR

COVER, oil pump

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

375786R1

GASKET

oil pump body cover

1шт.

4

43414DA

VALVE SPRING

SPRING, oil pump pressure

1шт.

5

357648R1

LOCK VALVE

VALVE, oil pump pressure

1шт.

6

227713R1

GEAR WHEEL

GEAR, oil pump idler

1шт.

7

35647H

SHAFT

oil pump idler

1шт.

8

NLS

NO LONGER SERVICED

no. 5 Woodruff

1шт.

9

352057R1

GEAR

oil pump shaft spiral

1шт.

10

112011

PIN,1/8" x 7/8"

1/8 x 7/8" sq end straight (spiral gear)

1шт.

11

375789R91

SHAFT

GEAR and SHAFT ASSEMBLY, oil pump

1шт.

12

46629D

LOCK

oil pump screw

1шт.

13

375785R91

PUMP

ASSEMBLY, lubricating oil (less screen)

1шт.

DOES NOT COMBINE WITH SCREEN IT NO. 1

1шт.

103865

PLUG, 1/8" sq-hd. pipe

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, 3/8 x 1-3/4" cap

2шт.

14

43458DB

GASKET

oil pan

1шт.

15

372145R91

PAN

ASSEMBLY, crankcase oil

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

14шт.

179822

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

18шт.

16

3405H

GASKET

crankcase oil pan drain plug

1шт.

17

445096

PLUG

crankcase oil pan drain (will work for 359875R1)

1шт.
