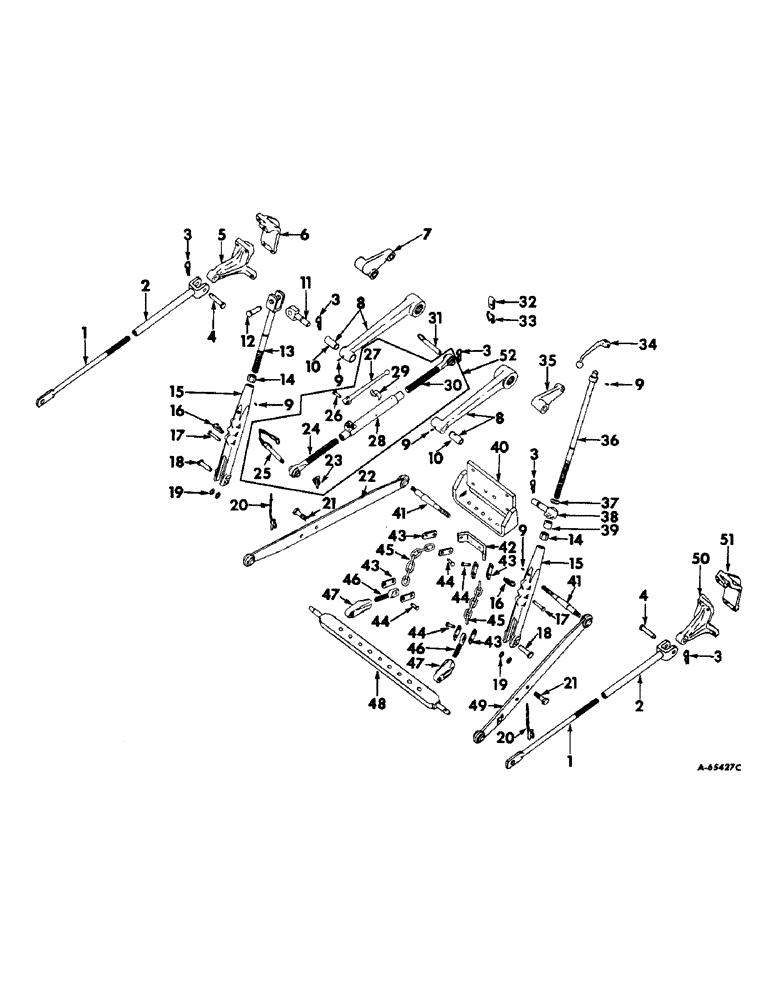

Запчасти Case IH 404 (127) - DRAWBARS AND HITCHES, THREE-POINT HITCH Drawbar & Hitches

1

378012R1

ROD

stabilizer end

2шт.

2

378010R11

TUBE

ASSEMBLY, stabilizer

2шт.

3

520175R1

CLIP

PIN, quick attachable cotter

5шт.

4

378397R1

PIN, SPLIT (COTTER)

PIN, stabilizer pivot

2шт.

5

376778R1

BRACKET, LH stabilizer

1шт.

6

376780R1

CLAMP, LH stabilizer bracket

1шт.

102637

NUT,1/2"-13, G5

4шт.

20655R1

SCREW, 1/2-13 x 5-1/2 hex-hd.

4шт.

7

375933R1

BRACKET, LH lower link lockout

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4" cap

2шт.

8

375873R11

ARM ASSEMBLY, rockshaft

2шт.

9

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4" straight drive type lubrication

5шт.

10

523169R1

BUSHING,25.43mm ID x 30.28mm OD x 57.15mm L

rockshaft arm

2шт.

11

376504R1

EYEBOLT

LH lift link

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga.

1шт.

12

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, 3/4 x 2-3/8" headed

1шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

1шт.

13

375883R11

SCREW ASSEMBLY, LH leveling (Unit A)

1шт.

13

375885R11

SCREW ASSEMBLY, LH leveling (Unit B)

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

14

376502R1

NUT

leveling screw

2шт.

15

376528R2

HOUSING, leveling screw

2шт.

16

520174R11

LINCH PIN,7.92mm OD x 88.91mm L

PIN ASSEMBLY, quick attachable cotter

2шт.

17

378405R1

PIN

leveling screw nut retaining

2шт.

107762

WASHER,3/32" x 5/8"

PIN, SPLIT, (COTTER), 3/32" x 5/8"

2шт.

18

378406R1

PIN

leveling screw housing

2шт.

432-1620

COTTER PIN,1/4" x 1 1/4"

PIN, split (Cotter), 1/4" x 1-1/4"

2шт.

19

16066R1

WASHER

SPACER, leveling screw housing (25/32 x 1-1/2 x 16 ga.)

4шт.

20

375893R91

AXLE PIN

PIN ASSEMBLY, lower link quick attachable

2шт.

21

378440R1

BOLT, restraining chain rear bracket

2шт.

108638

COTTER PIN,3/16" x 1 1/8"

Pin, Split (Cotter), 3/16" x 1 1/8"

2шт.

22

375920R91

LINK ASSEMBLY, LH lower (Unit A)

1шт.

22

375923R91

LINK ASSEMBLY, LH lower (Unit B)

1шт.

23

517758R91

SPLIT PIN/SAFETY PIN

PIN ASSEMBLY, implement pin retaining

1шт.

24

375898R21

LINK and BALL ASSY., LH thread upper (optional with 384546R91)

1шт.

24

384546R91

LINK and BALL ASSY., LH thread upper (optional with 375898R21)

1шт.

365401R1

PIN

1/4 x 1" spirol

1шт.

25

376506R91

PIN ASSEMBLY, upper link implement

1шт.

26

W4435

PIN

3/8 x 1-3/8" headed (turnbuckle handle)

1шт.

107763

COTTER PIN,1/8" x 5/8"

PIN, SPLIT (COTTER), 1/8" x 5/8"

1шт.

27

375901R1

HANDLE, upper turnbuckle (Also order clip, 395109R1 and handle, 392204R1)

1шт.

28

375900R21

LOCK

TURNBUCKLE ASSEMBLY, upper link

1шт.

29

376507R1

CLIP

turnbuckle handle (Also order handle, 392204R1 and clip, 395108R1)

1шт.

30

375899R21

LINK ASSY., RH thread upper (optional with 384547R91)

1шт.

30

384547R91

LINK ASSY., RH thread upper (optional with 375899R21)

1шт.

365401R1

PIN

1/4 x 1" spirol

1шт.

31

377998R11

PIN ASSEMBLY, upper link bellcrank (used with bellcrank, 376976R1)

1шт.

31

383436R11

PIN

ASSEMBLY, upper link bellcrank (used with bellcrank, 383433R1)

1шт.

32

378404R1

FASTENER

CLIP, upper link storage bracket

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8-16 x 7/8" cap

1шт.

33

378403R1

ELECTRICAL WIRE

BRACKET, upper link storage

1шт.

34

523861R2

HANDLE

HANDLE, leveling screw

1шт.

617939R1

PIN,5/16" x 1 1/2", Coiled

5/16" x 1-1/2", coiled

1шт.

35

375932R1

BRACKET, RH lower link lockout

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, 3/4-10 x 1-3/4" cap

2шт.

36

375877R11

ROD

SCREW ASSEMBLY, RH leveling (Unit A)

1шт.

36

375878R11

SCREW ASSEMBLY, RH leveling (Unit B)

1шт.

617937R1

PIN,1/4" x 7/8", Coiled

1шт.

37

522850R1

WASHER

WASHER, leveling screw pivot

1шт.

38

375880R1

BOLT,Eye, 2.531"

EYEBOLT, leveling screw pivot

1шт.

Q3480

WASHER

1-1/32 x 1-1/2 x 11 ga.

1шт.

39

375881R1

BUSHING

COLLAR, lock

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1/4" x 1-1/2", coiled

1шт.

40

375903R11

SUPPORT ASSEMBLY, drawbar

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, drawbar support

4шт.

41

376503R1

STUD

PIN, lower link pivot

2шт.

19606R1

NUT,5/8"-11, GB

5/8" Esna elastic stop

2шт.

272333

SEAL,3/4"-10, G5, Thk

3/4"

1шт.

103409

PIN, SPLIT (COTTER),3/16" x 1 1/2"

2шт.

575813R1

WASHER

25/32 x 1-1/4 x 11 ga.

2шт.

42

376597R1

BRACKET, restraining chain front

1шт.

20548R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

SCREW, 5/8-11 x 1-3/4" type 4 hex-hd. cap

2шт.

102639

NUT,5/8"-11, G5

2шт.

43

378441R1

STRAP

chain shackle

8шт.

44

378442R1

PIN

chain shackle strap

8шт.

108630

COTTER PIN,1/8" x 7/8"

Pin, Split (Cotter), 1/8" x 7/8"

6шт.

460047R1

CLIP, SPRING

PIN, quick attachable cotter

2шт.

45

378443R1

CHAIN, lateral limiter (2 for Unit A)

1шт.

45

375912R1

CHAIN, lateral limiter (2 for Unit B)

1шт.

46

377949R1

ADJUSTMENT SCREW,3/4" - 10 x 4.18" Overall L

SCREW, chain adjustment

2шт.

47

377948R1

BRACKET

restraining chain rear

2шт.

48

370799R2

DRAWBAR, cross

1шт.

49

375921R91

LINK ASSEMBLY, RH lower (Unit A)

1шт.

49

375924R91

LINK ASSEMBLY, RH lower (Unit B)

1шт.

50

376779R1

BRACKET, RH stabilizer

1шт.

51

376781R1

CLAMP, RH stabilizer bracket

1шт.

102637

NUT,1/2"-13, G5

4шт.

20655R1

SCREW, 1/2-13 x 5-1/2 hex hd.

4шт.

52

375905R94

LINK ASSY, upper

1шт.

375926R91

PARTS ACCESSORY, three-point hitch cross drawbar (Consists of (1) bracket 375932R1, (1) bracket 375933R1, (1) drawbar 370799R2, (4) screw 271609)

1шт.

375928R91

PARTS ACCESSORY, three-point hitch stabilizer (Consists of (1) bracket 376778R1, (1) bracket 376779R1, (1) clamp 376780R1, (1) clamp 376781R1, (8) nut 20655R1, (8) nut 102637, (2) pin 378397R1, (2) pin 520175R1, (2) rod 378012R1, (2) tube 378010R11)

1шт.
