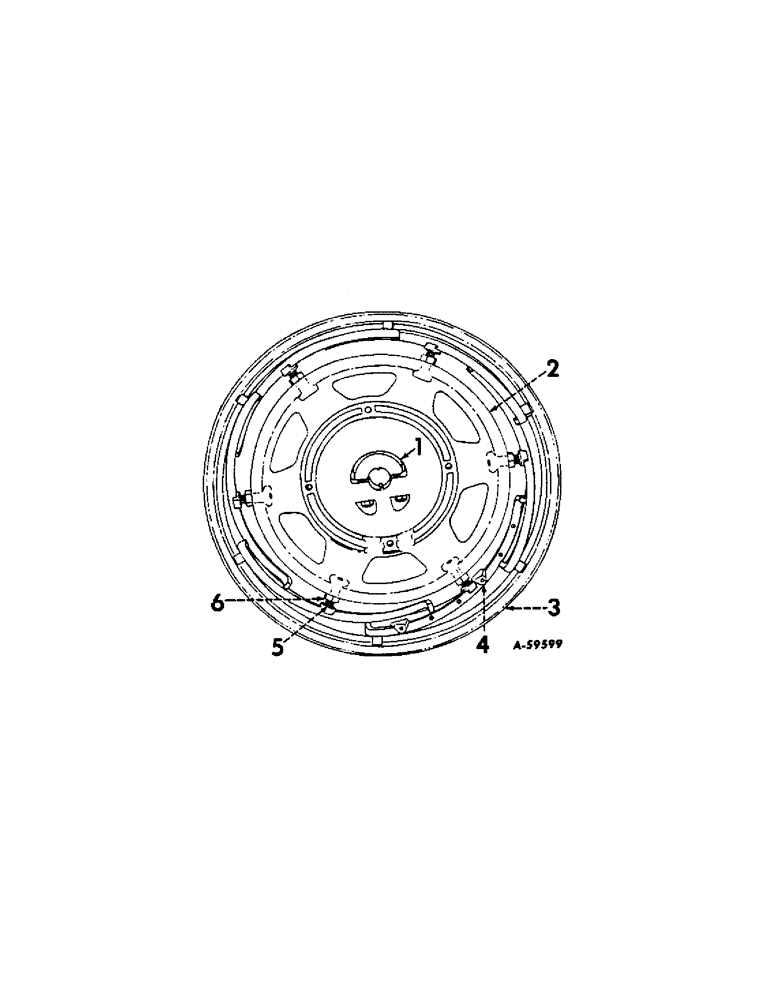

Запчасти Case IH 404 (099) - WHEELS, POWER ADJUSTED REAR WHEELS, FARMALL SERIES (11) - WHEELS

1

373499R1

CLAMP, rear wheel hub

4шт.

362618R1

CAPSCREW

SCREW, 3/4 x 3-3/4" cap WASHER, 25/32 x 1/4" x 11 ga.

8шт.

2

373498R1

WHEEL, rear

1шт.

3

370865R91

RIM, rear wheel (W-10-36 rim for 11.2/10-36 or 12.4/11-36 tire)

2шт.

4

365327R2

STOP

BODY, rear wheel stop

4шт.

365326R1

SCREW

body rear wheel stop

4шт.

5

366104R1

JACK SCREW,1" - 16 x 3.34"

rear wheel jack

12шт.

6

366105R1

WHEEL NUT,Hex, 1" - 16

rear wheel jackscrew

12шт.

366106R1

WRENCH, jackscrew (1-11/16") (illustrated with "tools")

1шт.
