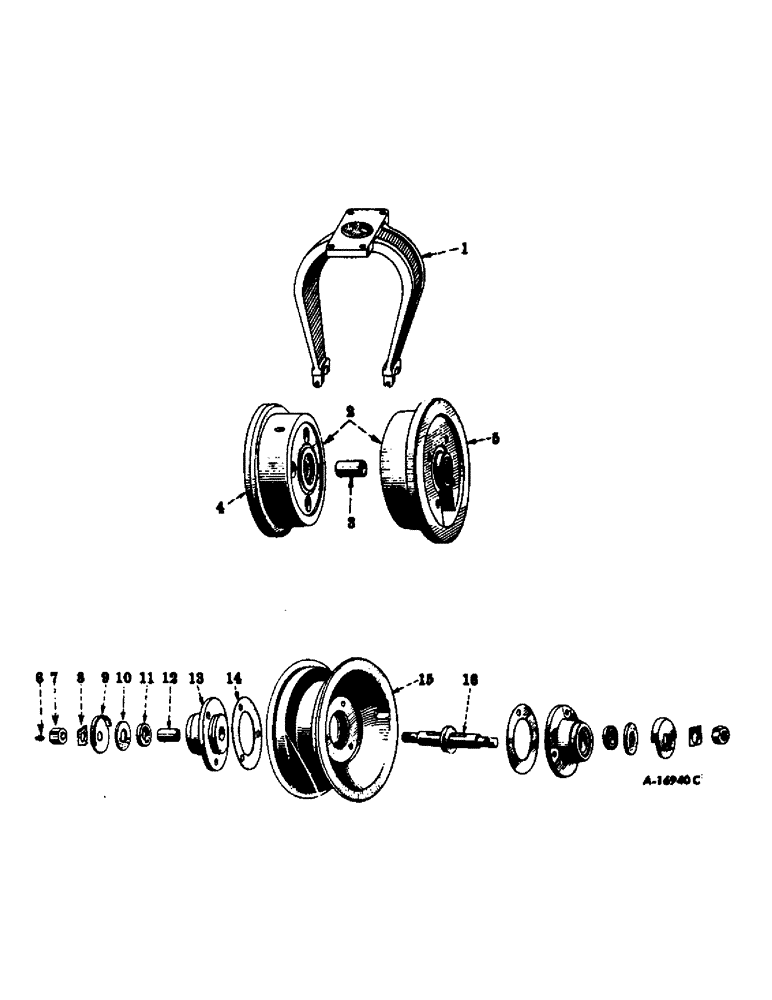

Запчасти Case IH 404 (094) - WHEELS, SINGLE FRONT WHEEL, FARMALL 404 (11) - WHEELS

1

57895D

FORK, front wheel (Unit A)

1шт.

1

52950DA

FORK, front wheel (Unit B)

1шт.

102635

NUT,3/8"-16, G5

2шт.

451018

NUT

1/2 NF type LL lock

4шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

40833DA

WHEEL ASSEMBLY, single (Unit A)

1шт.

3

359340R1

BUSHING

single front wheel (2 for Unit A)

1шт.

4

5630DAX

WHEEL w/BUSHING, 359340R1 and oil seal, 364469R91 assembly, front, male half (Unit A)

1шт.

102639

NUT,5/8"-11, G5

4шт.

17184R1

SCREW,Hex, 5/8" - 11 x 7"

5/8-11 x 7" cap

4шт.

86729275

LOCK WASHER,5/8 0.634 CST ZND

WASHER, LOCK, 5/8"

4шт.

5

5631DAX

WHEEL w/BUSHING, 359340R1 and oil seal, 364469R91 assembly, front, female half (Unit A)

1шт.

6

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

7

23742D

NUT, front axle

1шт.

8

23743D

LOCK WASHER

LOCK, front axle nut

2шт.

9

23762DX

SHIELD

ASSEMBLY, front wheel hub

2шт.

10

23760D

SEALING WASHER

WASHER, front wheel felt

2шт.

11

389445R91

OIL SEAL

OIL SEAL, front wheel bearing

2шт.

12

361311R1

BUSHING

front wheel hub (2 for Unit B)

1шт.

13

8331DAX

HUB ASSEMBLY, front wheel (Unit B)

1шт.

102637

NUT,1/2"-13, G5

3шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, 1/2-13 x 3" cap

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

14

52984D

GASKET, front wheel hub (2 for Unit B)

1шт.

15

8333D

WHEEL, single front (Unit B)

1шт.

16

23740DA

SHAFT

AXLE, front (Unit A)

1шт.

16

52949DA

AXLE, front (Unit B)

1шт.

218200

NUT,7/8"-14, G5

7/8"-14

1шт.
