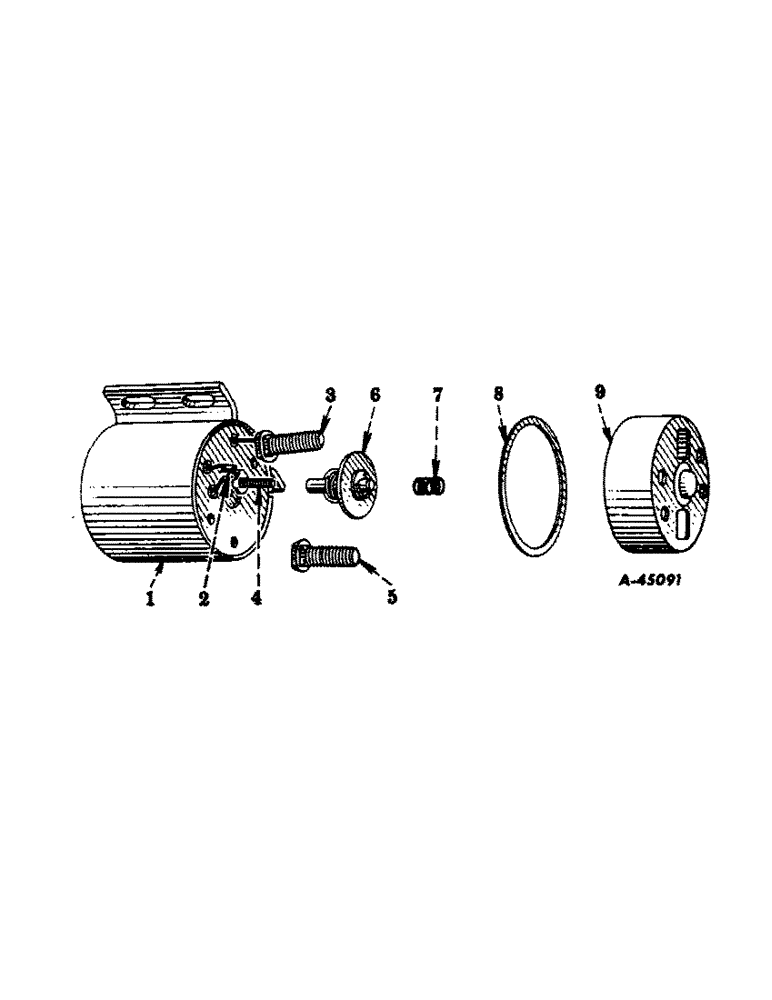

Запчасти Case IH 400-SERIES (129) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR SOLENOID SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

CASE, solenoid switch, w/coil (Mfr. 193689)

1шт.

2

CLIP, terminal (Mfr. 1926958)

1шт.

3

STUD, terminal (3/8" dia.) (Mfr. 1927344) (A only)

1шт.

(B only)

2шт.

280136

NUT,3/8"-16, G8

(1/4" thick) (A only) 3/8"-16, G8

1шт.

(B only)

2шт.

NUT, terminal stud (5/32" thick) (Mfr. 805258) (A only)

1шт.

(B only)

2шт.

120381

WASHER

lock, light, cd-pltd., 3/8"

2шт.

WASHER, insulating, terminal stud (Mfr. 1927345) (A only)

1шт.

4

STUD, terminal (no. 8 dia.) (Mfr. 1837533) (A only)

1шт.

(B only)

2шт.

120622

NUT,#8-32

(A only) #8-32

2шт.

(B only)

4шт.

WASHER, lock, terminal stud (Mfr. 1904615)

2шт.

WASHER, insulating, terminal stud (Mfr. 1926969) (A only)

1шт.

(B only)

2шт.

5

STUD, terminal (5/16" dia.) (Mfr. 1912059) (A only)

1шт.

NUT, terminal stud (Mfr. 1926640) (A only)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, (A only) 5/16"

2шт.

WASHER, insulating, terminal stud (Mfr. 1926968) (A only)

1шт.

(B only)

2шт.

6

CONTACT, solenoid, w/two terminals and spring (Mfr. 9192059)

1шт.

CONTACT, solenoid (Mfr. 1923932)

1шт.

7

SPRING, contact return (Mfr. 1853342)

1шт.

8

GASKET, solenoid switch cover (Mfr. 1930629)

1шт.

9

COVER, solenoid switch (Mfr. 1930343) (A only)

1шт.

9

COVER, solenoid switch (Mfr. 1926966) (B only)

1шт.

132903

ADAPTER

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32NF x 7/16"

2шт.

WASHER, cover attaching screw (Mfr. 1923935)

2шт.
