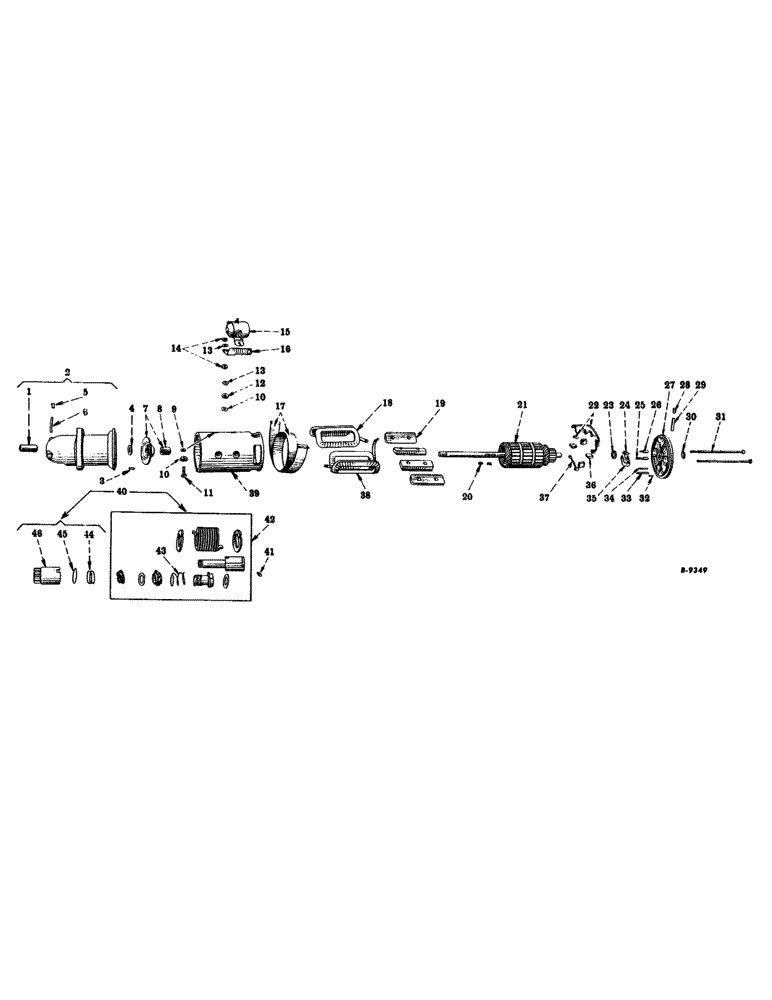

Запчасти Case IH 400-SERIES (122) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY, 12 VOLT (06) - ELECTRICAL SYSTEMS

363702R91

MOTOR, cranking, assembly (order 366667R91) (Mfr. 1108626)

1шт.

104196A2R

REMAN-STARTER

Remanufactured Starter

1шт.

104196A1C

CORE-STARTER

Return Number

1шт.

104218A2R

REMAN-STARTER

Remanufactured Starter 6 volt, Intertia

1шт.

104218A1C

CORE-STARTER

Return Number, Starter 6 volt, Inertia

1шт.

1

1872678

BUSHING

BUSHING, drive housing (not serviced separately) order ref. no. 2

1шт.

2

HOUSING, drive, assembly, composed of (1) bushing (NSS), (1) housing (NSS), (1) oiler 114998, (1) wick 802696 (Mfr. 1931830)

1шт.

3

PIN, dowel (drive end) (Mfr. 809593)

1шт.

4

WASHER, space (drive end) (1/16 x 63/64" O.D.) (Mfr. 833602)

1шт.

5

OILER, drive housing, w/cap and spring (Mfr. 114998)

1шт.

6

WICK, drive housing (Mfr. 802696)

1шт.

7

PLATE, center bearing, w/bushing (Mfr. 1915102)

1шт.

.

SCREW, center bearing plate (Mfr. 1904370)

2шт.

.

WASHER, lock, center bearing plate (Mfr. 1880781)

2шт.

8

BUSHING, center bearing (not serviced separately) order ref. no. 7

1шт.

9

WASHER, insulating, terminal stud (9/16" O.D.) (Mfr. 1904669)

2шт.

10

WASHER, insulating, terminal stud (3/4" O.D.) (Mfr. 1861076)

2шт.

11

STUD, terminal (Mfr. 826938)

1шт.

12

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (Mfr. 812622)

1шт.

13

WASHER, lock, light, cd-pltd., 3/8" (Mfr. 120381)

2шт.

14

NUT, terminal stud (Mfr. 805258)

2шт.

15

1114545

SWITCH

SWITCH, solenoid, assembly, Solenoid, 2 Big Posts & 1 Small Post, 12 Volt, composed of (1) nut 120622, (2) nut 134566, (1) switch (NSS), (2) washer 120381, (1) washer 1904615 (Mfr. 1467)

1шт.

.

NUT, hex., machine screw, cd-pltd., 8-32NC (Mfr. 120622)

1шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (solenoid switch terminal) (Mfr. 134566)

1шт.

.

SCREW, solenoid switch mounting (Mfr. 1916529)

2шт.

.

WASHER, lock, light, cd-pltd., 3/8" (solenoid switch terminal) (Mfr. 120381)

1шт.

.

WASHER, lock, terminal nut, no. 8 (Mfr. 1904615)

1шт.

15

1114549

SWITCH

Solenoid, 2 Big Posts & 2 Small Posts, 12 Volt

1шт.

16

CONNECTOR, solenoid switch (Mfr. 1866107)

1шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (solenoid switch terminal) (Mfr. 134566)

1шт.

.

WASHER, lock, light, cd-pltd., 3/8" (solenoid switch terminal)

1шт.

17

BAND, cover, w/nut, 120614 and screw, 132926 (Mfr. 1886923)

1шт.

.

NUT, hex., cd-pltd., no. 10-32NF (Mfr. 120614)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. 132926)

1шт.

18

COIL, field (upper) (Mfr. 1927145)

1шт.

19

SHOE, pole (Mfr. 1887021)

4шт.

.

SCREW, pole shoe (Mfr. 1881869)

8шт.

20

KEY, woodruff, alloy-stl., no. 6 (Mfr. 124546)

2шт.

21

ARMATURE (Mfr. 1907785)

1шт.

22

LEAD, brush and field connector (Mfr. 819362)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

.

WASHER, lock, medium, no. 10 (Mfr. 106497)

2шт.

23

WASHER, space, commutator end (Mfr. 833602)

1шт.

24

SPRING, brush (Mfr. 813521)

4шт.

25

PIN, brush holder hinge, w/insulation (Mfr. 812016)

2шт.

26

PIN, brush holder stop, w/insulation (Mfr. 812015)

2шт.

27

FRAME, commutator end, assembly, composed of (1) bushing (NSS), (1) frame (NSS), (1) oiler 114998, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug 810819, (1) wick 802694 (Mfr. 1864530)

1шт.

28

OILER, commutator, w/cap and spring (Mfr. 114998)

1шт.

29

WICK, oil, commutator end (Mfr. 802694)

1шт.

30

PLUG, expansion, commutator end frame (Mfr. 810819)

1шт.

31

BOLT, thru (Mfr. 1887034)

2шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mfr. 120380)

2шт.

32

PIN, dowel, commutator end (Mfr. 809062)

1шт.

33

PIN, brush holder hinge (Mfr. 817313)

2шт.

34

PIN, brush holder hinge (Mfr. 817314)

2шт.

35

HOLDER, brush (Mfr. 810226)

4шт.

36

BRUSH (Mfr. 1886643)

4шт.

.

SCREW, slotted-rd-hd., blued, no. 6-32NC x 1/2" (Mfr. 115903)

4шт.

.

WASHER, lock, medium, cd-pltd., no. 6 (Mfr. 131044)

4шт.

37

LEAD, brush, ground (Mfr. 813554)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/4" (Mfr. 122159)

2шт.

.

WASHER, lock, cd-pltd., no. 8 (Mfr. 121841)

2шт.

38

COIL, field (lower) (Mfr. 1927144)

1шт.

39

FRAME (not serviced separately) order cranking motor assembly

1шт.

40

DRIVE, motor, assembly, composed of (1) pinion 1927379, (1) ring 1859033, (1) screw 1912411, (1) shaft 1927267, (1) spring 1879123, (1) spring 1879124 (Mfr. 1927150)

1шт.

41

SCREW, pilot (Mfr. 1912411)

1шт.

42

SHAFT, motor dirve, w/spring (less reference no. 43) (Mfr. 1927267)

1шт.

43

SPRING, anti-drift, motor drive (Mfr. 1879124)

1шт.

44

SPRING, meshing, motor drive (Mfr. 1879123)

1шт.

45

RING, snap, motor drive (Mfr. 1859033)

1шт.

46

PINION and BARREL, motor drive (Mfr. 1927379)

1шт.
