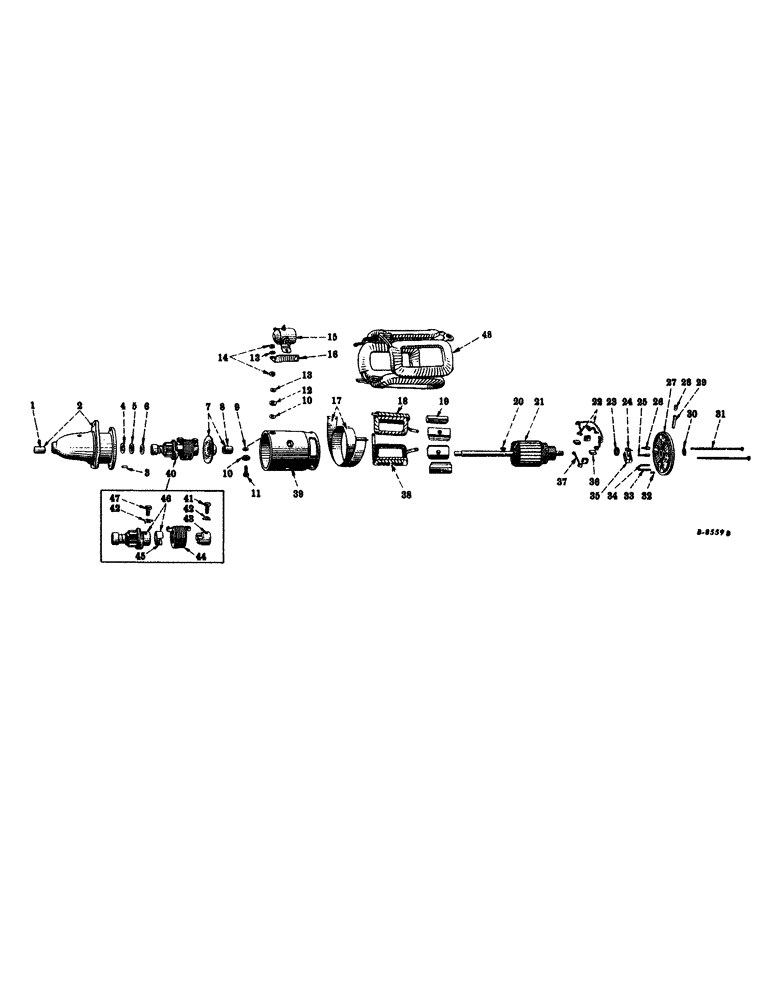

Запчасти Case IH 400-SERIES (118) - ELECTRICAL SYSTEM, CARBURETED ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

BUSHING, drive housing (not serviced separately) order ref. no. 2

1шт.

2

.

HOUSING, drive, w/bushing (Mfr. 1930639)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

2

104218A2R

REMAN-STARTER

Remanufactured Starter 6 volt, Intertia

1шт.

2

104218A1C

CORE-STARTER

Return Number, Starter 6 volt, Inertia

1шт.

2

HOUSING, drive, w/bushing (Mfr. 1940925)

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

2

104196A2R

REMAN-STARTER

Remanufactured Starter

1шт.

2

104196A1C

CORE-STARTER

Return Number

1шт.

3

PIN, dowel, drive end (Mfr. 809593)

1шт.

4

WASHER, space, drive end (1/16" x 63/64" O.D.) (Mfr. 833602)

1шт.

5

WASHER, space, drive end (1/16" x 1-1/16" O.D.) (Mfr. 809815)

1шт.

6

WASHER, space, drive end (3/32" x 1-1/16" O.D.) (Mfr. 1849774)

1шт.

7

PLATE, center bearing, w/bushing (Mfr. 1838667)

1шт.

.

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32NF x 3/8" (Mfr. 132900)

2шт.

.

WASHER, lock, medium, no. 10 (Mfr. 106497)

2шт.

8

BUSHING, center bearing (not serviced separately) order ref. no. 7

1шт.

9

WASHER, insulating, terminal stud (9/16" O.D.) (Mfr. 1904669)

2шт.

10

WASHER, insulating, terminal stud (3/4" O.D.) (Mfr. 1861076)

2шт.

11

STUD, terminal (Mfr. 1848837)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

11

STUD, terminal (Mfr. 1913695)

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

12

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (Mfr. 812622)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

13

WASHER, lock, terminal stud (Mfr. 453288)

2шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

13

WASHER, lock, terminal stud (Mfr. 120381)

4шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

14

NUT, terminal stud (Mfr. 805258)

2шт.

15

SWITCH, solenoid, assembly, composed of (1) nut 120622, (2) nut 134566, (1) switch (NSS), (2) washer 120381, (2) washer 812622, (1) washer 1904615

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

15

SWITCH, magnetic, assembly, composed of (2) nut 120622, (2) nut 134566, (1) switch (NSS), (2) washer 120381, (2) washer 1904615

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

.

NUT, hex., machine screw, cd-pltd., no. 8-32NC (Mfr. 120622)

2шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (solenoid switch terminal) (Mfr. 134566)

1шт.

.

SCREW, solenoid switch mounting (Mfr. 1916529)

2шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mfr. 120380)

2шт.

.

WASHER, lock, light, cd-pltd., 3/8" (solenoid switch terminal) (Mfr. 120381)

1шт.

.

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (solenoid switch terminal) (Mfr. 812622)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

.

WASHER, lock, terminal nut, no. 8 (Mfr. 1904615)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

16

CONNECTOR, solenoid switch (Mfr. 1866107)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

16

CONNECTOR, solenoid switch (Mfr. 1903905)

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (solenoid switch terminal) (Mfr. 134566)

1шт.

.

WASHER, lock, light, cd-pltd., 3/8" (solenoid switch terminal) (Mfr. 120381)

1шт.

.

WASHER, plain, 3/8" I.D. x 11/16" O.D. x 1/32" (solenoid switch terminal) (Mfr. 812622)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

17

BAND, cover, w/nut, 120614 and screw, 132926 (Mfr. 1886923)

1шт.

.

NUT, hex., cd-pltd., no. 10-32NF (Mfr. 120614)

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4" (Mfr. 132926)

1шт.

18

COIL, field (upper) (Mfr. 819688)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

19

SHOE, pole (Mfr. 810601)

4шт.

.

SCREW, pole shoe (Mfr. 1881869)

4шт.

20

KEY, woodruff, alloy-stl., no. 6 (Mfr. 124546)

1шт.

21

ARMATURE (Mfr. 818002)

1шт.

22

LEAD, brush and field connector (Mfr. 819362

2шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

22

LEAD, brush and field connector (Mfr. 1929901)

2шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 10-32NF x 1/4" (Mfr. 132892)

2шт.

.

WASHER, lock, medium, no. 10 (Mfr. 106497)

2шт.

23

WASHER, space, commutator end (Mfr. 833602)

1шт.

24

SPRING, brush (Mfr. 813521)

4шт.

25

PIN, brush holder hinge, w/insulation (Mfr. 812016)

2шт.

26

PIN, brush holder stop w/insulation (Mfr. 812015)

2шт.

27

FRAME, commutator end, assembly, composed of (1) frame (NSS), (1) oiler 114493, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug 1865182, (1) wick 802694 (Mfr. 1881627)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

27

FRAME, commutator end, assembly, composed of (1) frame (NSS), (1) oiler 114498, (1) pin 809062, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) plug 1865182, (1) wick 802694 (Mfr. 190580)

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

28

OILER, commutator, w/cap and spring (Mfr. 114498)

1шт.

29

WICK, oil, commutator end (Mfr. 802694)

1шт.

30

PLUG, expansion, commutator end frame (Mfr. 1865182)

1шт.

31

BOLT, thru (Mfr. 809053)

2шт.

.

WASHER, lock, medium, cd-pltd., 1/4" (Mf. 120380)

2шт.

32

PIN, dowel, commutator end (Mfr. 809062)

1шт.

33

PIN, brush holder hinge (Mfr. 817313)

2шт.

34

PIN, brush holder stop (Mfr. 817314)

2шт.

35

HOLDER, brush (Mfr. 810226)

4шт.

36

BRUSH (Mfr. 811553)

4шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

36

BRUSH (Mfr. 828448)

4шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.

.

SCREW, slotted-rh-hd., blued, no. 6-32NC x 1/2" (Mfr. 115903)

4шт.

37

LEAD, brush ground (Mfr. 813554)

2шт.

.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 1/4" (Mfr. 122159)

2шт.

.

WASHER, lock, cd-pltd., no. 8 (Mfr. 121841)

2шт.

38

COIL, field (lower) (Mfr. 819689)

1шт.

P/N 361982R91 (Mfr. 1108038), motor, assembly (6 volt) Farmall 400 series, Farmall 450 series, 501 to 11083.

1шт.

39

FRAME (not serviced separately) order cranking motor assembly

1шт.

40

DRIVE, motor, assembly, composed of (1) gear and shaft 1855629, (1) head 1848530, (1) screw 1850810, (1) screw 1850811, (1) spring 1860639, (2) washer 805057 (Mfr. 1868804)

1шт.

41

SCREW, motor drive spring (Mfr. 1850811)

1шт.

42

WASHER, lock, drive spring screw (Mfr. 805057)

2шт.

43

HEAD, motor drive (Mfr. 1848530)

1шт.

44

SPRING, motor drive (Mfr. 1860639)

1шт.

45

SLEEVE, motor drive (Mfr. 1849782)

1шт.

46

GEAR and SHAFT, motor drive, w/sleeve, 1849782 and spring (Mfr. 1855629)

1шт.

47

SCREW, motor drive spring (Mfr. 1850810)

1шт.

48

COIL SET, field (Mfr. 825210)

1шт.

P/N 368570R91 (Mfr. 1108173), motor, cranking, assembly (12 volt) Farmall 450 series, 11084 up.

1шт.
