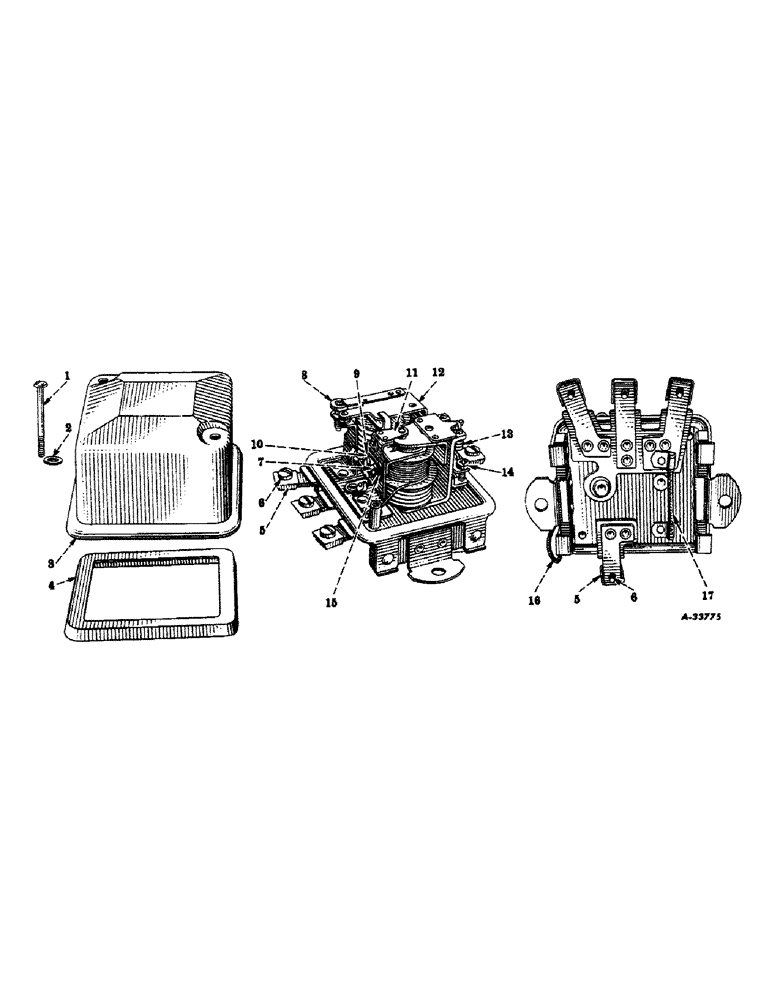

Запчасти Case IH 400-SERIES (117) - ELECTRICAL SYSTEM, CARBURETED ENGINE, VOLTAGE REGULATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

360898R91

REGULATOR

voltage (6 volt) (Mfr. 1118780)

1шт.

360899R91

REGULATOR

voltage (12 volt) (Mfr. 1118779)

1шт.

1

SCREW, cover attaching (Mfr. 1927982)

2шт.

2

WASHER, insulating cover attaching screw (Mfr. 1922996)

2шт.

3

COVER (Mfr. 1927980)

1шт.

4

GASKET, cover (Mfr. 192781)

1шт.

5

CLAMP, terminal (Mfr. 1868137)

4шт.

6

SCREW, terminal (Mfr. 1864099)

4шт.

7

SCREW, regulator contact attaching (Mfr. 1878516)

2шт.

8

SCREW, adjusting relay armature (Mfr. 1912159)

1шт.

9

WASHER, insulating regulator contact attaching screw (Mfr. 1878507)

2шт.

10

WASHER, lock, regulator contact attaching screw (Mfr. 1878505)

1шт.

11

CONTACT and SUPPORT, regulator (Mfr. 1878517)

1шт.

12

ARMATURE, relay (Mfr. 1878780)

1шт.

SCREW, relay armature (Mfr. 454431)

2шт.

WASHER, lock, relay armature attaching screw (Mfr. 1904377)

2шт.

13

SPRING, regulator armature, (Mfr. 1912176)

1шт.

14

SCREW, regulator armature adjusting (Mfr. 1922408)

1шт.

15

INSULATOR, regulator contact attaching screw (Mfr. 1922599)

1шт.

16

LEAD, assembly, ground (Mfr. 1927975)

1шт.

17

RESISTOR, "F" terminal to ground (6 volt) (Mfr. 1910183)

1шт.

17

RESISTOR, "F" terminal to ground (12 volt) (Mfr. 1910174)

1шт.
