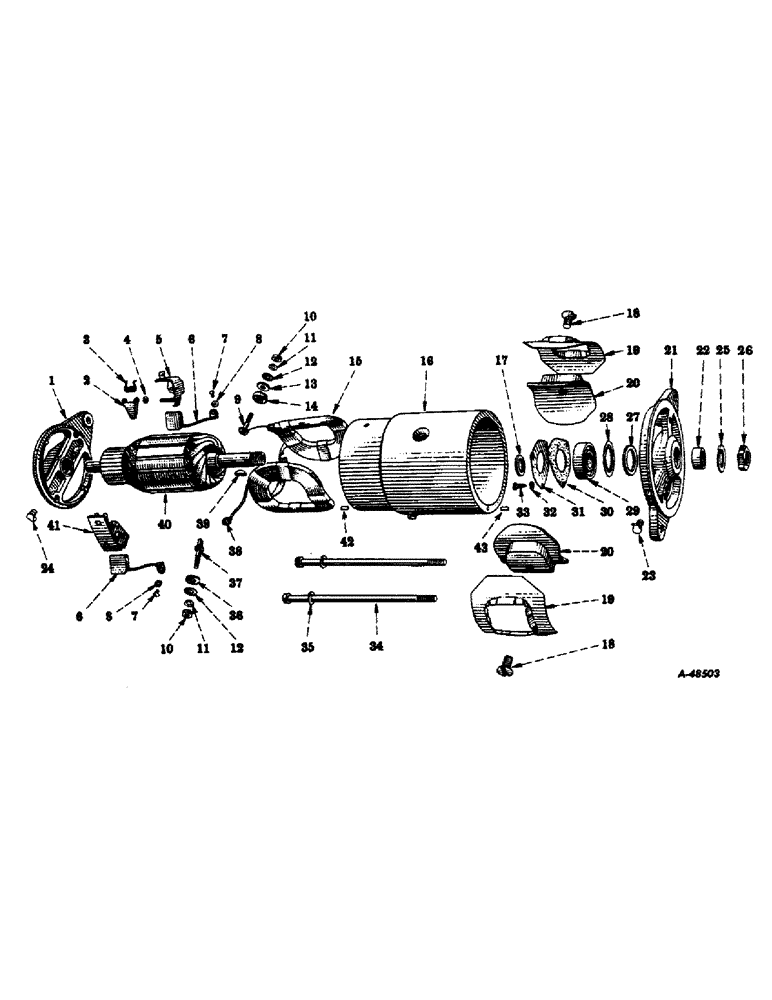

Запчасти Case IH 400-SERIES (116A) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

282653R91

GENERATOR, assembly (12 volt) Farmall 450 Series, 11084 up (Mfr. 1100305)

1шт.

103820A1R

REMAN-GENERATOR

Generator

1шт.

103820A1C

CORE-GENERATOR

Return Number

1шт.

1

FRAME, commutator end w/oiler 1880635, pin, 809062 and wick, 804080 (Mfr. 1927451)

1шт.

2

ARM, brush (Mfr. 187183)

2шт.

3

SPRING, brush (Mfr. 1916324)

2шт.

4

WASHER, spacer brush arm (Mfr. 1904368)

2шт.

5

HOLDER, ground brush (Mfr. 1922288)

1шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

1шт.

.

SCREW, mach., rd-hd., cd-pltd., no. 12-24NC x 5/8" (Mfr. 132979)

1шт.

.

WASHER, lock, cd-pltd., no. 12 (Mfr. 131184)

1шт.

6

BRUSH (Mfr. 1923295)

2шт.

7

SCREW, slt-rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

2шт.

8

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

2шт.

9

STUD, field terminal (Mfr. 1921860)

1шт.

10

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

4шт.

11

WASHER, lock, field terminal stud (Mfr. 1904661)

4шт.

12

WASHER, terminal stud (Mfr. 1881409)

2шт.

13

WASHER, insulating, terminal stud (Mfr. 1858753)

1шт.

14

BUSHING, field terminal (Mfr. 1885090)

1шт.

15

COIL SET, field (Mfr. 1923625)

1шт.

16

(Not serviced separately)

1шт.

17

WASHER, space, drive end (Mfr. 809945)

1шт.

18

SCREW, pole shoe (Mfr. 1843646)

2шт.

19

INSULATOR, field coil (Mfr. 1914491)

2шт.

20

SHOE, pole (Mfr. 1914618)

2шт.

21

FRAME, drive end, w/oiler, 1880641 (Mfr. 1910404)

1шт.

22

COLLAR, space, drive end (Mfr. 1858603)

1шт.

23

OILER, drive end bearing, w/cap and spring (Mfr. 1880641)

1шт.

.

WICK, oiler (Mfr. 823551)

1шт.

24

OILER, commutator end, w/cap and spring (Mfr. 1880635)

1шт.

.

WICK, oiler (Mfr. 804080)

1шт.

25

WASHER, lock, armature shaft nut (Mfr. 804000)

1шт.

26

NUT, armature shaft (Mfr. 806915)

1шт.

27

WASHER, felt, drive end (Mfr. 809961)

1шт.

28

RETAINER, drive end, felt washer (Mfr. 819104)

1шт.

29

BEARING BALL (drive end) (Mfr. 907503)

1шт.

30

GASKET, ball bearing retainer plate (Mfr. 1912008)

1шт.

31

PLATE, ball bearing retainer (Mfr. 1911263)

1шт.

32

WASHER, lock, retainer plate screw (Mfr. 1880781)

3шт.

33

SCREW, retainer plate (Mfr. 1904370)

3шт.

34

BOLT, thru (Mfr. 815018)

2шт.

35

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. 120638)

2шт.

36

WASHER, insulating, terminal stud (Mfr. 1921362)

1шт.

37

POLE, armature terminal (includes lead, stud, 1921860, and terminal) (Mfr. 1921369)

1шт.

38

CLIP, terminal to brush (Mfr. 200382)

1шт.

39

KEY, woodruff, ni-stl., no. 5 (Mfr. 124545

1шт.

40

ARMATURE (Mfr. 817807)

1шт.

.

CUP, felt retainer, commutator end (Mfr. 1927448)

1шт.

.

WASHER, felt, commutator end (Mfr. 1927447)

1шт.

41

HOLDER, brush (Mfr. 1922289)

1шт.

.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

1шт.

.

SCREW, mach., rd-hd., cd-pltd., no. 12-24NC x 5/8" (Mfr. (132979)

1шт.

.

WASHER, lock, cd-pltd., no. 12) (Mfr. 131184)

1шт.

42

PIN, dowel, commutator end (Mfr. 809062)

1шт.

43

PIN, dowel, drive end (Mfr. 809593)

1шт.
