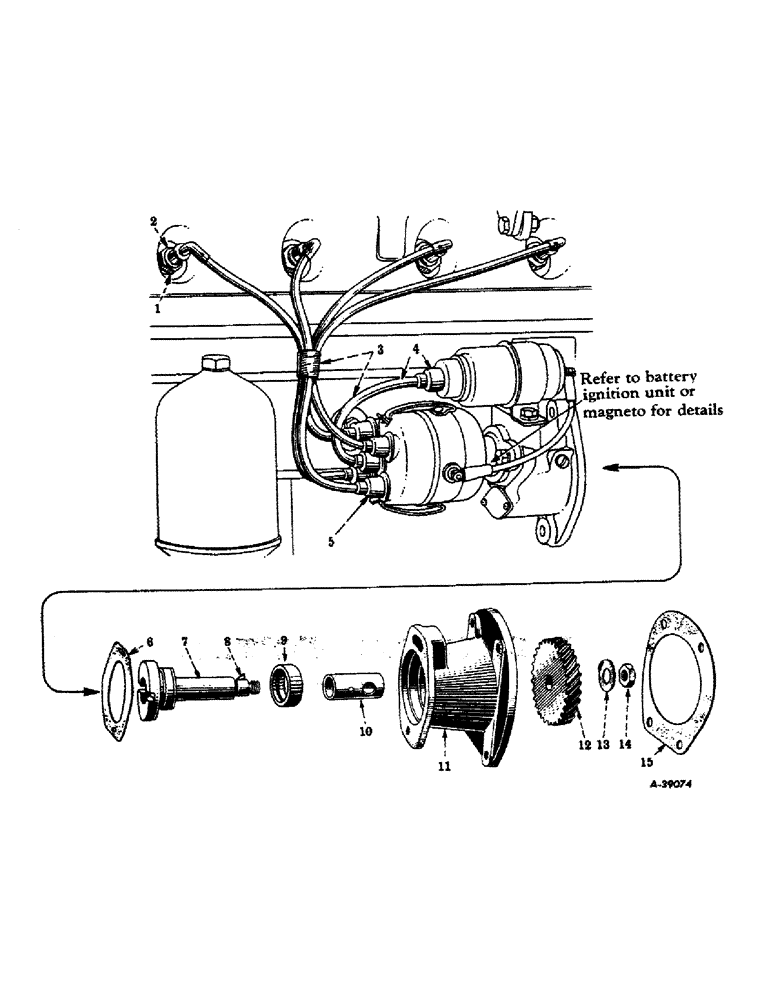

Запчасти Case IH 400-SERIES (098) - ELECTRICAL SYSTEM-CARBURETED ENGINE, SPARK PLUGS, CABLES & IGNITION UNIT DRIVE PARTS (06) - ELECTRICAL SYSTEMS

1

37762H

GASKET

spark plug

4шт.

2

360942R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (champion no. 8 com. 064k), normal service

4шт.

2

353982R91

PLUG, spark, w/gasket, 37762H (AC 85-S com.), normal service

4шт.

2

359276R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (auto-lite BT-8), normal service

4шт.

2

360943R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (champion no. 10 com.), mild service

4шт.

2

353985R91

PLUG, spark, w/gasket, 37762H (AC 88-S com.), mild service

4шт.

2

359277R91

PLUG, spark, w/gasket, 37762H (auto-lite BT-10), mild service

4шт.

2

365479R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (champion D-21), moderate service

4шт.

2

365977R91

PLUG, spark, w/gasket, 377624 (AC-88), moderate service

4шт.

2

365979R91

PLUG

spark, w/gasket, 377624 (auto-lite BT-9), moderate service

4шт.

2

361688R91

SPARK ARRESTER

PLUG, spark, w/gasket, 37762H (champion no. 5 com. 64D), severe service

4шт.

2

353983R91

PLUG, spark, w/gasket, 37762H (AC 83-S com.), severe service

4шт.

2

359275R91

PLUG, spark, w/gasket, 37762H (auto-lite BT-4), severe service

4шт.

2

361686R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (champion no. 4 com. -64), liquefied petroleum gas or extremely severe service

4шт.

2

353986R91

SPARK PLUG

PLUG, spark, w/gasket, 37762H (AC 81-S com.), liquefied petroleum gas or extremely severe service

4шт.

2

359274R91

PLUG, spark, w/gasket, 37762H (auto-lite BT-3), liquefied petroleum gas or extremely severe service

4шт.

3

362439R91

PACKAGE

service, ignition cable (consists of spark plug cable, assembly with cable, 356686R92 and four nipples, 251553R1), liquefied petroleum gas or extremely severe service

1шт.

4

356686R92

CABLE

secondary, coil to distributor, w/two nipples, 251553R1, spark plug - liquefied petroleum gas or extremely severe service

1шт.

5

251553R1

BOOT

NIPPLE, spark plug cable, liquefied petroleum gas or extremely severe service

4шт.

6

55780DD

GASKET

ignition unit flange, spark-plug liquefied petroleum gas or extremely severe service

1шт.

7

352079R1

SHAFT

ignition unit drive (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.

8

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Ignition unit drive gear, Spark-plug liquefied petroleum gas or extremely severe service #3, 1/8" x 1/2", HT

1шт.

9

352080R91

SEAL

OIL SEAL, ignition unit drive shaft (optional with 358839R91) (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.

9

358839R91

SEAL

OIL SEAL, ignition unit drive shaft (optional with 352080R91) (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.

10

24473DA

BUSHING

ignition unit shaft (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.

11

354951R11

BRACKET, ignition unit drive, w/bushing, 24473DA and oil seal, 352080R91 (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8", spark-plug liquefied petroleum gas or extremely severe service

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, , Spark-plug Liquefied Petroleum Gas or Extremely severe service 3/8"

4шт.

12

48819D

GEAR

ignition unit or hydraulic pump drive gear, spark-plug liquefied petroleum gas or extremely severe service

1шт.

13

45003D

WASHER

LOCK, ignition unit or hydraulic pump drive gear, spark-plug liquefied petroleum gas or extremely severe service

1шт.

14

114498

JAM NUT,Jam, 5/8"-18, G5

(Ignition unit or hydraulic pump drive gear), Spark-plug liquefied petroleum gas or Extremely severe service Jam, 5/8"-18, G5

1шт.

15

354952R2

GASKET

ignition unit bracket (see note), spark-plug liquefied petroleum gas or extremely severe service

1шт.
