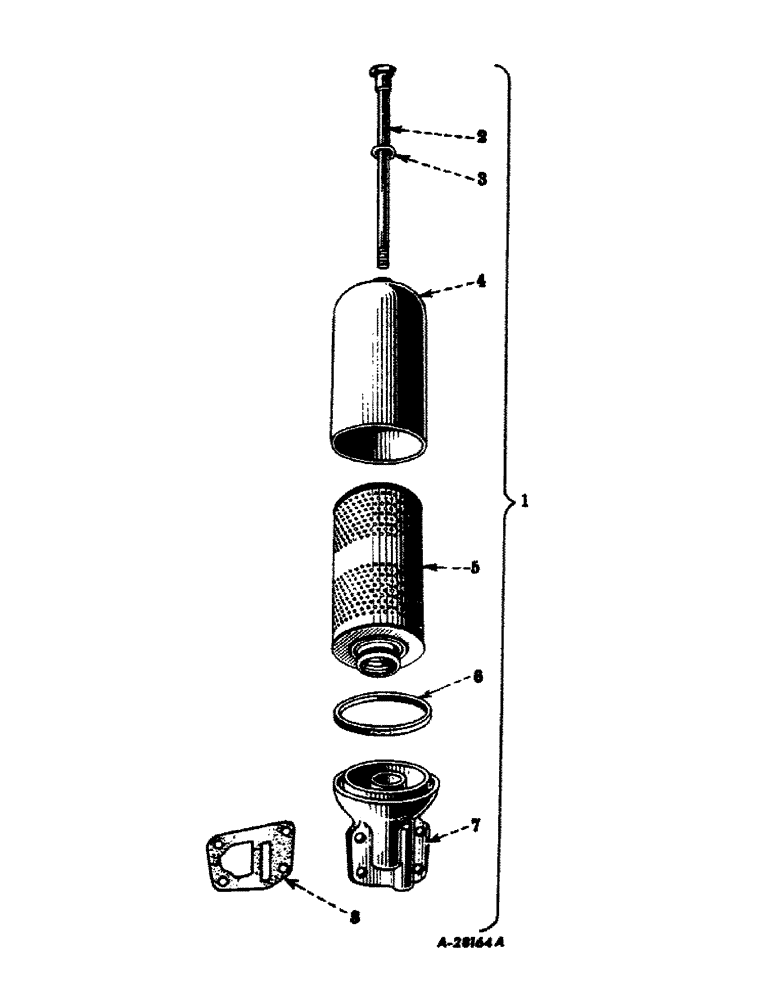

Запчасти Case IH 400-SERIES (030) - CARBURETED ENGINE, LUBRICATING OIL FILTER (01) - ENGINE

1

46689DE

FILTER, oil, assembly (less reference no. 8)

1шт.

2

43418DA

BOLT

retaining, oil filter case

1шт.

3

13727D

GASKET

GASKET, oil filter case retaining bolt

1шт.

4

43417D

CASE, oil filter

1шт.

5

360431R91

ELEMENT

oil filter (radial fin type, normal duty) (optional with 355010R91)

1шт.

5

355010R91

FILTER, ENGINE OIL

ELEMENT, oil filter (radial fin type, heavy duty) (optional with 360431R91)

1шт.

6

13728D

GASKET

oil filter case

1шт.

7

6253DBX

BASE, oil filter, w/two plugs, 103866

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

pipe, sq-hd., C.I. 1/4" (optional with 103878)

2шт.

103878

PLUG

pipe, sq-hd., 1/4" (optional with 103866)

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

8

45447D

GASKET

oil filter base

1шт.
