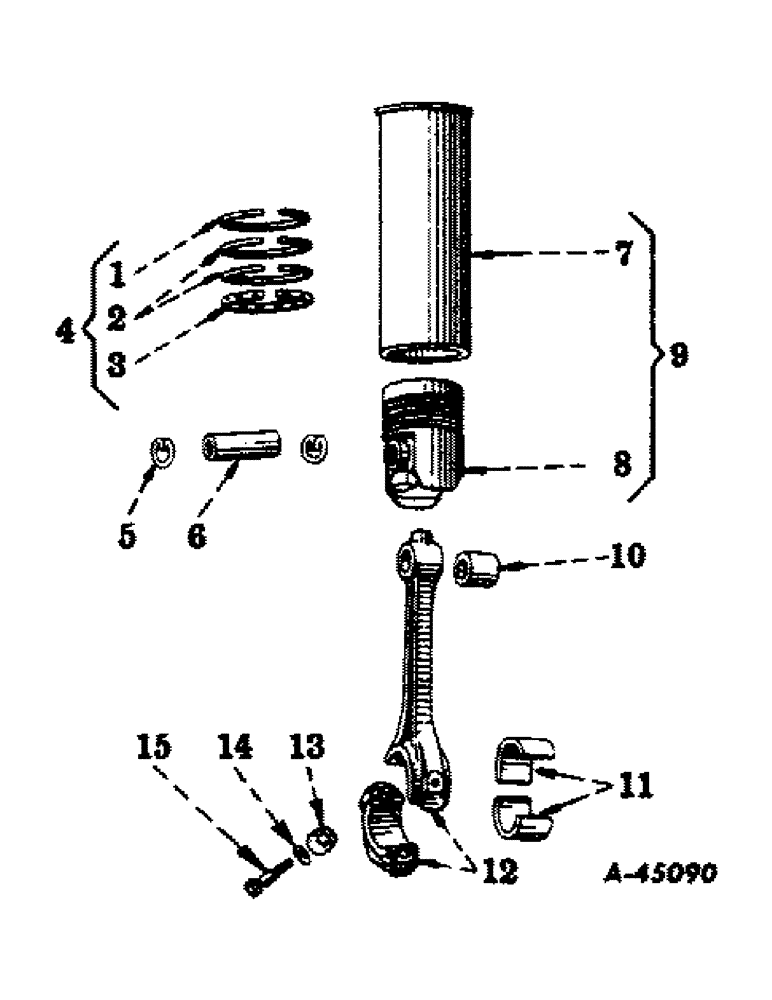

Запчасти Case IH 400-SERIES (026) - CARBURETED ENGINE, CONNECTING RODS AND SLEEVE SETS, FOR C-281 ENGINES (01) - ENGINE

1

366491R1

RING, compression, piston (top or first groove) (gasoline, distillate or liquefied petroleum gas)

4шт.

1

366510R1

RING, compression, piston (top or first groove) (kerosene)

4шт.

2

366489R1

RING

compression, piston (second or third groove)

8шт.

3

366492R91

RING, oil, piston (fourth groove)

4шт.

4

366493R91

PISTON RING SET

RING, set, piston (gasoline, distillate or liquefied petroleum gas) (consists of twelve compression and four oil control rings) (perfect circle 2-in-1 chrome)

1шт.

4

366511R91

RING, set, piston (kerosene) (consists of twelve compression and four oil control rings) (perfect circle 2-in-1 chrome)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

5

364930R1

RING

piston pin retainer

8шт.

6

364928R1

PIN

piston (standard)

4шт.

6

364929R1

PIN

piston (.005" oversize)

4шт.

7

SLEEVE, cylinder (order cylinder sleeve, w/piston and rings, assembly for proper fuel and altitude)

4шт.

8

PISTON, (order cylinder sleeve, w/piston and rings, assembly, for proper fuel and altitude)

4шт.

9

366476R91

PISTON ASSY.

SLEEVE, set, crankcase (consists of four sleeves, w/pistons and rings, 366477R91) (gasoline standard altitude or liquefied petroleum gas)

1шт.

9

366477R91

PISTON

SLEEVE, cylinder, w/piston and rings, assembly (gasoline standard altitude or liquefied petroleum gas), composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve (NSS)

4шт.

9

366513R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366520R91) (gasoline, high altitude)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366520R91

SLEEVE, cylinder, w/piston and rings, assembly (gasoline, high altitude) composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve (NSS)

4шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366495R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366496R91) (distillate or standard altitude)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366496R91

SLEEVE, cylinder w/pistons and rings, assembly (distillate, standard altitude) composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve (NSS)

4шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366515R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366526R91) (distillate high altitude)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366526R91

SLEEVE, cylinder, w/piston and rings, assembly (distillate, high altitude) composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366491R1, (1) ring 366492R91, (1) sleeve (NSS)

4шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366502R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366503R91) (kerosene, standard altitude)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366503R91

SLEEVE, cylinder, w/piston and rings, assembly (kerosene, standard altitude) composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366492R91, (1) ring 366510R1, (1) sleeve (NSS)

4шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366517R91

SLEEVE SET, crankcase (consists of four sleeves, w/pistons and rings, 366532R91) (kerosene, high altitude)

1шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

9

366532R91

SLEEVE, cylinder, w/piston and rings, assembly (kerosene, high altitude) composed of (1) pin 364928R1, (1) piston (NSS), (2) ring 364930R1, (2) ring 366489R1, (1) ring 366492R91, (1) ring 366510R1, (1) sleeve (NSS)

4шт.

Special feature on the tractor identified by the suffix letter code section of this catalog.

1шт.

10

364921R1

BUSHING,25.02mm ID x 28.07mm OD x 38.73mm L

piston pin

4шт.

11

356957R11

BEARING ASSY,64.78mm ID x 68.61mm OD x 43.92mm W

connecting rod (2 halves) (standard)

4шт.

11

356959R11

BEARING LINER

BEARING, connecting rod (2 halves) (.002" undersize)

4шт.

11

360203R11

BEARING, connecting rod (2 halves) (.003" undersize)

4шт.

11

356958R11

BEARING ASSY

connecting rod (2 halves) (.030" undersize)

4шт.

11

356960R11

BEARING, connecting rod (2 halves) (.032" undersize)

4шт.

11

367883R91

KIT

BEARING SET, connecting rod (standard) (consists of four bearings 356957R11)

1шт.

12

364920R11

ROD, connecting, assembly, composed of (2) bolt 63120D, (1) bushing 364921R1 (NSS), (1) cap 45739DB (NSS), (2) lock 47496DB, (1) rod 364920R1, (2) washer 63116D

4шт.

13

47496DB

LOCK

connecting rod bolt

8шт.

14

63116D

WASHER

connecting rod bolt

8шт.

15

63120D

BOLT,Hex, 7/16" - 20 x 2 5/32"

connecting rod

8шт.
