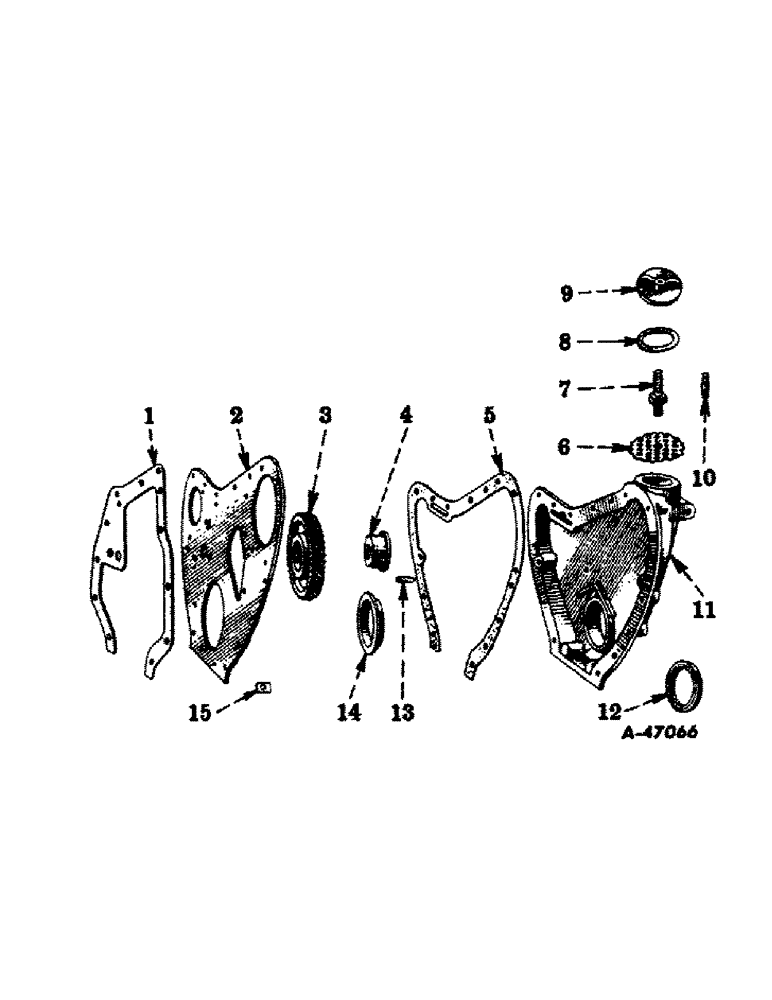

Запчасти Case IH 400-SERIES (018) - CARBURETED ENGINE, CRANKCASE FRONT COVER AND IDLER GEAR (01) - ENGINE

1

46181DB

GASKET

crankcase front plate

1шт.

2

354953R11

PLATE, crankcase, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

3

6362DX

GEAR

idler, w/bushing (41 teeth)

1шт.

4

6239DX

SHAFT, idler gear, w/pin

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

354956R2

GASKET

crankcase front cover

1шт.

6

363232R1

SCREEN, oil filler (will work for 55627D)

1шт.

7

363231R1

STUD, oil filler cap (used with cover, 354955R3 (NSS), and cover, 355121R2 (NSS)) C-264, 152045 up, C-281, 501 up

1шт.

8

364420R1

GASKET, oil filler cap

1шт.

9

4819DX

CAP

oil filler, w/gasket, 364420R1

1шт.

10

24517D

STUD, oil filler cap (used with cover, 354955R2 (NSS) and cover, 355121R1 (NSS)) C-264, Serial Range: 136834-152044

1шт.

102635

NUT,3/8"-16, G5

1шт.

11

354955R31

COVER, crankcase, front, assembly, composed of (1) cover 354955R3 (NSS), (1) deflector 46129D, (1) oil seal 53872D, (1) pointer 46258D, (1) screw 363232R1, (1) stud 363231R1

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

179842

SPACER

cap, hex-hd., 3/8-16NC x 1-3/8"

7шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

11

355121R21

COVER, crankcase, front, assembly (for tractors equipped with service meter attachment) composed of (1) cover 355121R2 (NSS), (1) deflector 46129D, (1) oil seal 53872D, (1) pointer 46258D, (1) screen 363232R1, (1) stud 363231R1

1шт.

12

53872D

OIL SEAL

OIL SEAL, crankshaft, front

1шт.

13

46258D

POINTER, timing

1шт.

14

46129D

DEFLECTOR

oil, crankshaft, front

1шт.

15

354489R1

LOCK

crankcase front plate screw

4шт.
