Запчасти Case IH 400-SERIES (414) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FOR TRACTORS EQUIPPED W/PNEUMATIC TIRE FRONT WHEELS Attachments

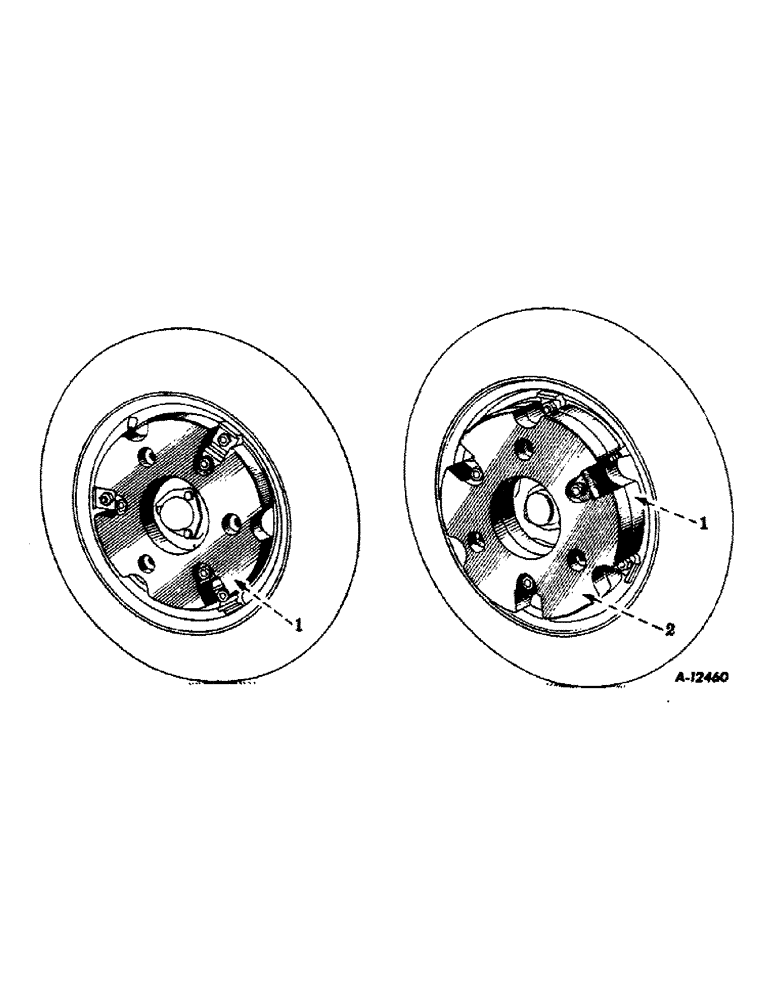

Схема запчастей Case IH 400-SERIES - (414) - ATTACHMENTS, FRONT WHEEL WEIGHTS, SPECIAL, FOR TRACTORS EQUIPPED W/PNEUMATIC TIRE FRONT WHEELS Attachments
1
1
2

Артикул

Название

Примечание

Количество

1

6788D

WEIGHT, front wheel (first) (approx. 42-1/2 lbs.) (A only)

2шт.

13370R1

BOLT, machine, sq-hd., 1/2-13NC x 2-3/8" (A only)

6шт.

102637

NUT,1/2"-13, G5

(A only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

6шт.

1

9042D

WEIGHT, front wheel (first) (approx. 73 lbs.) (B only)

2шт.

13359R1

BOLT, machine, sq-hd., 1/2-13NC x 2-1/4" (B only)

6шт.

102637

NUT,1/2"-13, G5

(B only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B only) 1/2"

6шт.

2

6788D

WEIGHT, front wheel (second) (approx. 42-1/2 lbs.) (C only)

2шт.

13416R1

BOLT

machine, sq-hd., 1/2-13NC x 3" (C only)

6шт.

102637

NUT,1/2"-13, G5

(C only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (C only) 1/2"

6шт.

2

9042D

WEIGHT, front wheel (second) (approx. 73 lbs.) (D only)

2шт.

13433R1

BOLT, machine, sq-hd., 1/2-13NC x 3-1/4" (D only)

6шт.

102637

NUT,1/2"-13, G5

(D only) 1/2"-13, G5

6шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (D only) 1/2"

6шт.

366025R91

BOLT (MACHINE)

PACKAGE, hardware, front wheel weight mounting (first set) (consists of six bolts, 13370R1, six nuts, 102637 and six washers, 103323) (A only)

1шт.

366027R91

PACKAGE, hardware, front wheel weight mounting (first set) (consists of six bolts, 13359R1, six nuts, 102637 and six washers, 103323) (B only)

1шт.

366026R91

BOLT (MACHINE)

PACKAGE, hardware, front wheel weight mounting (second set) (consists of six bolts, 13416R1, six nuts, 102637 and six washers, 103323) (C only)

1шт.

366028R91

PACKAGE, hardware, front wheel weight mounting (second set) (consists of six bolts, 13433R1, six nuts, 102637 and six washers, 103323) (D only)

1шт.

Выбрано товаров: 20
