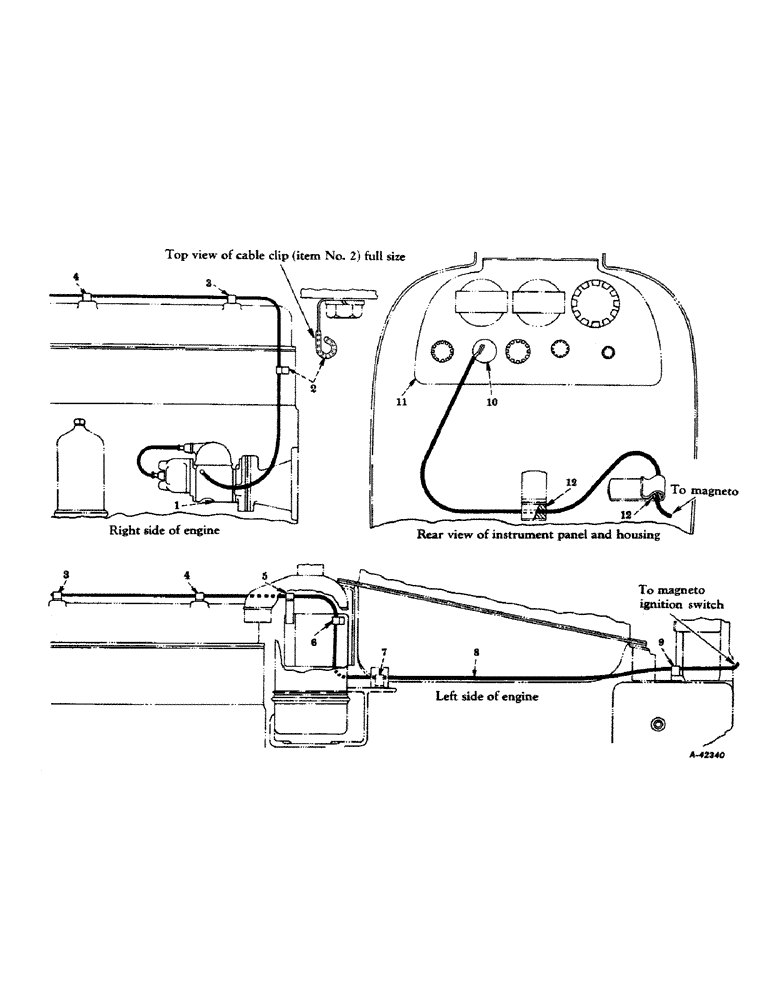

Запчасти Case IH 400-SERIES (160) - ELECTRICAL SYSTEM, CARBURETED ENGINE, MAGNETO IGNITION SYSTEM (06) - ELECTRICAL SYSTEMS

1

363850R91

MAGNETO, assembly (for components see list of parts under detail of "Magneto")

1шт.

2

362667R1

CLIP

cable (on cylinder head)

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

362667R1

CLIP

cable (on front valve cover stud)

1шт.

4

362667R1

CLIP

cable (on rear valve cover stud)

1шт.

5

362667R1

CLIP

cable (on air cleaner mounting bracket front, upper L.H. mounting bolt)

1шт.

6

364408R1

CLIP, cable (on air cleaner mounting bracket rear, upper L.H. mounting bolt)

1шт.

7

362667R1

CLIP

cable (on bottom hood sheet center bracket mounting bolt, L.H. side)

1шт.

109084

NUT,1/4"-20, G5

1шт.

440-12510

SCREW,Cross Pan Hd, 1/4"-20 x 5/8"

machine, slotted-rd-hd., 1/4-20NC x 5/8"

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

8

364259R91

CABLE, magneto to magneto ignition switch

1шт.

132100

SEAL KIT,Slotted Fil Hd, #10-32 x 5/16"

SCREW, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/16" (in magneto short circuiting terminal)

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, (In magneto short circuiting terminal) #10

1шт.

9

362667R1

CLIP

cable (on universal control valve column front R.H. mounting bolt)

1шт.

10

54207DB

SWITCH

magneto ignition, assembly (for components see list of parts under detail of "Magneto Ignition Switch")

1шт.

59109D

SPACER, ignition switch

1шт.

11

PANEL, instrument (refer to engine controls and instruments)

1шт.

12

52728D

CUSHION, cable clip

2шт.
