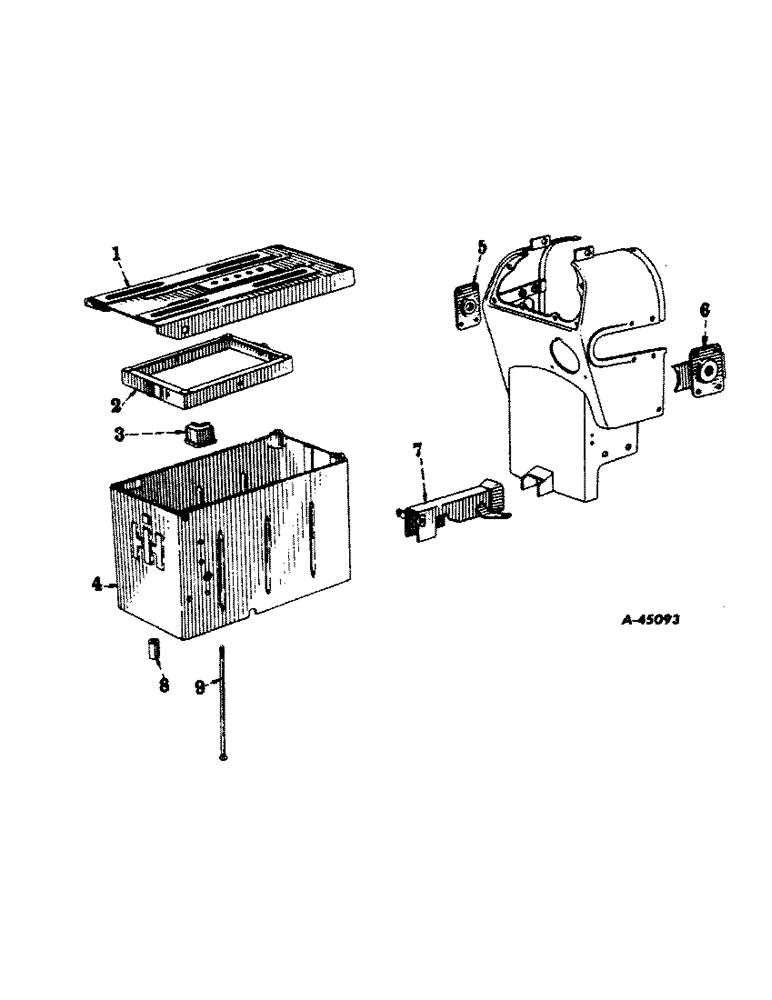

Запчасти Case IH 400-SERIES (137) - ELECTRICAL SYSTEM-CARBURETED ENGINE, BATTERY BOX (06) - ELECTRICAL SYSTEMS

1

358275R11

COVER, battery box

1шт.

13252R1

SCREW,1/2" - 13 x 7/8"

BOLT, machine, sq-hd., 1/2-13NC x 7/8"

2шт.

102637

NUT,1/2"-13, G5

2шт.

179879

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

2

358279R11

CLAMP, battery hold-down (gasoline, distillate or kerosene) (liquefied petroleum gas) Farmall 450 Series, 5534 up

1шт.

2

358551R11

CLAMP, battery hold-down (liquefied petroleum gas) Farmall 400 Series, Farmall 450 Series, Serial Range: 501-5533

1шт.

3

358281R1

RUBBER, corner, battery hold-down (no longer supplied for service)

4шт.

4

362059R92

BOX

battery

1шт.

179881

BOLT,1/2" - 13 x 1", Gr 5

2шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 1-1/4"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

361989R91

BRACKET, headlight support, LH

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-18NC thread) (see note B)

4шт.

6

361992R91

BRACKET, headlight support, RH

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-18NC thread) (see note B)

4шт.

7

362132R1

COVER, battery cable

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

364410R1

SPACER,1/2" Pipe x 1 3/8"

battery to ground strap (will work for 358285R1)

1шт.

433142

BOLT

SCREW, cap, hex-hd., 7/16-14NC x 4-1/2"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

358277R2

BOLT,Sq Nk, 5/16" - 18 x 9-1/4"

battery hold down

2шт.

129-419

WING NUT,5/16"-18

NUT, wing, 5/16-18NC

2шт.

28950D

WASHER

plain, 21/64" I.D. x 5/8" O.D. x no. 16 ga.

2шт.
