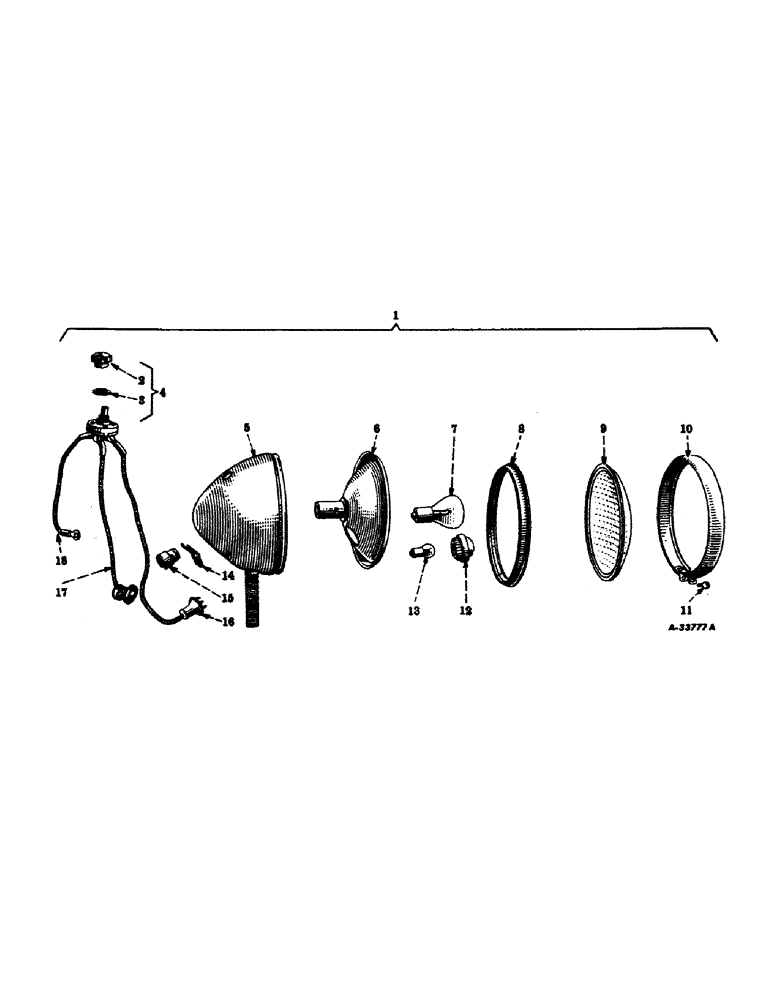

Запчасти Case IH 400-SERIES (131[A]) - ELECTRICAL SYSTEM, COMBINATION REAR LIGHT AND TAIL LIGHT (06) - ELECTRICAL SYSTEMS

1

361985R93

LAMP

LIGHT, combination rear light and tail light (6 volt)

1шт.

1

361986R93

LAMP

LIGHT, combination rear light and tail light (12 volt)

1шт.

2

359773R91

KNOB, switch (plastic)

1шт.

3

355425R1

NUT, retaining, switch

1шт.

4

359682R91

SWITCH

light, w/knob, 359773R91 and nut, 355425R1

1шт.

5

BODY, rear light (order light, assembly)

1шт.

6

356590R91

REFLECTOR, rear light

1шт.

7

B50206

LAMP

rear (SC-6-8 volt, 32 candle power)

1шт.

7

142458

LAMP

rear (SC-12-16 volt, 32 candle power)

1шт.

8

53527D

GASKET

rear light

1шт.

9

350478R1

LENS

rear light

1шт.

10

53525DA

MOLDING

MOULDING, rear light

1шт.

11

53526D

SCREW

rear light door

1шт.

12

356592R91

JEWEL, assembly

1шт.

13

115273

LAMP, tail light (SC-6-8 volt, 1 candle power)

1шт.

13

131282

BULB,C2V, #53, 14.4V

LAMP, tail light (SC-12-16 volt, 1 candle power)

1шт.

14

79408H

SPRING, retaining, terminal

1шт.

15

79407H

PLATE

terminal

1шт.

174-211

SCREW,Sl Rnd Hd, #8 - 32 x 5/16"

slotted-rd-hd., no. 8-32NC x 5/16"

2шт.

138530

LOCK WASHER,Int Tooth, #8

WASHER, LOCK, Int Tooth, #8

2шт.

16

356591R91

SOCKET, w/wiring (switch to red light)

1шт.

17

354304R91

CABLE, socket to switch, w/spring

1шт.

18

354303R91

CABLE, switch to terminal plate

1шт.

68417D

INSULATOR

PACKAGE, terminal plate, assembly, consists of (1) plate 79407H, (2) screw 121749, (1) spring 79408H, (2) washer 138530

1шт.
