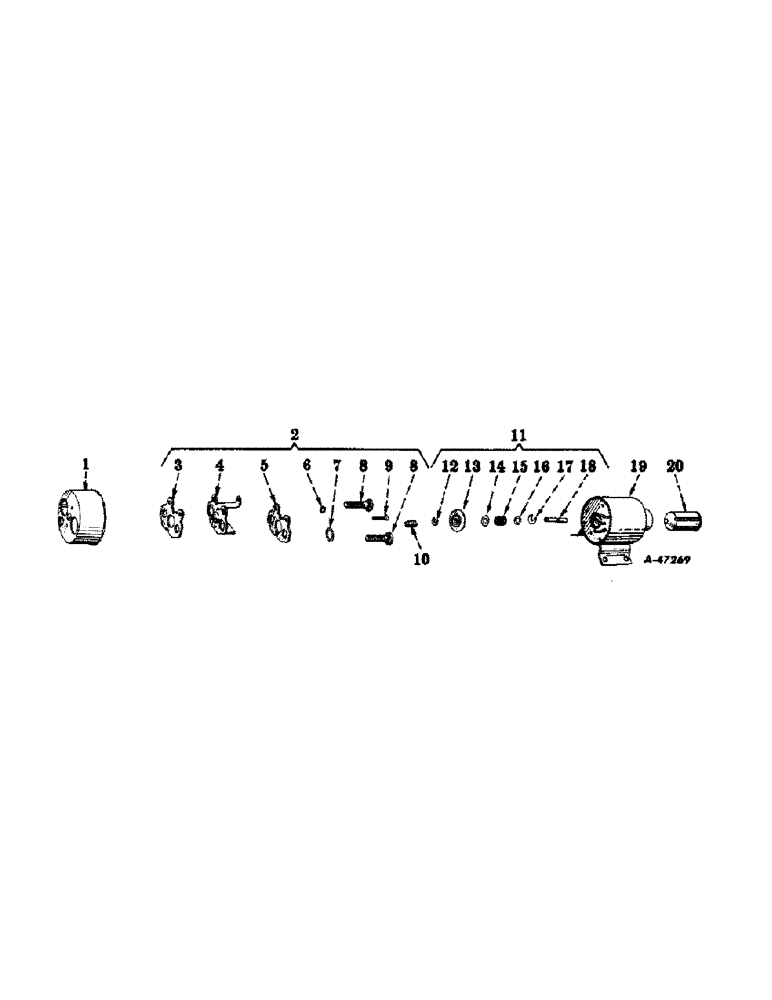

Запчасти Case IH 400-SERIES (190) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR SOLENOID SWITCH, DELCO-REMY (06) - ELECTRICAL SYSTEMS

SWITCH, solenoid, assembly (12 volt) (used with cranking motor, 1108996) (Mfr. 1118055)

1шт.

1

COVER, solenoid switch (Mfr. 1885148)

1шт.

SCREW, slotted-rd-hd., cd-pltd., no. 8-32NC x 5/16" (Mfr. 121749)

2шт.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. 121841)

2шт.

BRACKET, terminal, assembly, consists of (1) bracket (NSS), (1) clip 200035, (1) clip 200074, (1) insulator 1871648, (1) insulator 1871649, (2) nut 120622, (2) nut 134566, (2) nut 805258, (2) stud 1853333, (1) stud 1868924, (4) washer 120381, (2) washer 812622, (1) washer 834231, (2) washer 1868930, (1) washer 1904600, (4) washer 1904601, (2) washer 1904615

1шт.

3

INSULATOR, terminal (outer) (Mfr. 1871649)

1шт.

4

BRACKET, terminal (not serviced separately) order bracket assembly

1шт.

SCREW, terminal bracket attaching (Mfr. 142210)

2шт.

WASHER, lock, terminal bracket screw (Mfr. 120217)

2шт.

5

INSULATOR, terminal (inner) (Mfr. 1871648)

1шт.

6

CLIP, terminal (Mfr. 200035)

1шт.

7

CLIP, terminal (Mfr. 200074)

1шт.

8

STUD, terminal (3/8" dia.) (Mfr. 1853333)

2шт.

NUT, hex., machine screw, cd-pltd., 3/8-16NC (1/4" thick) (Mfr. 134566)

2шт.

NUT, terminal stud, 3/8-16NC x 5/32" thick (Mfr. 805258)

2шт.

WASHER, lock, light, cd-pltd., 3/8" (Mfr. 120381)

4шт.

WASHER, insulating, terminal, 3/8 x 13/16" (Mfr. 1904601)

4шт.

WASHER, plain, 3/8" ID x 11/16" OD x 1/32" (Mfr. 812622)

2шт.

9

STUD, terminal (no. 8 dia.) (Mfr. 1868924)

1шт.

NUT, hex., machine screw, cd-pltd., no. 8-32NC (Mfr. 120622)

2шт.

WASHER, lock, terminal stud (no. 8) (Mfr. 1904615)

2шт.

WASHER, insulating, terminal (Mfr. 1868930)

2шт.

WASHER, insulating, terminal (Mfr. 1904600)

1шт.

WASHER, plain, terminal (Mfr. 834231)

1шт.

10

SPRING, contact return (Mfr. 1853342)

1шт.

11

CONTACT, solenoid, assembly, composed of (1) disc 1906626, (1) push rod 1853327, (1) retainer 1847237, (1) retainer 1847238, (1) spring 1847240, (1) washer 1849235, (1) washer 1913041

1шт.

12

RETAINER, contact disc (Mfr. 1847237)

1шт.

13

DISC, contact (Mfr. 1906626)

1шт.

14

WASHER, retaining, contact spring (Mfr. 1913041)

1шт.

15

SPRING, contact cushion (Mfr. 1847240)

1шт.

16

WASHER, plain, contact spring (Mfr. 1849235)

1шт.

17

RETAINER, contact spring (Mfr. 1847238)

1шт.

18

PUSH ROD (Mfr. 1853327)

1шт.

19

CASE, w/coil (Mfr. 1884883)

1шт.

20

PLUNGER (Mfr. 1884191)

1шт.
