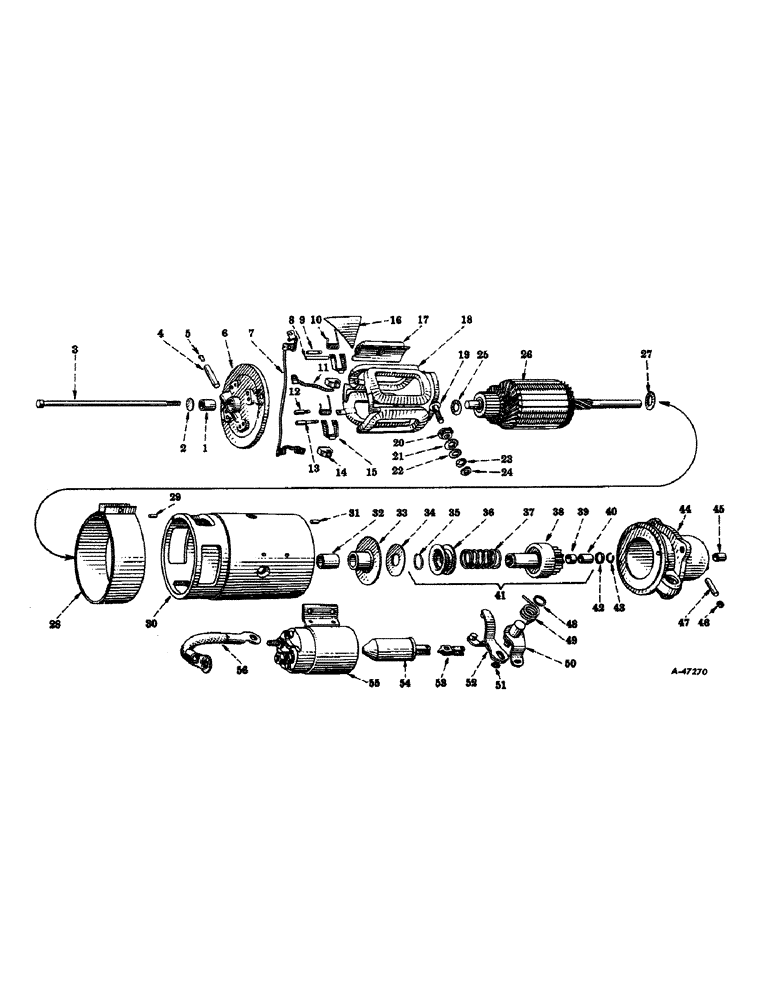

Запчасти Case IH 400-SERIES (187) - ELECTRICAL SYSTEM, DIESEL ENGINE, CRANKING MOTOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

BUSHING, commutator end frame (not serviced separately) order ref. no. 6)

1шт.

2

PLUG, commutator end frame (Mfr. 810819)

1шт.

3

BOLT, thru (Mfr. 1931812)

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

WICK, commutator end frame (Mfr. 804080)

1шт.

5

OILER, commutator, w/cap and spring (Mfr. 113702)

1шт.

6

FRAME, commutator end, assembly, composed of (1) frame (NSS), (1) bushing (NSS), (1) oiler 113702) (1) pin 809062, (1) plug 810819, (2) pin 812015, (2) pin 812016, (2) pin 817313, (2) pin 817314, (1) wick 804080

1шт.

7

CABLE, brush and field connector (Mfr. 1931777)

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, slotted-rd-hd., no. 10-32NF x 1/4"

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

PIN, brush holder stop (Mfr. 817314)

2шт.

9

PIN, brush holder hinge (Mfr. 817313)

2шт.

10

SPRING, brush (Mfr. 1855685) (A only)

4шт.

10

SPRING, brush (Mfr. 1935316) (B only)

4шт.

11

CABLE, brush ground (Mfr. 1931771)

2шт.

SCREW, brush ground cable (Mfr. 132908)

2шт.

WASHER, lock, brush ground cable screw (Mfr. 453288)

2шт.

12

PIN, brush holder stop, w/insulation (Mfr. 812015)

2шт.

13

PIN, brush holder hinge, w/insulation (Mfr. 812016)

2шт.

14

BRUSH (Mfr. 1906958)

4шт.

187-1740

SELF-TAP SCREW,Truss Hd, #10 x 3/4"

SCREW, tapping, slotted-pan-hd., cd-pltd., no. 10-32NF x 5/8", type D

4шт.

15

HOLDER, brush (Mfr. 1931773)

4шт.

16

INSULATOR, field coil (Mfr. 1913534)

2шт.

17

SHOE, pole (Mfr. 1931784)

4шт.

SCREW, pole shoe (Mfr. 1843646)

4шт.

18

COIL SET, field, w/stud, 1933879 (Mfr. 1933843)

1шт.

19

STUD, terminal (Mfr. 1933879)

1шт.

20

INSULATOR, terminal stud (Mfr. 1931783)

1шт.

21

WASHER, insulating, terminal stud (Mfr. 1857268)

1шт.

22

WASHER, plain, terminal stud (Mfr. 805790)

1шт.

23

120381

WASHER

lock, medium, cd-pltd., 3/8"

1шт.

24

NUT, terminal stud (Mfr. 805258)

1шт.

25

WASHER, space, commutator end (Mfr. 833602)

1шт.

26

ARMATURE (Mfr. 1933839)

1шт.

27

WASHER, space, armature shaft (between the center bearing and the armature) (Mfr. 820155)

1шт.

28

BAND, cover, w/insulation and screw, 132926 (Mfr. 1880355)

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

slotted-rd-hd., cd-pltd., no. 10-32NF x 1-1/4"

1шт.

29

PIN, dowel, commutator end frame (Mfr. 809062)

1шт.

30

FRAME (not serviced separately) order cranking motor, assembly

1шт.

31

PIN, dowel, drive end frame (Mfr. 809593)

1шт.

32

BUSHING, center bearing (not serviced separately) order ref. no. 33)

1шт.

33

PLATE, center bearing, w/bushing (Mfr. 1931808)

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

machine, slotted-rd-hd., cd-pltd., no. 10-32NF x 1/4"

2шт.

WASHER, lock, center bearing plate attaching screw (Mfr. 1880781)

2шт.

34

WASHER, brake armature shaft (between the center bearing and the motor drive) (Mfr. 821453)

1шт.

35

WIRE, lock, motor drive (Mfr. 37521)

1шт.

36

COLLAR, motor drive (Mfr. 1838436)

1шт.

37

SPRING, motor drive (Mfr. 37517)

1шт.

38

GEAR (10 teeth), w/overrunning clutch and shaft (not serviced separately) order motor drive, reference no. 41)

1шт.

39

BUSHING, split, motor drive (not serviced separately) order ref. no. 41)

1шт.

40

BUSHING, oil-less, motor drive (not serviced separately) order ref. no. 41)

1шт.

41

DRIVE, motor, assembly (Mfr. 1933838)

1шт.

42

STOP, pinion (Mfr. 1928021)

1шт.

43

RING, retainer, pinion stop (Mfr. 1928022)

1шт.

44

HOUSING, drive, w/bushing, plug, 125947 and wick, 1909560 (Mfr. 1933834)

1шт.

45

BUSHING, drive housing (not serviced separately) order ref. no. 44)

1шт.

46

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

pipe, slotted-hdls., cd-pltd., stl., 1/8"

1шт.

47

WICK, drive housing (Mfr. 1909560)

1шт.

48

RING, retainer, shift lever shaft (large) (Mfr. 1915897)

1шт.

49

SPRING, shift lever (Mfr. 1845936)

1шт.

50

LEVER, shift, w/shaft (Mfr. 1933842)

1шт.

51

RING, retainer, shift lever shaft (small) (Mfr. 1915668)

1шт.

52

LEVER, shift, w/two pins (Mfr. 1931776)

1шт.

53

LINK, spacer, shift lever (Mfr. 1927033)

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

PIN, shift lever (Mfr. 1853305)

1шт.

NLS

NO LONGER SERVICED

machine, slotted-fil-hd., cd-pltd., no. 10-32NF x 5/8"

1шт.

131183

WASHER, lock, light, cd-pltd., no. 10

1шт.

54

PLUNGER, w/link (Mfr. 1932079)

1шт.

55

SWITCH, solenoid, assembly (for components see list of parts under details of "Cranking Motor Solenoid Switch") (Mfr. 1119778) (A only)

1шт.

55

SWITCH, solenoid, assembly (for components see list of parts under details of "Cranking Motor Solenoid Switch") (B only)

1шт.

SCREW, switch attaching (Mfr. 1916529)

4шт.

56

CABLE, switch (Mfr. 1847199)

1шт.

280136

NUT,3/8"-16, G8

Machine screw 3/8"-16, G8

2шт.

120381

WASHER

lock, medium, cd-pltd., 3/8"

2шт.
