Запчасти Case IH 400-SERIES (166) - ELECTRICAL SYSTEM, DIESEL ENGINE, SPARK PLUGS, CABLES, DISTRIBUTOR DRIVE AND BRACKET (06) - ELECTRICAL SYSTEMS

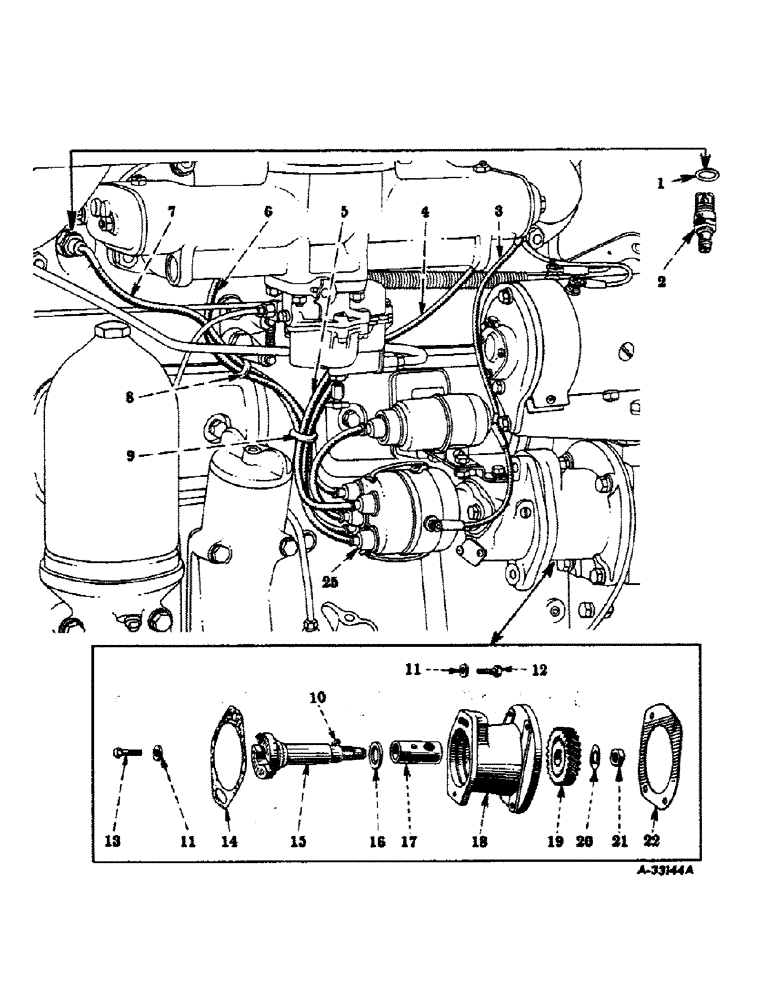

Схема запчастей Case IH 400-SERIES - (166) - ELECTRICAL SYSTEM, DIESEL ENGINE, SPARK PLUGS, CABLES, DISTRIBUTOR DRIVE AND BRACKET (06) - ELECTRICAL SYSTEMS
9
2
10
12
3
21
22
4
25
14
5
11
20
6
8
16
11
18
13
1
15
19
7
17

Артикул

Название

Примечание

Количество

1

37762H

GASKET

spark plug

4шт.

2

262456R91

HEATER PLUG

PLUG, spark, w/gasket, 37762H (champion 49)

4шт.

2

50309DC

PLUG, spark, w/gasket, 37762H (AC-18A)

4шт.

2

258938R93

SPARK PLUG

PLUG, spark, w/gasket, 37762H (auto-lite BT-15)

4шт.

3

266768R91

CABLE, coil to manifold switch

1шт.

4

266783R91

CABLE, spark plug, no. 1, w/nipple, 251553R1

1шт.

5

266778R91

CABLE, spark plug, no. 2, w/nipple, 251553R1

1шт.

6

266780R91

CABLE, spark plug, no. 3, w/nipple, 251553R1

1шт.

7

267826R91

CABLE, spark plug, no. 4, w/nipple, 251553R1

1шт.

8

263314R1

RING, rubber, 3/8" I.D.

2шт.

9

263313R1

RING, rubber, 9/16" I.D.

1шт.

10

124543

WOODRUFF KEY,#3, 1/8" x 1/2", HT

Distributor unit drive gear #3, 1/8" x 1/2", HT

1шт.

11

62493D

WASHER

ignition unit bolt

1шт.

12

179846

LEVER

hex-hd., 3/8-16NC x 1-7/8" (See note)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

13

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

cap, hex-hd., 3/8-16NC x 1-1/4"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

14

55780DD

GASKET

ignition unit flange

1шт.

15

352560R1

SHAFT, ignition unit drive (see note)

1шт.

16

352080R91

SEAL

OIL SEAL, ignition unit drive shaft (optional with 358839R91) (see note)

1шт.

16

358839R91

SEAL

OIL SEAL, ignition unit drive shaft (optional with 352080R91) (see note)

1шт.

17

24473DA

BUSHING

ignition unit drive shaft (see note)

1шт.

18

261206R11

BRACKET, ignition unit, w/bushing, 24473DA and oil seal, 352080R91) (see note)

1шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

19

261220R1

GEAR, ignition unit drive

1шт.

20

45003D

WASHER

LOCK, ignition unit gear nut

1шт.

21

114498

JAM NUT,Jam, 5/8"-18, G5

1шт.

22

261203R1

GASKET

ignition unit (see note)

1шт.

25

251553R1

BOOT

NIPPLE, spark plug cable

4шт.

REF: # 25 NOTE THIS PART IS MADE OF RUBBER.

1шт.

Выбрано товаров: 31
