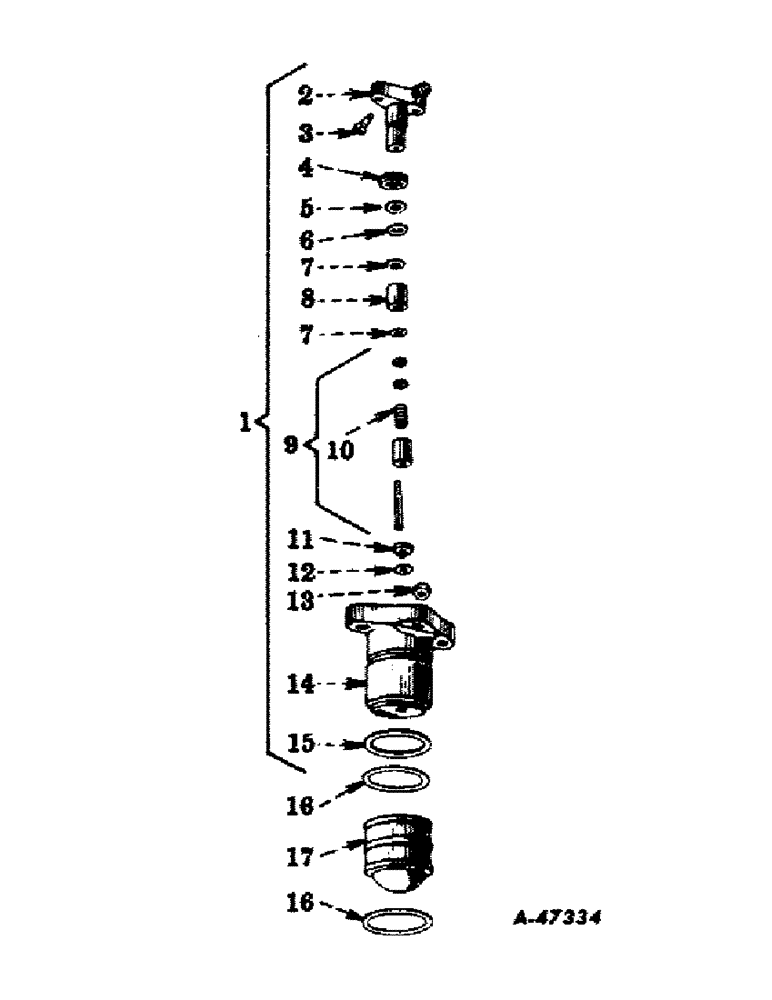

Запчасти Case IH 400-SERIES (092) - DIESEL ENGINE, INJECTION NOZZLE AND PRE-COMBUSTION CHAMBER, D-264, 11596 TO 21480 (01) - ENGINE

1

265020R93

4шт.

NOZZLE, injection assembly, composed of (1) body 260877R2, (1) fitting 260876R3, (3) gasket 37148D, (1) plate 250604R3, (1) ring 264038R1, (1) screen 264037R92, (2) screw 181379, (1) seal 61209DA, (1) seal 250608R1, (1) spacer 37150D, (1) valve 32493D, (1) valve 37152DB

1шт.

2

260876R31

FITTING, nozzle, w/ring, 264038R1, screen, 264037R92 and seal, 250608R1

4шт.

181379

BOLT,Hex, 3/8" - 24 x 2", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 2"

8шт.

3

32493D

VALVE, nozzle bleeder

4шт.

4

250608R1

SEAL

dust, nozzle fitting

4шт.

5

264037R92

STRAINER ASSY.

SCREEN, nozzle

4шт.

6

264038R1

SNAP RING,0.50", Int, #50

Ring, Snap, , nozzle screen 0.50", Int, #50

4шт.

7

37148D

GASKET, nozzle valve

8шт.

8

37150D

SPACER, nozzle valve

4шт.

9

37152DB

VALVE

nozzle, w/spring, 37146DA

4шт.

10

37146DA

SPRING, nozzle

4шт.

11

250604R3

WASHER

PLATE, nozzle injection

4шт.

12

37148D

GASKET, nozzle injector plate

4шт.

13

21238D

NUT, nozzle body stud

8шт.

14

260877R2

BODY, nozzle

4шт.

260871R1

STUD

nozzle body attaching

8шт.

15

61209DA

SEAL

dust, nozzle body

4шт.

16

260879R4

GASKET

pre-combustion chamber

8шт.

17

260878R1

CHAMBER

pre-combustion

4шт.
