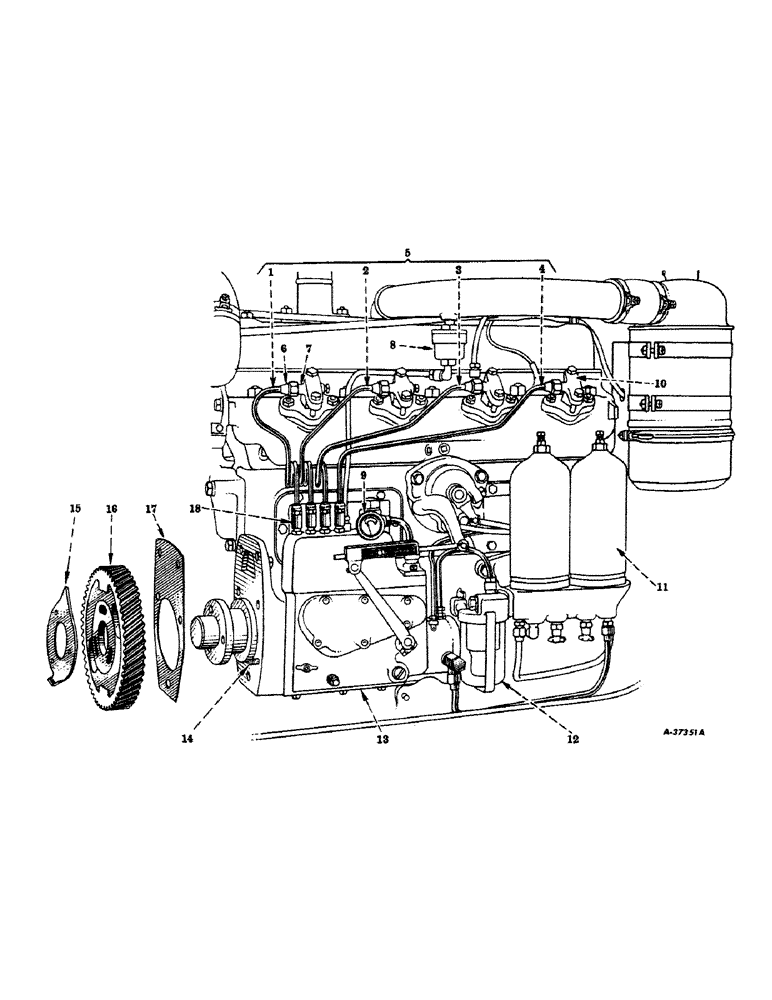

Запчасти Case IH 400-SERIES (088) - DIESEL ENGINE, FUEL INJECTION PUMP CONNECTIONS & PIPES (01) - ENGINE

1

260880R11

PIPE, injection, cylinder no. 1, assembly, D-264, 11596 to 21480, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260880R1 (NSS), (2) sleeve 250610R2

1шт.

2

260881R11

PIPE, injection, cylinder no. 2, assembly, D-264, 11596 to 21480, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260881R1 (NSS), (2) sleeve 250610R2

1шт.

3

260882R11

PIPE, injection, cylinder no. 3, assembly, D-264, 11596 to 21480, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260882R1 (NSS), (2) sleeve 250610R2

1шт.

4

260883R11

PIPE, injection, cylinder no. 4, assembly, D-264, 11596 to 21480, composed of (1) nut 250617R1, (1) nut 251050R2, (1) pipe 260883R1, (2) sleeve 250610R2

1шт.

5

260884R91

PIPE, injection (set of four) D-264, 11596 to 21480, consists of (1) pipe 260880R11, (1) pipe 260881R11, (1) pipe 260882R11, (1) pipe 260883R11

1шт.

6

250617R1

NUT

injection pipe (nozzle end)

4шт.

7

250610R2

GUARD

SLEEVE, injection pipe (nozzle end)

4шт.

8

CLEANER, air, fuel injection pump (refer to "Air Cleaner" unit) Farmall 400 series diesel, Serial Range: 501-17142

1шт.

9

263791R92

INDICATOR, fuel oil pressure

1шт.

10

265020R93

NOZZLE, fuel injection, assembly (refer to "Fuel Injection Nozzle" unit) (see note A) D-264, Serial Range: 11596-21480

4шт.

11

FILTER, fuel, auxiliary and final (refer to "Auxiliary and Final Fuel Filters" unit)

1шт.

12

251355R91

TRAP

water, assembly (refer to "Water Trap" unit)

1шт.

13

PUMP, fuel injection, "A" type, assembly (refer to "Fuel System" unit)

1шт.

14

260489R1

STUD, injection pump mounting flange

1шт.

260623R1

NUT, injection pump mounting stud

1шт.

15

46584D

INDICATOR, injection pump gear timing

1шт.

425474

SCREW,Hex Hd, 3/8"-24 x 1", w/LW

machine, 3/8-24NF x 1", w/lock washer

3шт.

16

8231DB

GEAR, fuel injection pump

1шт.

16849R91

SCREW, machine, hex-hd., 3/8-24NF x 2-3/8" , w/lock washer

2шт.

17

62939DB

GASKET

fuel injection pump

1шт.

18

251050R2

NUT

injection pipe (pump end)

4шт.

250610R2

GUARD

SLEEVE, injection pump

4шт.
