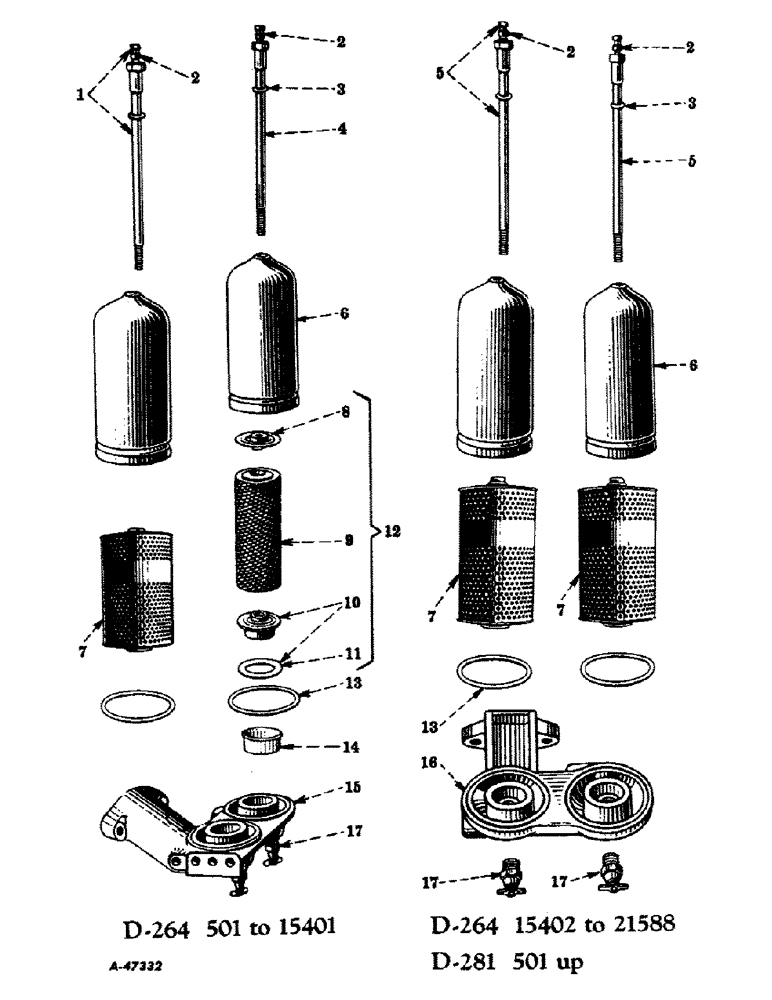

Запчасти Case IH 400-SERIES (086) - DIESEL ENGINE, AUXILIARY AND FINAL FUEL OIL FILTER (01) - ENGINE

1

276183R91

STUD

BOLT, final fuel oil filter case, w/bleeder, 275634R1 (will work for 259482R91) (A only)

1шт.

2

275634R1

LOCK VALVE

BLEEDER, fuel oil filter (will work for 39677DA)

2шт.

3

13727D

GASKET

GASKET, fuel oil filter case bolt

2шт.

4

46591DB

BOLT, auxiliary fuel oil filter case, w/bleeder, 275634R1 (A only)

1шт.

5

276183R91

STUD

BOLT, auxiliary and final fuel oil filter case, w/bleeder, 275634R1 (will work for 259482R91) (B only)

2шт.

6

13729D

CASE, auxiliary and final fuel oil filter

2шт.

7

259479R92

FILTER, ELEMENT

ELEMENT, fuel oil filter (will work for 266839R91) (A only)

1шт.

(B only)

2шт.

8

62948DA

PLATE, top auxiliary fuel oil filter (A only)

1шт.

9

62946DA

FILTER CARTRIDGE

ELEMENT, auxiliary fuel oil filter (A only)

1шт.

10

64520DBX

PLATE, bottom, auxiliary fuel oil filter, w/gasket, 64521D (A only)

1шт.

11

64521D

GASKET

GASKET, auxiliary fuel oil filter bottom plate (A only)

1шт.

12

62945DA

FILTER, fuel, auxiliary, assembly, composed of (1) element 62946DA, (1) gasket 64521D, (1) plate 62948DA, (1) plate 64520DB (NSS)

1шт.

13

13728D

GASKET

fuel oil filter case

2шт.

14

271320R1

SLEEVE, auxiliary filter adapter (used with fuel filter conversion package, 271322R91) (A only)

1шт.

15

9441DA

BASE, fuel oil filter (A only)

1шт.

179884

BOLT,Hex, 1/2" - 13 x 1 3/8", Gr 5, Full Thd

SCREW, cap, hex-hd., 1/2-13NC x 1-3/8" (A only)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (A only) 1/2"

2шт.

16

271318R1

BASE, fuel oil filter (B only)

1шт.

273036R1

BOLT

SCREW, fuel filter base attaching (B only)

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (B only) 1/2"

2шт.

17

9982T

COCK

VALVE, drain, fuel oil filter, w/stem

2шт.

271322R91

PACKAGE, conversion, auxiliary fuel filter (used to equip tractors with radial fin type filters) consists of (1) bolt 275881R91, (1) element 259479R92, (1) sleeve 271320R1 (A only)

1шт.
