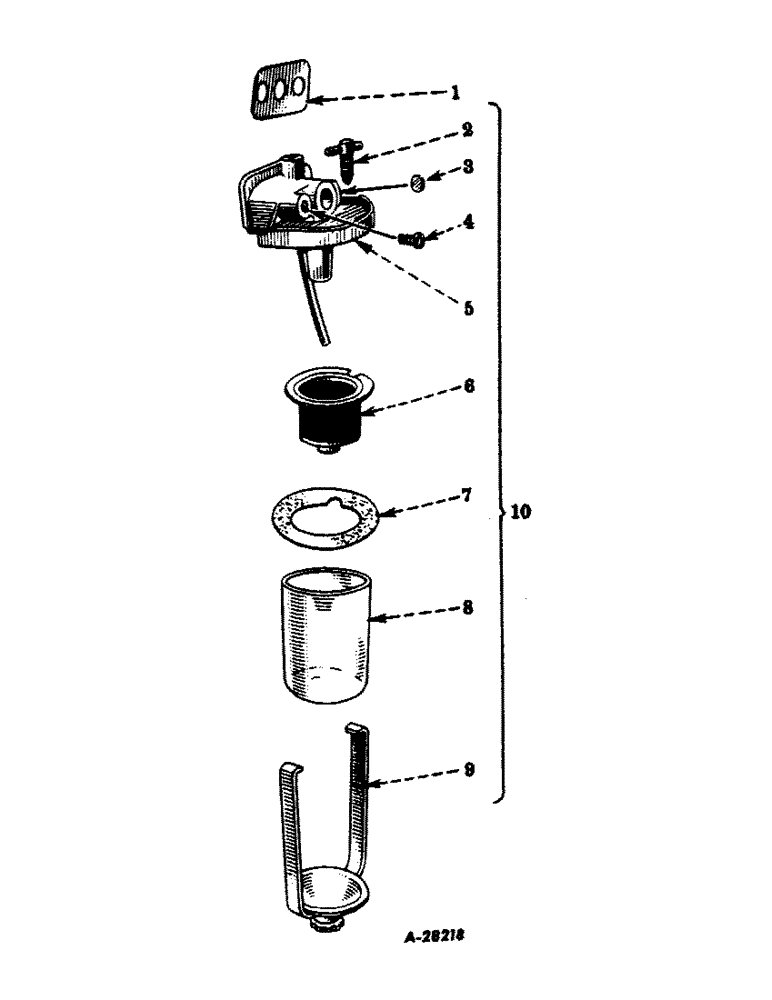

Запчасти Case IH 400-SERIES (085) - DIESEL ENGINE, WATER TRAP (01) - ENGINE

1

51527DC

GASKET

water trap

1шт.

2

251347R11

SCREW, water trap drain

1шт.

3

24805D

PLUG

expansion, water trap top, 3/8"

1шт.

4

60871DA

SCREW, water trap vent

1шт.

5

251380R91

TOP

water trap, w/drain pipe and plug, 24805D

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 3"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

6

251348R91

SCREEN

water trap

1шт.

7

260708R2

GASKET

water trap bowl (will work for 251352R1)

1шт.

8

60877D

BOWL

water trap

1шт.

9

60878DX

BALL

BAIL, water trap

1шт.

10

251355R91

TRAP

water, assembly, composed of (1) bail 60878DX, (1) bowl 60877D, (1) gasket 260708R2, (1) screen 251348R91, (1) screw 60871DA, (1) screw 251347R11, (1) top 251380R91

1шт.
