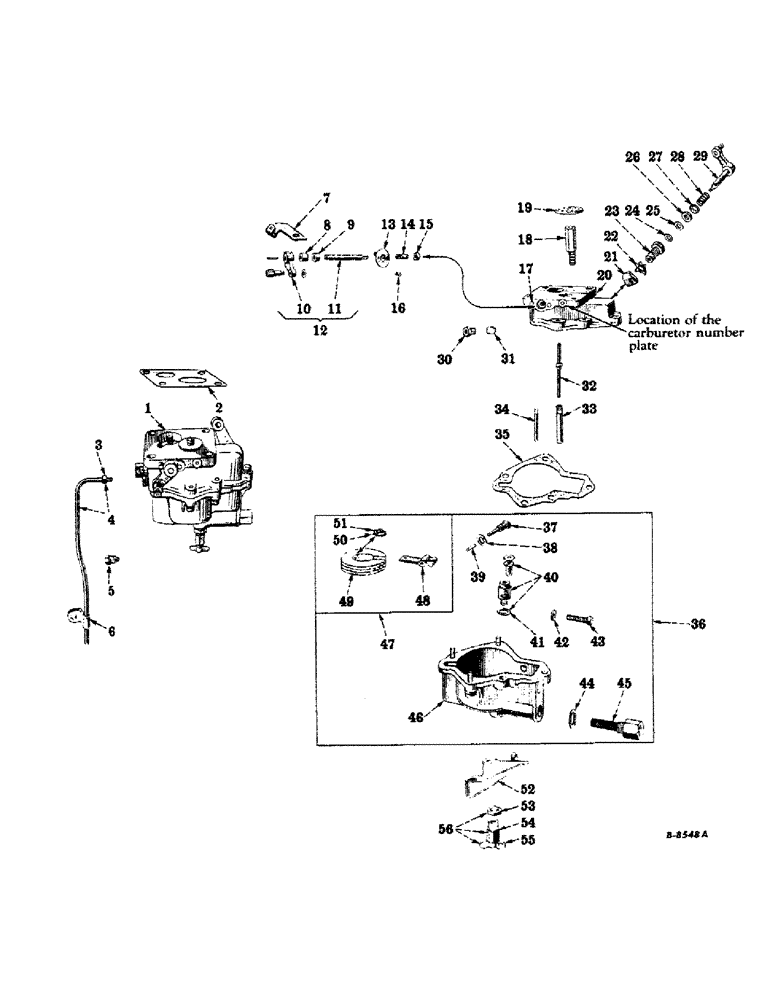

Запчасти Case IH 400-SERIES (082) - DIESEL ENGINE, CARBURETOR INTERNATIONAL MODEL F-8, FOR STARTING ON GASOLINE (01) - ENGINE

1

67860DCM

CARBURETOR, assembly

1шт.

2

53459DA

GASKET

carburetor (see note)

1шт.

3

25038HA

TUBE NUT,3/8"-24

NUT, carburetor drain tube (see note)

1шт.

4

58859DX

TUBE, carburetor drain, w/nut, 25038HA (see note)

1шт.

5

61338D

PLUG, primer connection (see note)

1шт.

6

50821D

CLIP, carburetor drain tube (see note)

1шт.

7

61146DM

HOLDER, starting lever tube

1шт.

120611

NUT,#10 - 32

sq-hd., no.10-32NC

1шт.

NLS

NO LONGER SERVICED

slt-fil-hd., no. 10-32NC x 1/2"

1шт.

8

45148D

SEAL,6.75mm ID x 11.24mm OD x 0.4mm Thk

RETAINER, choke valve dust seal

1шт.

9

45149DA

SEAL

DUST, seal, choke valve

1шт.

10

9154DM

LEVER, choke valve

1шт.

11

61144DAM

SHAFT, choke valve, long

1шт.

12

61143DAM

SHAFT, and lever, choke valve, assembly, composed of (1) lever 9154DM, (1) pin 31270D (NSS), (1) shaft 61144DAM, (1) swivel 61145DM, (1) washer 32592D

1шт.

169-133

SCREW,Sl Fil Hd, #8 - 32 x 3/8"

slt-fil-hd., no. 8-32NC x 3/8"

1шт.

13

356850R11

PLATE, choke valve, w/guide and spring

1шт.

14

25969DB

SHAFT, choke valve, short

1шт.

15

61142DM

PLUG, choke valve shaft hole

1шт.

16

31636D

SCREW

choke valve plate

2шт.

17

45110D

PIN

stop, starting lever

2шт.

18

250098R1

SPACER, air valve

1шт.

19

250097R1

VALVE, air

1шт.

120216

BOLT,Short NK, M8 x 60, Cl8.8

slt-fil-hd., cd-pltd., no. 10-32NC x 1/2"

1шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

20

351857R91

BODY, carburetor, assembly, composed of (1) body 8479DC (NSS), (1) pin 45110D, (1) plug 61338D, (1) plug 61142DM, (1) retainer 45148D, (1) seal 45149DA

1шт.

21

32582D

CAM, locking shaft

1шт.

22

352352R1

LOCK, locking shaft bearing

1шт.

23

51735D

BEARING, locking shaft

1шт.

24

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Locking shaft

1шт.

25

363454R1

WASHER,8.33mm ID x 12.3mm OD x 0.81mm Thk

locking shaft

1шт.

26

32588D

LOCK WASHER

dust, locking shaft

1шт.

27

32587D

RETAINER, locking shaft dust washer

1шт.

28

32586D

SPRING, locking shaft dust washer

1шт.

29

51732D

SHAFT, locking, w/lever and pin

1шт.

120622

NUT,#8-32

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

30

50802D

ADAPTER, drip tube

1шт.

31

27445DB

FILLER

drip hole

1шт.

32

53837DX

NOZZLE, w/tube

1шт.

33

55660DB

WELL, metering

1шт.

34

50803D

TUBE, fuel inlet

1шт.

35

32606DD

GASKET

fuel bowl

1шт.

36

35691DA

BOWL, fuel, assembly, composed of (1) bowl 5051DX, (1) float 251652R91, (1) gasket 18377D, (1) gasket 25948D, (1) pivot 32576DX, (1) retainer 29902DX, (1) valve 32581DXB

1шт.

37

32576DX

PIVOT and SCREW, float

1шт.

38

25948D

GASKET

float lever pivot screw

1шт.

39

32604D

SPACER, float lever

1шт.

40

32581DXB

CAGE

VALVE, fuel, w/seat and gasket, 59241D

1шт.

41

59241D

GASKET

fuel valve seal

1шт.

42

492-11012

LOCK WASHER,#12

Washer, Lock, #12

5шт.

43

132203

SCREW, fil-hd., cd-pltd., no. 12-24 x 7/8" Slotted Fil Hd, #12-24 x 7/8"

5шт.

44

18377D

GASKET

strainer screen

1шт.

45

29902DX

SCREEN

RETAINER, strainer, w/screen

1шт.

46

5051DX

BOWL, fuel, w/spacer, 32604D (optional with 9390DX)

1шт.

46

9390DX

BOWL, fuel, w/spacer, 32604D (optional with 5051DX)

1шт.

47

251652R91

FLOAT

w/lever, assembly, composed of (1) float 251650R11, (1) lever 357090R2, (1) spring 32577D, (1) spring 32578D

1шт.

48

357090R2

LEVER

float

1шт.

49

251650R11

FLOAT

rubber, w/nut, 114777 and screw, 132646

1шт.

114777

NUT, hex., no. 4-40

1шт.

132646

SCREW,Sl Rnd Hd, #4 - 40 x 1/2"

slt-rd-hd., cd-pltd., no. 4-40 x 1/2"

1шт.

50

32577D

SPRING, LEAF

SPRING, float lever, lower leaf

1шт.

51

32578D

SPRING, LEAF

SPRING, float lever, upper leaf

1шт.

52

58843DX

TROUGH, carburetor drain, w/support and clip (see note)

1шт.

53

58837D

NUT, lock, carburetor drain valve

1шт.

54

64932D

BODY, carburetor drain valve

1шт.

55

64536DA

STEM

carburetor drain valve

1шт.

56

58840DAX

PLUG

VALVE, carburetor drain, w/body, 64932D, nut, 58837D and stem, 64536DA

1шт.
