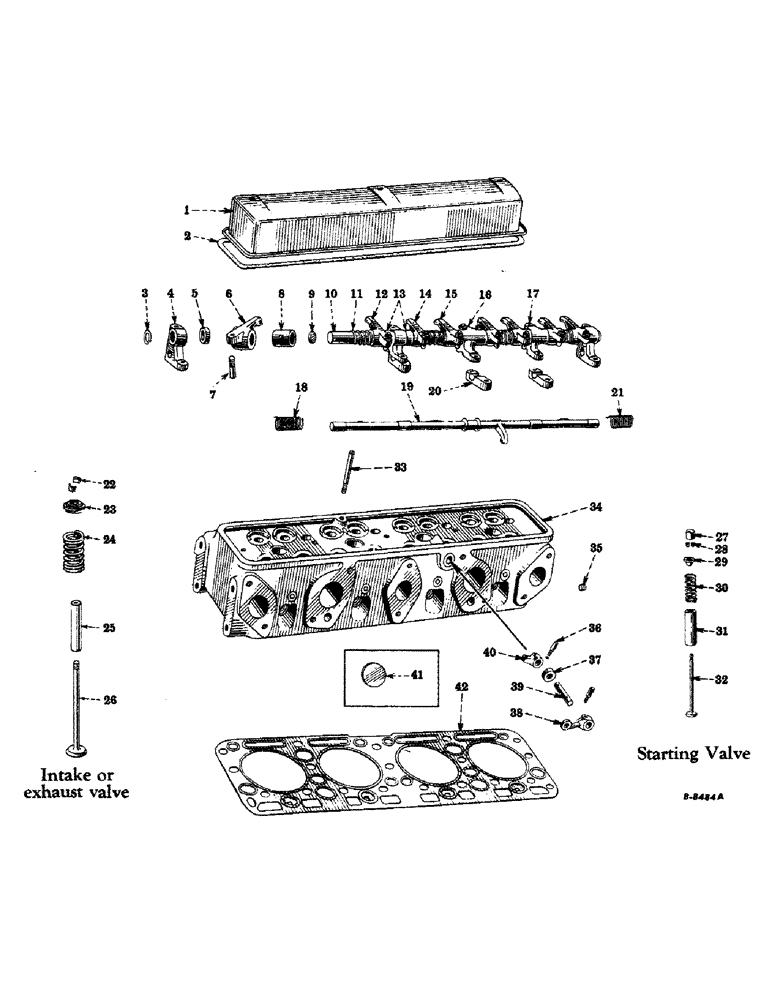

Запчасти Case IH 400-SERIES (056) - DIESEL ENGINE, CYLINDER HEAD, VALVE COVER, VALVES AND STARTING VALVE MECHANISM (01) - ENGINE

1

52018DAX

COVER, valve

1шт.

103026

NUT,3/8"-24, G5

3шт.

62866D

WASHER,5/64" Thk x 13/32" ID

valve cover stud nut

3шт.

2

52019D

GASKET

valve cover

1шт.

3

49950D

RING, snap, valve lever shaft

2шт.

4

8202D

BRACKET, valve lever, outer

2шт.

103026

NUT,3/8"-24, G5

4шт.

32445D

STUD

valve lever bracket, outer (short)

2шт.

46198D

STUD

valve lever bracket, outer (long)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (On short studs only) 3/8"

2шт.

5

52017D

SPACER, valve lever, short

2шт.

6

46224DBX

LEVER, exhaust valve, RH, w/bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

7

16067DA

ADJUSTMENT SCREW,3/8" - 24

valve lever adjusting

8шт.

133093R1

NUT,Hex, 3/8" - 24

valve lever adjusting screw

8шт.

8

46225DA

BUSHING, valve lever

8шт.

9

172530

PLUG,Exp, 11/16"

expansion, valve lever shaft, 11/16"

2шт.

10

52016DX

SHAFT, valve lever, w/plug, 172530

2шт.

11

46218D

SPRING, valve lever

4шт.

12

46221DBX

LEVER, intake valve, LH, w/bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

13

46220D

SPACER, valve lever, long

4шт.

14

46222DBX

LEVER, intake valve, RH, w/bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

15

46223DBX

LEVER, exhaust valve, LH, w/bushing, 46225DA, nut, 133093R1 and screw, 16067DA

2шт.

16

8201D

BRACKET, valve lever upper half, center

1шт.

103026

NUT,3/8"-24, G5

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

102720

CRANKSHAFT

SCREW, set, hdls., cup-pltd., 5/16-18UNC x 3/4"

2шт.

46198D

STUD

valve lever bracket, center (long)

1шт.

46200D

STUD, vlave lever bracket, center (short)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (On short stud only) 3/8"

1шт.

17

8200D

BRACKET, valve lever, upper half, intermediate

2шт.

103026

NUT,3/8"-24, G5

4шт.

46200D

STUD, valve lever bracket, intermediate (short)

2шт.

52012D

STUD, valve lever bracket, intermediate (long)

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (On short studs only) 3/8"

2шт.

18

51169D

SPRING, starting valve shaft, rear

1шт.

19

256102R93

SHAFT, starting valve

1шт.

20

8199D

BRACKET, valve lever, lower half (center and intermediate)

3шт.

21

51170D

SPRING, starting valve shaft, front

1шт.

22

41339D

KEY

valve spring seat

16шт.

23

273166R92

ROTATOR, positive, valve (will work for seat, 46206D)

8шт.

24

46205DA

SPRING

valve

8шт.

25

8198DR

GUIDE

valve

8шт.

26

46203DD

VALVE

intake

4шт.

26

46204DE

VALVE, ENG EXHAUST,

VALVE, exhaust

4шт.

27

250535R1

COVER

starting valve

4шт.

28

46209D

BUCKET TOOTH KEY

KEY, starting valve spring seat

8шт.

29

46208D

SEAT, starting valve spring

4шт.

30

46211D

VALVE SPRING

SPRING, starting valve

4шт.

31

8744DR

GUIDE, starting valve

4шт.

32

46207DA

VALVE

starting

4шт.

33

52139D

PIPE, breather, cylinder head

1шт.

34

260869R51

1шт.

HEAD, cylinder, assembly D-264, composed of (8) guide 8198DR, (4) guide 8744DR, (1) head 260869R5 (NSS), (4) jet 46197D (NSS), (1) pipe 52139D, (1) plug 50410DA, (4) plug 126045, (6) plug 116566, (2) stud 32445D, (3) stud 46198D, (3) stud 46200D, (2) stud 52012D, (10) stud 260870R1, (8) stud 260871R1

1шт.

34

277098R11

1шт.

HEAD, cylinder, assembly (will work for 277437R11) D-281, composed of (8) guide 8198DR, (4) guide 8744DR, (1) head 277437R1 (NSS), (4) jet 46197D (NSS), (1) pipe 52139D, (1) plug 50410DA, (4) plug 126045, (6) plug 116566, (2) stud 32445D, (3) stud 46198D, (3) stud 46200D, (2) stud 52012D, (10) stud 260870R1

1шт.

46227D

NUT

cylinder head stud

18шт.

3066422R1

PLUG

pipe, stl., short., 3/8"

4шт.

116566

PLUG

pipe, stl., cdk-hdls., 1/2"

6шт.

46242DA

STUD, cylinder head, short

18шт.

35

50410DA

PLUG

oil header

1шт.

36

42739DA

STUD

PIN, starting valve operating shaft lever

2шт.

25-114

NUT,1/4"-28, G5

hex., 1/4-28NF

2шт.

114604

LOCK WASHER,Ext Tooth, 1/4"

WASHER, lock, external-tooth, 1/4"

2шт.

37

271597R91

BUSHING

OIL SEAL, starting valve operating shaft

1шт.

38

52745D

LEVER, starting valve operating shaft, outer

1шт.

39

51195D

SHAFT, operating starting valve

1шт.

40

260938R1

LEVER, starting valve operating shaft, inner

1шт.

41

256659R1

PLUG, expansion, cylinder head (bronze, 1" dia.) (optional with 172545) D-264

2шт.

41

41-16

PLUG,Exp, 1"

expansion, cylinder head (stl., 1" dia.) (optional with 256659R1) D-264

2шт.

42

53436DE

CYLINDER HEAD GASKET

cylinder head

1шт.

261339R92

STRIPPER PACKAGE

PACKAGE, gasket cylinder head replacement, consists of (1) gasket 45984D, (1) gasket 45986D, (1) gasket 52019D, (3) gasket 52649D, (2) gasket 52650DC, (1) gasket 53436DE, (3) washer 62866D

1шт.
