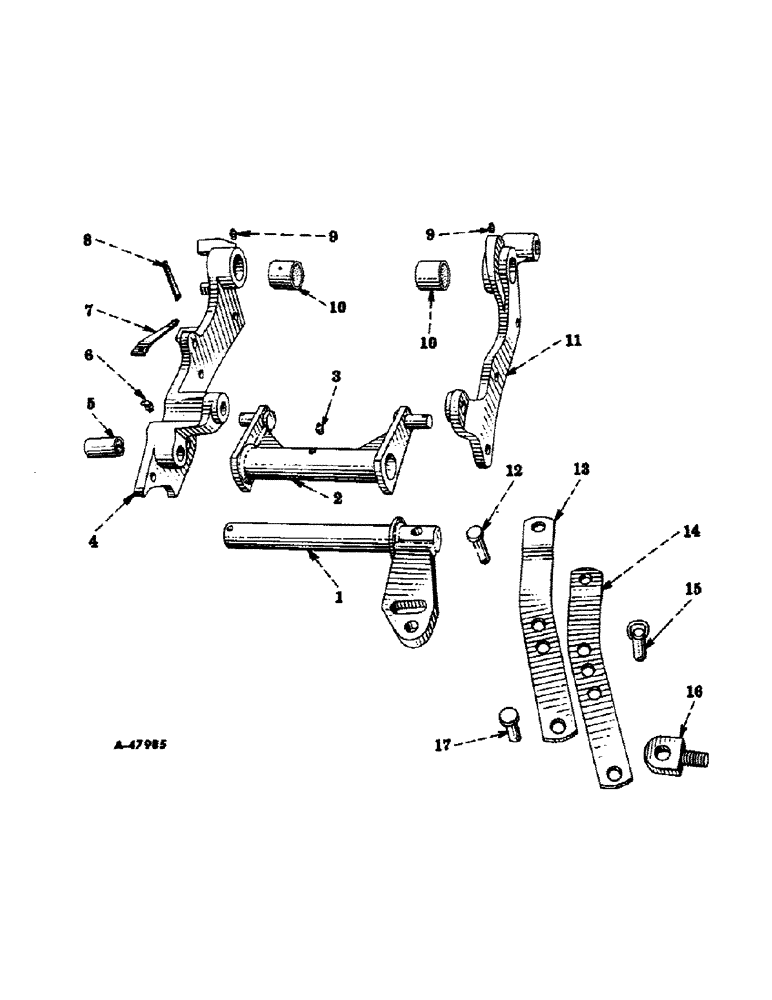

Запчасти Case IH 400-SERIES (437) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, ROCKSHAFT Attachments

1

522820R12

SHAFT, lateral swing, assembly

1шт.

119198

COTTER PIN,3/8" x 2 1/2"

PIN SPLIT (COTTER), , Extended prong 3/8" x 2 1/2"

1шт.

Q3488

WASHER

plain, 1-25/32" ID x 2-1/2" OD x no. 11 ga.

1шт.

Q3489

WASHER

plain, 1-25/32" ID x 2-1/2" OD x no. 16 ga. (use only if necessary to take up end play)

1шт.

2

522826R91

LIMITER, lateral swing, assembly

1шт.

Q3481

WASHER

plain, 1-1/32" ID x 1-1/2" OD x no. 16 ga. (use only if necessary to take up end play)

1шт.

3

110161

FITTING, lubrication straight, drive type 3/16"

1шт.

4

522695R21

PLATE-SIDE, w/integral Rockshaft bearing, LH, w/bushings, 522705R1 and 523708R1 assembly

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

114610

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4" (on lower hole, LH side)

1шт.

5

522705R1

BUSHING,28.63mm ID x 31.85mm OD x 53.98mm L

pivot, traction control

1шт.

6

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

lubrication, 67-1/2" elbow, 1/8"

1шт.

7

522706R1

SPRING, adjusting lever

1шт.

9635082

NUT,5/16" - 18, Gr 5

1шт.

17425R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

SCREW, cap, hex-hd., 5/16-18NC x 1"

1шт.

557264

WASHER, plain, 11/32" ID x 3/4" OD x no. 11 ga.

1шт.

8

522851R1

STRAP, traction control lever guide

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

machine, slotted-rd-hd., 1/4 x 3/4"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

10

522844R1

BUSHING, Rockshaft bearing (used with 522695R1 and 522696R1)

2шт.

10

523708R1

BUSHING,54.41mm ID x 57.56mm OD x 50.8mm L

Rocksahft bearing (used with 522695R2 and 522696R2)

2шт.

11

522696R21

PLATE-SIDE, w/integral Rockshaft bearing, RH, w/bushing, 523708R1, assembly

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

3шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

3шт.

12

523171R1

PIN,19.05mm OD x 74.61mm L

lateral swing, Serial Range: strap-shaft

1шт.

13095R1

PIN,1/4" x 1 1/4"

Split (Cotter), 1/4" x 1 1/4"

1шт.

13

522998R11

STRAP, lateral swing, upper, w/pin (15-1/4" long) (order, 524150R91)

1шт.

13

524148R1

STRAP, lateral swing, upper, w/pin (15-11/16" long)

1шт.

14

522999R11

STRAP, lateral swing, lower (15-1/4" long) (order, 524150R91)

1шт.

14

524149R1

STRAP, lateral swing, lower (15-11/16" long)

1шт.

15

522841R11

PIN

lateral swing lockout

1шт.

16

522843R1

BOLT

EYE-BOLT, lateral swing

1шт.

17

523172R1

PIN,19.05mm OD x 59.53mm L

lateral swing, Serial Range: strap-eye-bolt

1шт.

524140R91

STRAP, lateral swing, assembly (consists of strap, 524150R1) (will work for 522998R11 and 522999R1)

1шт.
