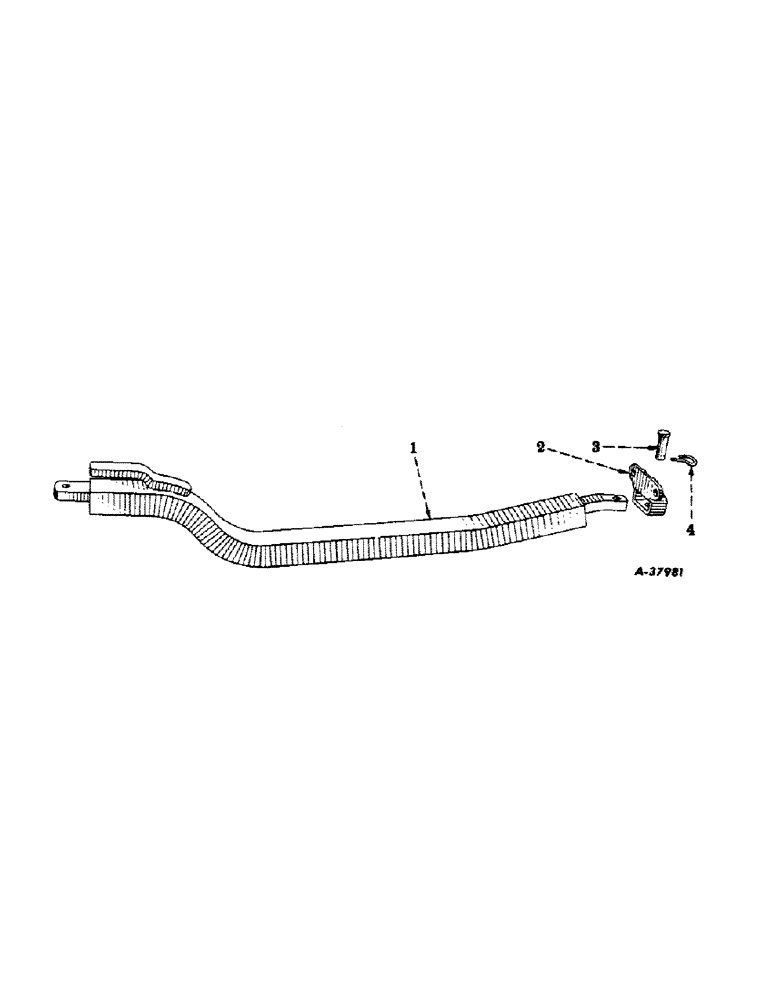

Запчасти Case IH 400-SERIES (431) - ATTACHMENTS, SWINGING DRAWBAR, SPECIAL, FOR TRACTORS EQUIPPED W/FAST-HITCH, W/O TRACTION CONTROL Attachments

363409R91

DRAWBAR

ATTACHMENT, swinging drawbar

1шт.

1

363410R11

DRAWBAR, swinging

1шт.

114821

NUT, hex., 3/4-10NC (see note)

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2" (see note)

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, (See note) 3/4"

2шт.

2

363414R91

BRACKET, swinging drawbar

1шт.

3

363415R1

PIN

pivot, swinging drawbar

1шт.

4

PO18499

COTTER PIN

cotter, quick attachable

1шт.
