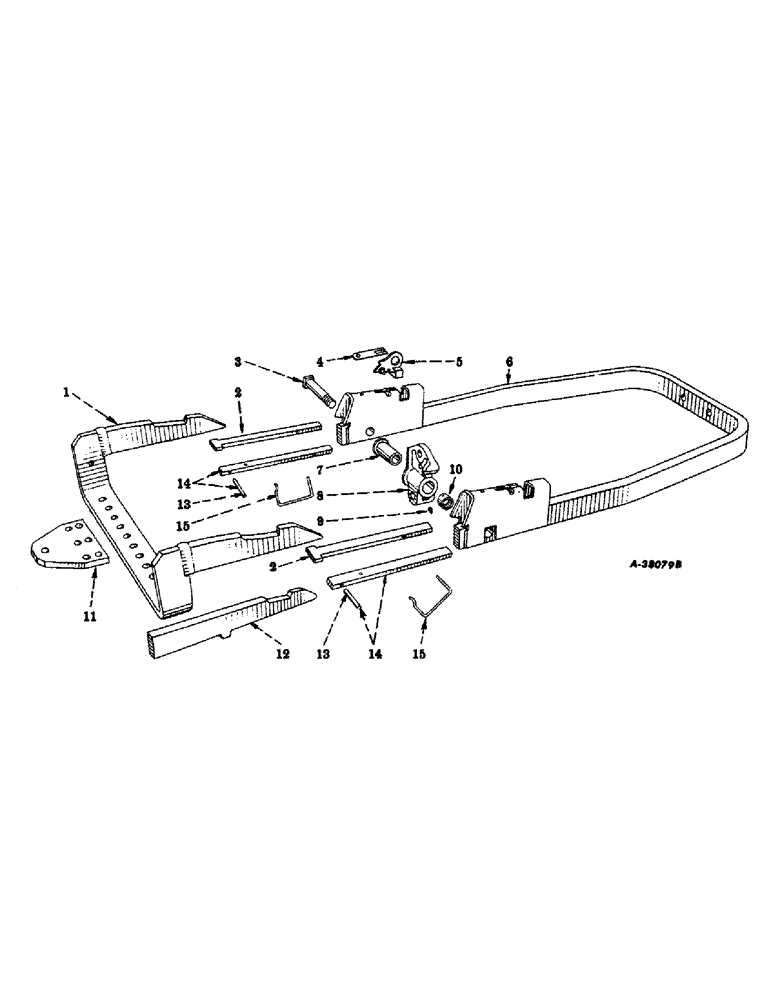

Запчасти Case IH 400-SERIES (423) - ATTACHMENTS, FAST-HITCH WITHOUT TRACTION CONTROL, FARMALL 400 & 400 DIESEL, SPECIAL, DRAWBAR & YOKE Attachments

ATTACHMENT, fast-hitch w/o traction control (order 522858R91)

1шт.

520292R92

1шт.

ATTACHMENT, coupling beam socket filler plate unit (permits use of Farmall Super C, Farmall 200 and 230 Fast-Hitch implements on Farmall 400 or 400 Deisel equipped with fast-hitch w/o traction control) (see note) (consists of two plates, 521090R11 and two retainers, 521074R1)

1шт.

1

520021R11

DRAWBAR

1шт.

2

PLATE, filler (secured by pin passing thru the holes in the beam sockets) (order plate, 521090R11 and two retainers, 521074R1)

2шт.

Q3517

HEADED PIN,1/4" x 2 1/8"

PIN, std-hd., dld., 1/4 x 2-1/8"

2шт.

13042R1

AXLE PIN,1/8" x 3/4"

Pin, Split (Cotter), , self-opening 1/8" x 3/4"

2шт.

2

PLATE, filler (secured by the retainer placed in front of the beam sockets (order plate, 521090R11)

2шт.

3

520050R1

BOLT, lateral link pivot

2шт.

427654

NUT

hex., 1-1/8-12NF

2шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4"

2шт.

520051R1

WASHER, lateral link pivot bolt

2шт.

4

517833R1

SPRING

latch

2шт.

179833

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

517786R11

LATCH

coupling beam, w/pin, 576485R1

2шт.

576485R1

LOCK PIN,1/4" x 1 1/4", Slotted

2шт.

6

520025R92

YOKE, w/two beam sockets

1шт.

7

519954R1

BUSHING, link swivel and stop

2шт.

8

519932R11

SWIVEL AND STOP, link, w/two bushings, 520046R1

2шт.

9

110161

FITTING, lubrication, straight, drive type, 3/16"

2шт.

10

520046R1

BUSHING, lateral link swivel and stop pivot

4шт.

11

363445R1

PLATE, drawbar extension (provides a standardized power-take-off hitch for tractors equipped with fast hitch but not equipped with swinging drawbar)

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

271624

O-RING,0.103" Thk x 2.175" ID, -139, Cl 5, 75 Duro

SCREW, cap, hex-hd., 3/4-10NC x 2-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

12

521021R11

BEAM, coupling (use to adapt allied implements for use with fast hitch by welding this to, or by drilling holes and bolting this to the implement)

1шт.

13

657197R1

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, roll, 1/4 x 2" (used with ref. no. 14)

2шт.

14

521090R11

PLATE, filler w/pin, 657197R1 (will work for 520053R11)

2шт.

15

521074R1

RETAINER, filler plate (placed ahead of the beam sockets)

2шт.
