Запчасти Case IH 400-SERIES (419) - ATTACHMENTS, FIXED DRAWBAR, SPECIAL, FOR ALL HI-CLEAR MODELS Attachments

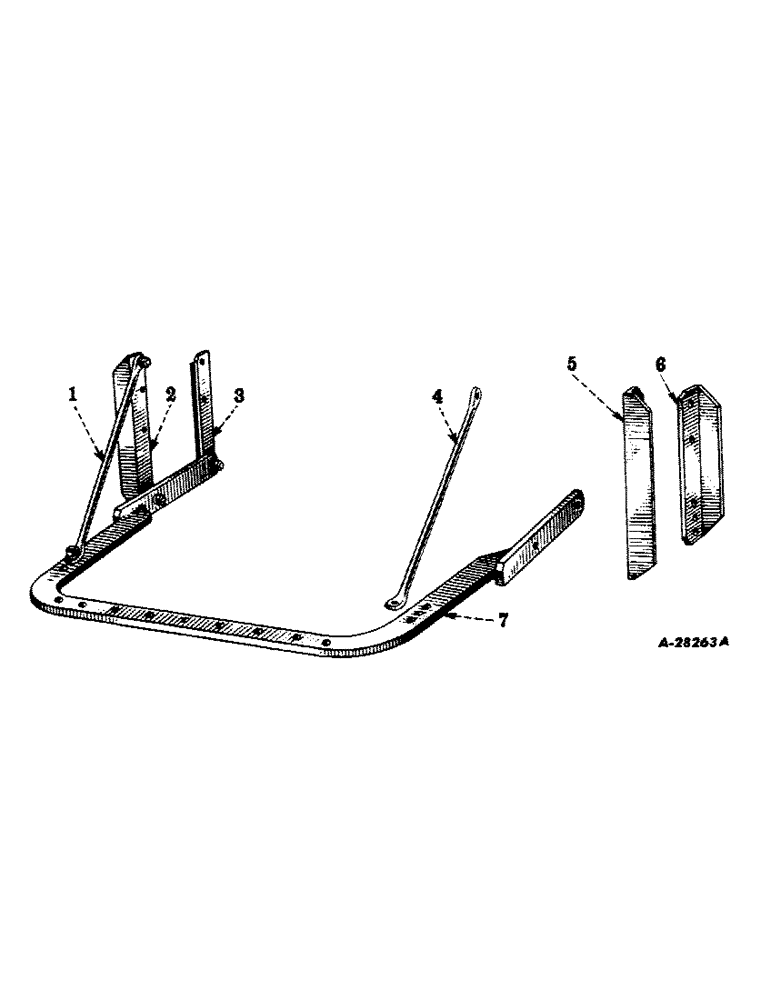

Схема запчастей Case IH 400-SERIES - (419) - ATTACHMENTS, FIXED DRAWBAR, SPECIAL, FOR ALL HI-CLEAR MODELS Attachments
5
6
7
4
2
3
1

Артикул

Название

Примечание

Количество

1

65143D

BRACE, drawbar, L.H.

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

2

65141D

BRACKET, drawbar, rear, L.H.

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

65139D

BRACKET, drawbar, front, L.H.

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

4

65144D

BRACE, drawbar, R.H.

1шт.

220081

NUT

hex., 3/4-10NC

2шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

5

65142D

BRACKET, drawbar, rear, R.H.

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10 NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

6

65140D

BRACKET, drawbar, front, R.H.

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

7

65137DX

DRAWBAR

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10NC

4шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10NC x 2-1/2"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

30011DA

WRENCH, drawbar (illustrated with tools and tool box)

1шт.

Выбрано товаров: 27
