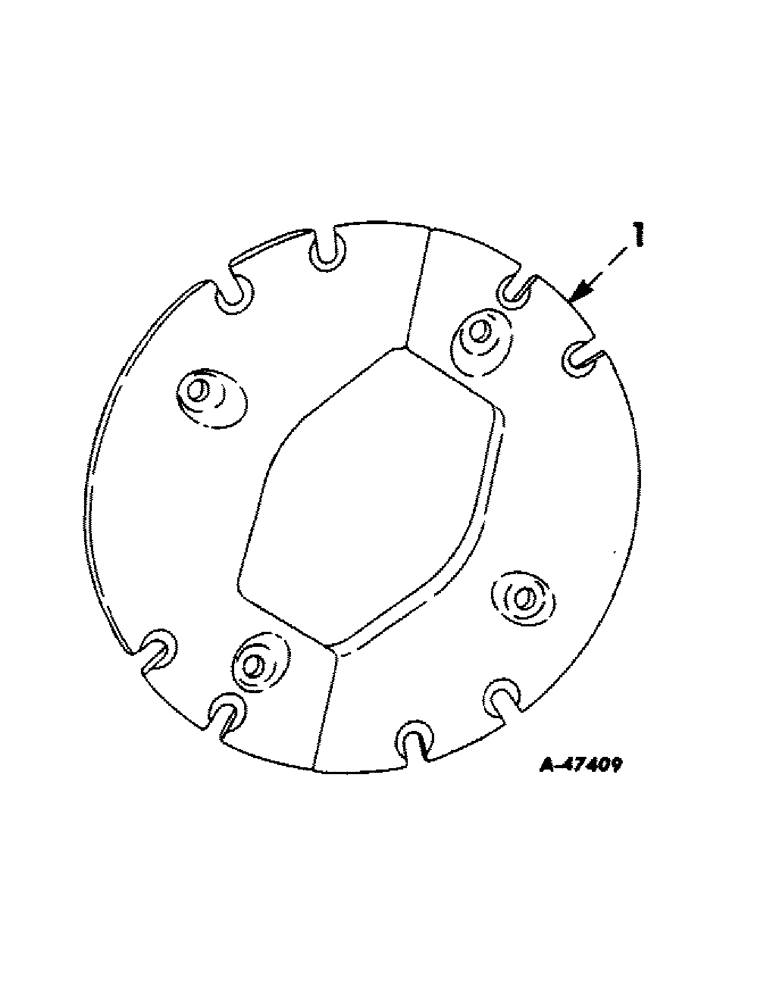

Запчасти Case IH 400-SERIES (415) - ATTACHMENTS, REAR WHEEL WEIGHTS, SPLIT TYPE, SPECIAL, FOR TRACTORS EQUIPPED W/PNEUMATIC TIRES Attachments

1

366109R1

WEIGHT

half rear wheel (approx. 75 lbs.) (A only)

4шт.

366110R1

BOLT,Sq Hd, 3/4" - 10 x 4 3/4"

machine, sq-hd., cd-pltd., 3/4-10NC x 4-3/4" (A only)

8шт.

280954

NUT,3/4"-10, G5

(A only) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam, hex., cd-pltd., 3/4-10NC

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4" (A only)

8шт.

1

366109R1

WEIGHT

half rear wheel (approx. 75 lbs.) (B only)

4шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

machine, sq-hd., cd-pltd., 3/4-10NC x 3-1/4" (B only)

8шт.

280954

NUT,3/4"-10, G5

(B only) 3/4"-10, G5

8шт.

426897

JAM NUT,Jam, 3/4"-10, G5

jam., hex., cd-pltd., 3/4-10NC (B only)

8шт.

366112R1

WASHER

plain, 25/32" ID x 1-1/4" OD x no. 16 ga. (B only)

16шт.

366122R91

BOLT

PACKAGE, hardware, rear wheel weight mounting (first set) (consists of (8) bolt 366110R1, (8) nut 220086, (8) nut 426897, (8) washer 131046)

1шт.

366123R91

BOLT

PACKAGE, hardware, rear wheel weight mounting (second or third set) (consists of (8) bolt 366111R1, (8) nut 220086, (8) nut 426897, (16) washer 366112R1)

1шт.
