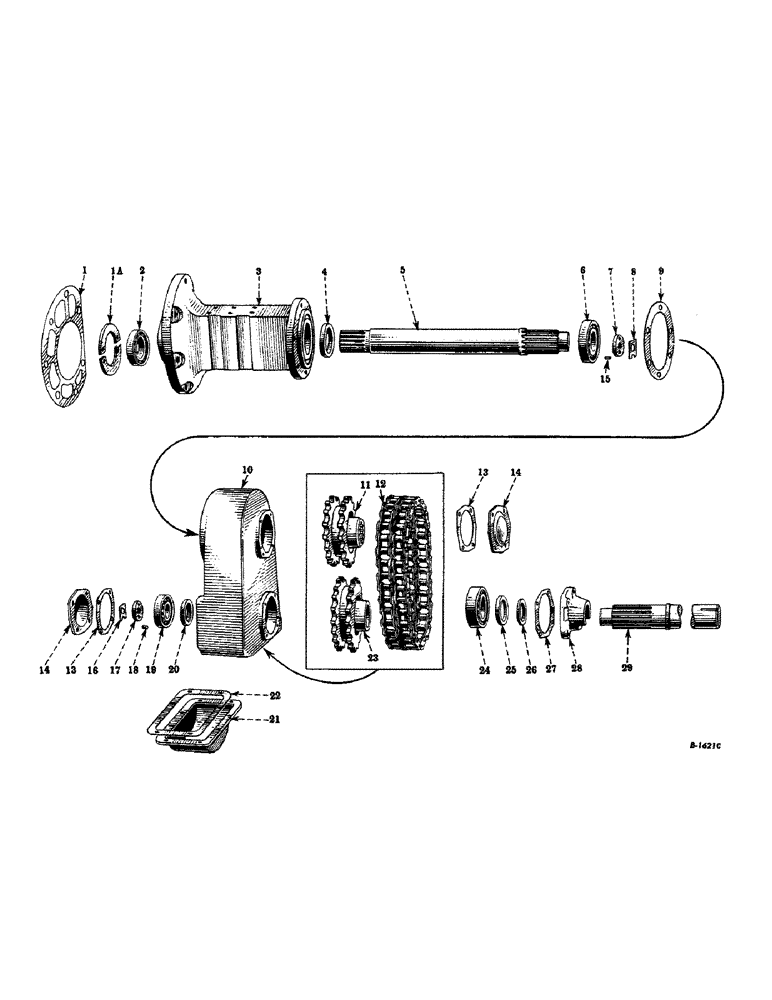

Запчасти Case IH 400-SERIES (307) - CHASSIS, REAR AXLE, (FOR ALL HI-CLEAR TRACTORS) (12) - CHASSIS

1

47670DB

GASKET

rear axle carrier

2шт.

1a

353160R1

RETAINER, rear axle drive sprocket shaft inner ball bearing

4шт.

179882

PIN

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

2

ST223

BALL BEARING

BEARING, ball, rear axle drive sprocket shaft, inner

2шт.

3

9491D

CARRIER, rear axle housing, L.H.

1шт.

3

9492D

CARRIER, rear axle housing, R.H.

1шт.

271563

SUPPORT,Hex, 5/8" - 11 x 2 1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11NC x 2-1/4"

6шт.

361858R1

CAPSCREW,5/8" - 11 x 2 1/2"

SCREW, cap, hex-hd., 5/8-11NC x 2-1/2"

7шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

13шт.

4

65082D

SEAL

OIL SEAL, rear axle and drive sprocket shaft

1шт.

5

65081D

SHAFT, rear axle drive sprocket

2шт.

6

ST229

BALL BEARING,130 mm OD x 31 mm

BEARING, ball, rear axle drive sprocket shaft, outer

2шт.

7

64228DX

WASHER, retainer, rear axle drive sprocket shaft bearing, outer w/pin, 33659D

2шт.

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

2шт.

8

63206D

LOCK WASHER

LOCK, rear axle drive sprocket bearing (outer) retainer washer

2шт.

9

64938D

GASKET, rear axle housing

2шт.

10

350345R11

HOUSING, rear axle, w/plug, 103870 and plug, 103876

2шт.

103870

PLUG, pipe, sq-hd., 1"

2шт.

103876

PLUG, pipe, gsk-hd., 1"

2шт.

11

64936D

SPROCKET, drive, rear axle (17 teeth)

2шт.

12

354005R91

CHAIN (AG)

CHAIN, drive, rear axle

2шт.

13

64939D

GASKET

rear axle housing cover

4шт.

14

9488D

COVER, rear axle housing

4шт.

NLS

NO LONGER SERVICED

16шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

15

33659D

PIN, rear axle sprocket shaft bearing (outer) retainer washer

2шт.

16

63206D

LOCK WASHER

LOCK, rear axle bearing (inner) retainer washer

2шт.

17

67399DX

WASHER, rear axle ball bearing (inner) retainer, w/pin, 33659D

2шт.

14-1224

BOLT,Hex, 3/4" - 16 x 1-1/2", Gr 5

SCREW, cap, hex-hd., 3/4-16NF x 1-1/2"

2шт.

18

33659D

PIN, rear axle bearing (inner) retainer washer

2шт.

19

ST220

BALL BEARING,39.83mm ID x 110mm OD x 27mm W

BEARING, ball, rear axle, inner

2шт.

20

65073D

SPACER, rear axle bearing

2шт.

21

350346R11

PAN, rear axle housing, w/plug, 103879

2шт.

103879

PLUG, pipe, sq-hd., 3/8"

2шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

8шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

16шт.

22

350347R1

GASKET

rear axle housing pan

2шт.

23

65074DA

SPROCKET, rear axle (18 teeth)

2шт.

24

73653R91

BEARING ASSY,75 mm ID x 130 mm OD x 1.628"

ball, rear axle, outer

2шт.

25

360457R91

SEAL

OIL SEAL, rear axle

2шт.

26

45085D

SEALING WASHER

WASHER, felt, rear axle

2шт.

27

65076D

GASKET

rear axle housing cap

2шт.

28

9490DXA

HOUSING

CAP, rear axle housing, w/oil seal, 360457R91 and washer, 45085D

2шт.

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 1-3/4"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

29

64954DC

AXLE, rear

2шт.

354003R91

LINK, rear axle drive chain connecting

1шт.

354004R91

LINK, rear axle drive chain roller

1шт.
