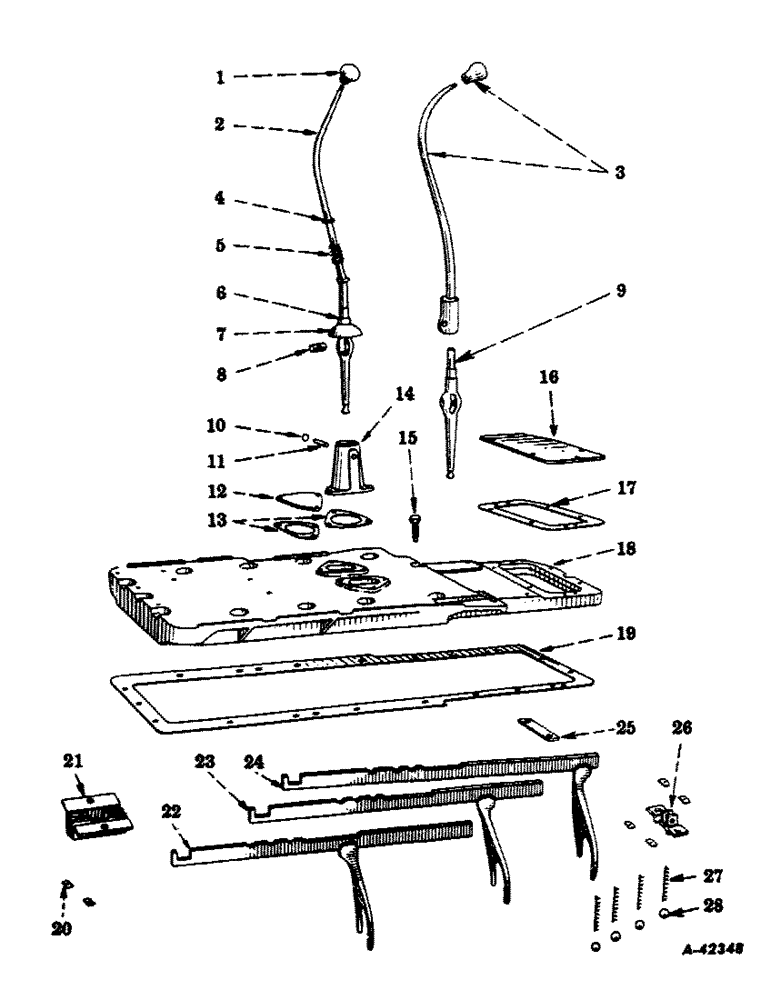

Запчасти Case IH 400-SERIES (281) - CHASSIS, GEAR SHIFTER MECHANISM AND REAR FRAME COVER, FORWARD OPERATION (12) - CHASSIS

1

53717DA

BUTTON

KNOB, gear shift lever

1шт.

2

361800R12

LEVER, gear shift (not used on tractors equipped with cotton picker)

1шт.

103027

NUT, hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

364161R11

HANDLE, gear shift lever, w/ball, 53717DA (for tractors equipped with cotton picker mounting parts)

1шт.

271505

BODY

hex., 7/16-20NF

1шт.

181403

SCREW,Hex, 7/16" - 20 x 1 3/4"

cap, hex-hd., 7/16-20NF x 1-3/4"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

4

1657E

STOP

gear shift lever spring

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

5

29547D

SPRING

gear shift lever

1шт.

6

20887DA

BUSHING, gear shift lever swivel housing shield (used with 42496DXA)

1шт.

7

42496DXA

SHIELD, gear shift lever swivel housing, w/bushing, 20887DA (sheet steel) (order 355889R2)

1шт.

7

355889R2

SHIELD

gear shift lever swivel housing (aluminum) (will work for 42496DXA)

1шт.

8

256918R11

DOWEL

SHAFT, gear shift swivel, large, w/two plugs, 172529

1шт.

9

364162R1

LEVER

END, gear shift lever (for tractors equipped with cotton picker mounting parts)

1шт.

10

172529

PLUG

expansion, 5/8" (gear shift lever swivel shaft hole)

2шт.

11

256919R11

HITCH PIN

SHAFT, gear shift swivel, small, w/two plugs, 172529

1шт.

12

361802R1

COVER, gear shift opening

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

13

361687R1

GASKET

gear shift swivel housing and opening cover

2шт.

14

361569R21

HOUSING, gear shift swivel, w/two plugs, 172529

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

15

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

(Used on tractors with pneumatic tires to plug fifth speed lockout screw hole) Hex, 3/8"-16 x 3/4", G5, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

49637D

SCREW, fifth speed lockout (used on tractors equipped with steel wheels)

1шт.

16

49053DB

COVER

belt pulley drive opening (will work for 365128R1)

1шт.

179882

PIN

SCREW, cap, hex-hd., 1/2-13NC x 1-1/8"

2шт.

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 1/2-13NC x 2-1/4"

4шт.

17

49054DB

GASKET

pulley drive opening cover

1шт.

18

361566R31

COVER, rear frame, w/screw, 179837 and washer, 103321

1шт.

103386

COTTER PIN,1/8" x 1 1/4"

Pin, Split (Cotter), 1/8" x 1 1/4"

1шт.

179870

BOLT,Hex, 7/16" - 14 x 3", Gr 5

SCREW, cap, hex-hd., 7/16-14NC x 3"

10шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

19

361368R2

GASKET

rear frame cover

1шт.

20

59473D

LOCK

shifter rail guide bolt

6шт.

21

355739R91

GUIDE

gear shifter rail, rear

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

22

360275R11

FORK and RAIL, first and reverse speed shifter

1шт.

23

360276R11

FORK and RAIL, second and third speed shifter

1шт.

24

360277R11

RAIL

FORK and RAIL, fourth and fifth speed shifter

1шт.

25

358887R1

PLATE, stop, gear shifter rail

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

26

358888R91

GUIDE

gear shifter rail, front

1шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

27

41058DA

SPRING

gear shifter poppet

4шт.

28

D2616

BALL

POPPET, gear shifter (optional with 13722D)

4шт.

28

13722D

BALL

POPPET, gear shifter (optional with D2616)

4шт.
