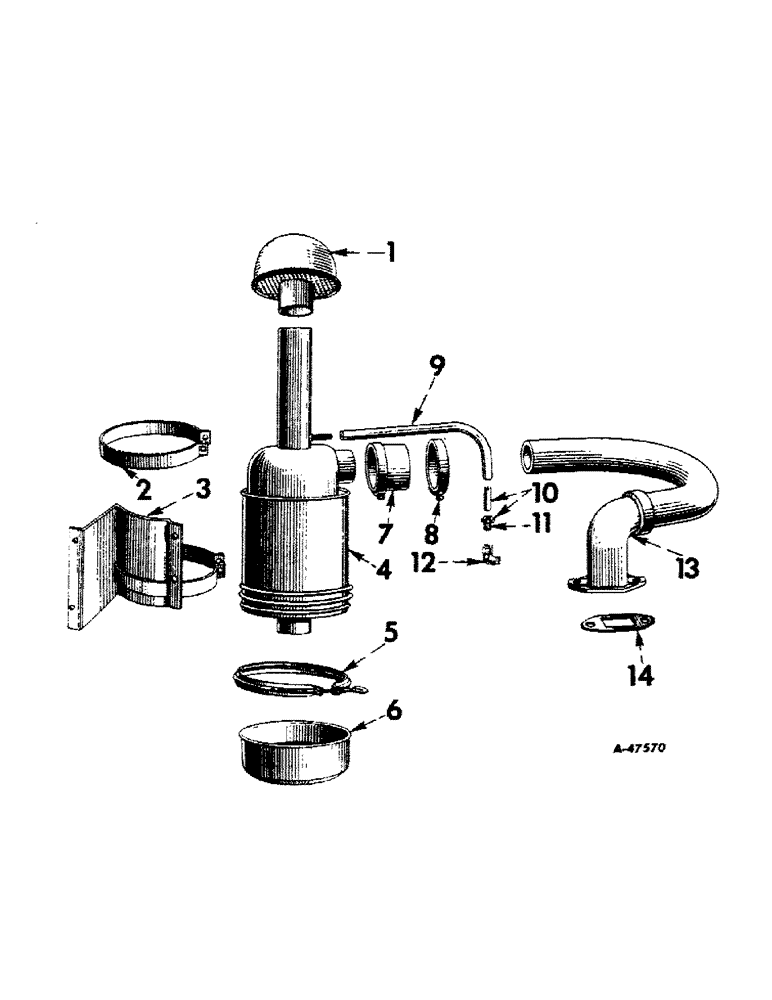

Запчасти Case IH 400-SERIES (244) - CHASSIS, AIR CLEANER & CONNECTIONS (12) - CHASSIS

357659R92

CLEANER, air, assembly (7") composed of (1) body 357716R92, (1) clamp (54269D, (1) cup 355444R92

1шт.

364324R91

CLEANER, air, assembly (7") (for tractors equipped with cotton picker) composed of (1) body 365445R91, (1) clamp 54269D, (1) cup 355444R92

1шт.

1

353018R92

CYLINDER END CAP

CAP, air intake

1шт.

2

53051DX

BAND, air cleaner bracket, w/nut, 105605 and screw, 117296

2шт.

25-285

SQUARE NUT,Sq, 5/16"-18

sq-hd., 5/16-18NC

2шт.

117296

SCREW, slt-fil-hd., 5/16-18NC x 1-1/2"

2шт.

3

60927D

BRACKET, air cleaner

1шт.

102635

NUT,3/8"-16, G5

2шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

2шт.

413-622

BOLT,Hex, 3/8" - 16 x 1-3/8", Gr 5

cap, hex-hd., 3/8-16NC x 1-3/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

4

357716R92

BODY, air cleaner

1шт.

4

365445R91

BODY, air cleaner (for tractors equipped with cotton picker)

1шт.

5

54269D

CLAMP, oil cup retaining

1шт.

6

355444R92

CUP, oil

1шт.

7

362762R1

INTAKE AIR HOSE,2.25" ID x 2.25", SAE 20R1 Class R

Air Cleaner Pipe 2.25" ID x 2.25", SAE 20R1 Class R

1шт.

8

45813D

CLAMP

air cleaner pipe hose

2шт.

9

365745R1

HOSE, cylinder head to air cleaner breather pipe

1шт.

10

364252R11

PIPE, breather, cylinder head to air cleaner hose, w/nut, 37165D

1шт.

11

222-504

TUBE NUT,9/16"-20

NUT, hi-duty fitting, brs., 3/8" OD tubing

1шт.

12

57736D

ELBOW, air cleaner to cylinder head breather pipe (cylinder head end)

1шт.

13

365743R11

PIPE, and elbow, air cleaner

1шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

14

54040D

GASKET

GASKET, air cleaner pipe elbow

1шт.
