Запчасти Case IH 400-SERIES (388) - ATTACHMENTS, PRE-CLEANERS, SPECIAL Attachments

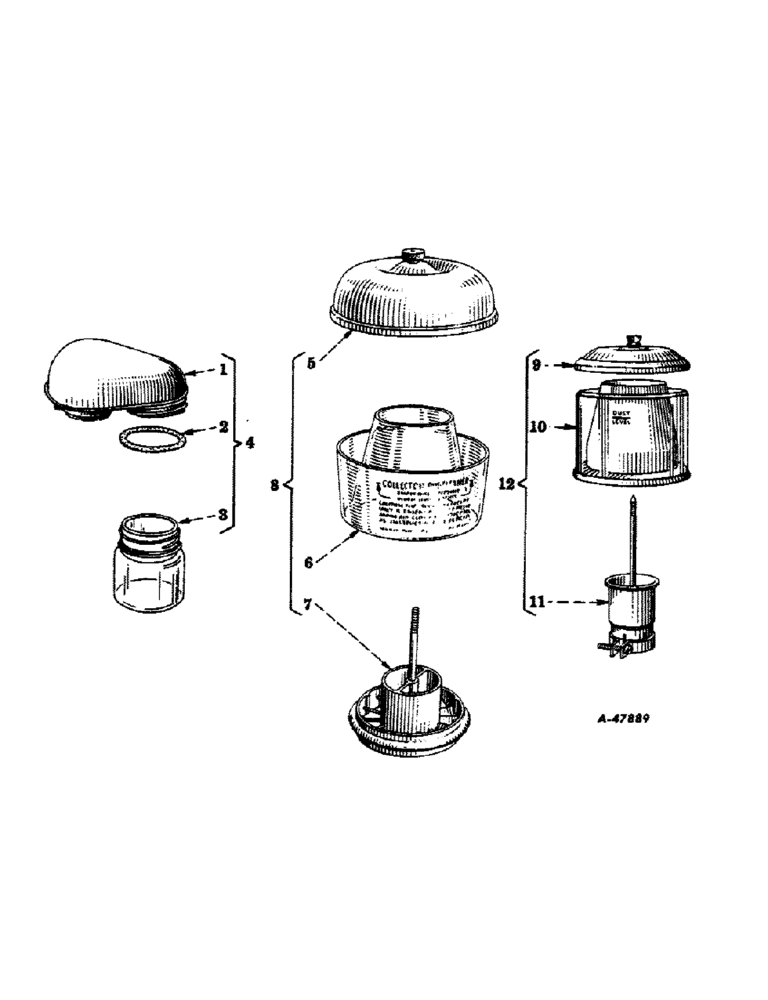

Схема запчастей Case IH 400-SERIES - (388) - ATTACHMENTS, PRE-CLEANERS, SPECIAL Attachments
7
4
1
3
12
9
5
2
10
6
8
11

Артикул

Название

Примечание

Количество

1

63712D

BODY, collector, w/clamp, nut and screw (order 365261R91)

1шт.

2

66776D

GASKET

dust jar (used with 59096D)

1шт.

3

54082D

BOWL

JAR, dust (used with 59096D)

1шт.

3

54082DGV

BOWL

Value, Dust Jar

1шт.

4

59096D

PRE-CLEANER, assembly (collector type, w/jar) (order 365261R91)

1шт.

5

365412R91

COVER

CAP, top, w/nut

1шт.

6

365413R1

BOWL

BODY, dust receptacle

1шт.

7

365414R91

SLEEVE

w/bolt

1шт.

8

365261R91

PRECLEANER

PRE-CLEANER, assembly (will work for 59096D) (optional with 357867R91) (composed of (1) body 365413R1, (1) cap 365412R91, (1) sleeve 365414R91)

1шт.

9

361412R91

CAP, top, w/nut, pre-cleaner (detachable sleeve type)

1шт.

10

361413R91

BODY, pre-cleaner (detachable sleeve type)

1шт.

11

361415R91

SLEEVE

w/clamp, nut, 114380, screw, 1143589 and stud, pre-cleaner (detachable sleeve type)

1шт.

114380

NUT

square, 1/4-20NC, pre-cleaner (detachable sleeve type)

1шт.

114359

SCREW, machine, slotted-fil-hd., 1/4-20NC x 1-1/4", pre-cleaner (detachable sleeve type)

1шт.

12

357867R91

PRECLEANER

PRE-CLEANER, assembly (optional with 365261R91) (composed of (1) body 361413R91, (1) cap 361412R91, (1) sleeve 361415R91), (detachable sleeve type)

1шт.

Выбрано товаров: 15
