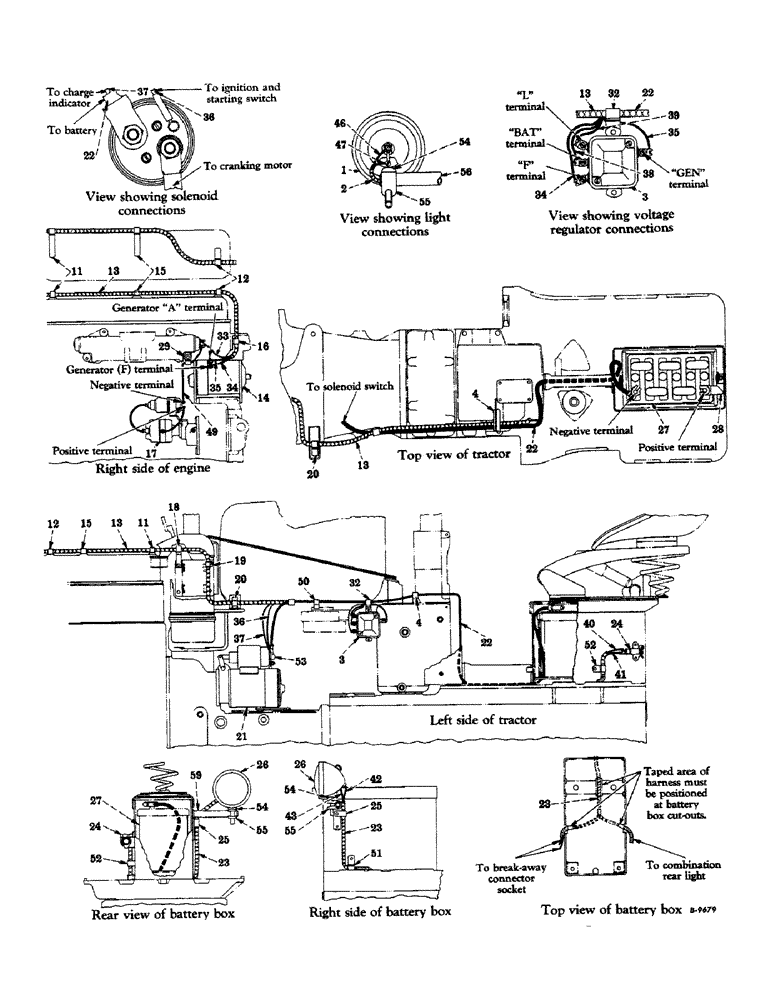

Запчасти Case IH 400-SERIES (200) - ELECTRICAL SYSTEM, DIESEL ENGINE, STARTING & LIGHTING, BATTERY IGNITION (06) - ELECTRICAL SYSTEMS

1

357885R94

LAMP

HEADLIGHT, sealed beam (12 volt) (for components see list of parts under detail of "Headlight")

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

2

362011R91

HARNESS

headlight cable

1шт.

179854

SCREW,Hex, 7/16" - 14 x 5/8"

cap, hex-hd., 7/16-14NC x 5/8" (ground bolt)

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

360899R91

REGULATOR

voltage (12 volt) (Delco-Remy 1118779) (for components see list of parts under detail of "Voltage Regulator")

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

4

362666R1

CLIP

(on universal control valve column front L.H. mounting bolt)

1шт.

5

127934

BELT, TRANSMISSION

LAMP, instrument light (2CP-12-16 volt)

1шт.

6

360053R91

INDICATOR

charge

1шт.

7

432281

HOLE PLUG BUTTON,29/32"

PLUG, dust, cigarette lighter hole

1шт.

8

361998R93

SWITCH

ignition lock and starting (for components see list of parts under detail of "Ignition and Starting Switch") (order switch assembly, 300557R91)

1шт.

8

300557R91

SWITCH

ignition lock and starting, assembly (not illustrated) (will work for 361998R93)

1шт.

9

363131R91

SWITCH

lighting (for components see list of parts under detail of "Lighting Switch")

1шт.

141706

WASHER

lock, internal-tooth, 11/16"

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

1шт.

10

362669R91

HOUSING

fuse, w/knob., 356445R91

1шт.

11

362126R1

CLIP

(on rear valve cover stud)

1шт.

12

362123R1

CLIP

(on front valve cover stud)

1шт.

13

362008R91

HARNESS, cable

1шт.

14

355694R91

GENERATOR (12 volt) (Delco-Remy 1100964) (for components see list of parts under detail of "Generator")

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

362126R1

CLIP

(on center valve cover stud)

1шт.

16

362123R1

CLIP

(on water outlet elbow, R.H. mounting bolt)

1шт.

17

356610R92

UNIT

battery ignition (for components see list of parts under detail of "Battery Ignition" unit)

1шт.

18

362123R1

CLIP

(on air cleaner mounting bracket front upper L.H. mounting bolt)

1шт.

19

362122R1

CLIP

(on air cleaner mounting bracket rear upper L.H. mounting bolt)

1шт.

20

362717R91

CLIP (on bottom hood sheet center bracket mounting bolt, L.H. side)

1шт.

113956

WASHER,Slotted Rd Hd, 1/4"-20 x 5/8"

machine, slotted-rd-hd., 1/4-20NC x 5/8"

1шт.

115547

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

21

364932R91

MOTOR, cranking, assembly (12 volt) (will work for 361983R91)

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

22

362719R92

CABLE

battery to solenoid switch, w/bolt, 356062R91, and cover, 364910R1

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

23

362012R92

HARNESS

break-away connector socket cable

1шт.

24

362002R92

SOCKET

electrical break-away connector

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

25

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP (on rear light mounting bracket, upper bolt)

1шт.

26

361986R93

LAMP

LIGHT, combination rear light and tail light (12 volt) (for components see list of parts under detail "Combination Rear Light and Tail Light")

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

27

368537R91

BATTERY (auto-lite) (will work for 358907R91 and 360036R91)

1шт.

28

358987R92

CABLE

STRAP, battery to ground, w/bolt, 356062R91

1шт.

356062R91

BOLT

terminal, w/nut, sleeve and washer

1шт.

29

263308R91

CLIP (on front lower mounting bolt of intake manifold)

1шт.

446211

WASHER, plain, 7/16" I.D. x 7/8" O.D. x 1/16"

1шт.

30

CLIP, part of shroud

1шт.

31

CLIP, part of shroud

1шт.

32

363118R1

CLIP (on upper voltage regulator mounting bolt)

1шт.

33

CABLE, ignition lock and starting switch "IGN" terminal to manifold switch (black) (order harness, ref. no. 13)

1шт.

34

CABLE, regulator "F" terminal to generator "F" terminal (yellow) (order harness, ref. no. 13)

1шт.

35

CABLE, regulator "GEN" terminal to generator "A" terminal (light blue) (order harness, ref. no. 13)

1шт.

36

CABLE, ignition lock and starting switch "SOL" terminal to solenoid switch (orange) (order harness, ref. no. 13)

1шт.

37

CABLE, charge indicator to solenoid switch (red) (order harness, ref. no. 13)

1шт.

38

CABLE, charge indicator to regulator "BAT" terminal (gray) (order harness, ref. no. 13)

1шт.

39

CABLE, ignition lock and starting switch "BAT" terminal to regulator "L" terminal (light green) (order harness, ref. no. 13)

1шт.

40

CABLE, lighting switch to break-away connector socket (black) (order harness, ref. no. 23)

1шт.

41

CABLE, break-away connector socket to ground (pink) (order harness, ref. no. 23)

1шт.

42

CABLE, lighting switch to combination rear light and tail light (black) (order harness, ref. no. 23)

1шт.

43

CABLE, combination rear light and tail light to ground (pink) (order harness, ref. no. 23)

1шт.

44

CABLE, fuse housing to ignition lock and starting switch "BAT" terminal (used with 362669R91)

1шт.

45

CABLE, fuse housing to lighting switch (used with 362669R91)

1шт.

46

CABLE, lighting switch to headlight (black) (order harness, ref. no. 2)

1шт.

47

CABLE, headlight to ground (pink) (order harness, ref. no. 2)

1шт.

48

362001R91

SOCKET

instrument light, w/cable

1шт.

49

266768R91

CABLE, manifold, Serial Range: switch-coil

1шт.

50

362668R1

CLIP, cable harness (for triple valve hydraulic system) (on hydraulic junction block bracket)

1шт.

51

362121R1

CLIP

(on battery box, RH side)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

52

362121R1

CLIP

(on battery box, LH side)

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

53

364910R1

BOOT

COVER, solenoid terminal

1шт.

54

49069D

SPACER

headlight or rear light

3шт.

55

350920R1

CLAMP

headlight or rear light

3шт.

56

361994R1

PIPE, headlight support

2шт.

57

361992R91

BRACKET, headlight support, RH

1шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-24NC thread) (see note B)

4шт.

58

361989R91

BRACKET, headlight support, LH

4шт.

362593R91

CAPTIVE WASHER SCREW,Truss HD, 5/16" x 5/8"

SCREW, headlight support bracket, w/washer (5/16-24NF thread) (see note A)

4шт.

362664R91

SCREW,Truss HD, 5/16" - 18 x 5/8"

headlight support bracket, w/washer (5/16-24NC thread) (see note B)

4шт.

59

361995R12

BRACKET, rear light support

1шт.

181360

BOLT,Hex, 3/8" - 24 x 3/4", Gr 5

SCREW, cap, hex-hd., 3/8-24NF x 3/4"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

10815V

FUSE

10 ampere

1шт.
