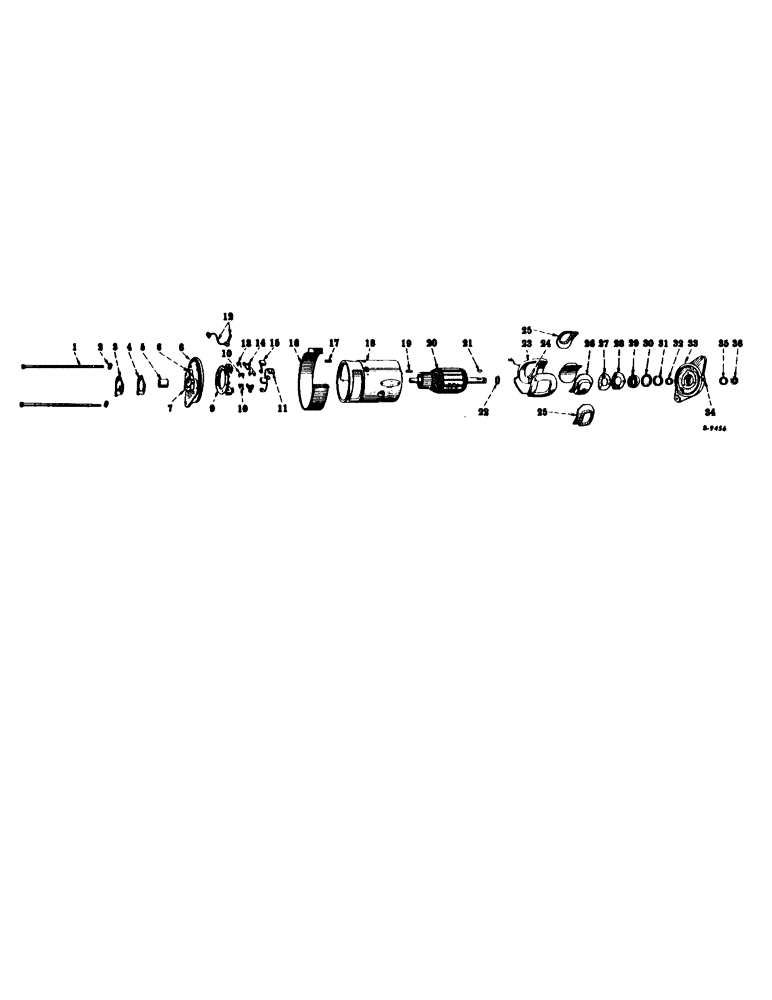

Запчасти Case IH 350 (092) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR, DELCO-REMY (06) - ELECTRICAL SYSTEMS

1

BOLT, thru (Mfr. 815018)

2шт.

2

WASHER, lock, heavy, cd-pltd., 5/16" (Mfr. 120638)

2шт.

3

PLAGE, cover, commutor end frame (Mfr. 820524)

1шт.

SCREW, commutor end frame cover plate (Mfr. 1886496)

3шт.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. 121841)

3шт.

4

GASKET, commutor end frame cover plate (Mfr. 817220)

1шт.

5

BUSHING, commutor end (not serviced separately - order Ref. no. 8)

1шт.

6

OILER, commutor end, w/cap and spring (Mfr. 1880635)

1шт.

WICK, commutor end oiler (Mfr. 804076)

1шт.

7

PLUG, commutor end oiler wick (Mfr. 1911097)

1шт.

8

FRAME, commutor end, assembly (Mfr. 1913564) (composed of (1) bushing (NSS), (1) pin 809062, (1) frame (NSS) (1) plug 1911097, (1) oiler 1880635, (1) wick 804076)

1шт.

9

PLATE, brush, w/three brush holders (A only)

1шт.

9

(Mfr. 1913565) (B, C only)

1шт.

SCREW, brush plate attaching (Mfr. 188496)

3шт.

WASHER, lock, medium, cd-pltd., no. 8 (Mfr. 121841)

3шт.

10

SPRING, brush main (Mfr. 1850760)

2шт.

11

BRUSH, main (Mfr. 1866148)

2шт.

SCREW, slotted-rd-hd., cd-pltd., no. 6-32NC x 1/4" (Mfr. 132688)

2шт.

WASHER, lock, brush attaching screw (Mfr. 1904377)

2шт.

12

POLE, armature terminal (includes lead, stud, 1858751 and terminal (Mfr. 1858754)

1шт.

BUSHING, insulating, terminal stud (Mfr. 1885090)

1шт.

NUT, hex., cd-pltd., no. 12-24NC (Mfr. 121743)

2шт.

STUD, armature terminal (Mfr. 1858751)

1шт.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

WASHER, terminal stud (Mfr. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr. 1858753)

1шт.

13

SPRING, brush, third (Mfr. 1850767)

1шт.

14

HOLDER, brush (Mfr. 1850759)

3шт.

WASHER, plain, brush holder space (Mfr. 1857412)

3шт.

15

BRUSH, third (Mfr. 1850768) (A only)

1шт.

15

BRUSH, thrid (Mfr. 1906940) (B and C only)

1шт.

SCREW, slotted-rd-hd., cd-pltd., no. 6-32 NC x 1/4" (Mfr. 132688)

1шт.

WASHER, lock, brush lead attaching screw (Mfr. 1904377)

1шт.

16

BAND, cover, w/nut, 120614 and screw, 132930 (Mfr. 1872638) (C only)

1шт.

16

1872638

BAND

cover, w/nut, 120614 and screw 132926 (Mfr. 1872638) (A and B only)

1шт.

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1-1/2" (Mfr. 132930) (C only)

1шт.

SCREW, machine, slotted-rd-hd., cd-pltd., no. 10-32 NF x 1-1/4" (Mfr. 132926) (A and B only)

1шт.

NUT, hex., cd-pltd., no. 10-32 NF (Mfr. 120614)

1шт.

17

PIN, dowel, commutor end frame (Mfr. 809062)

1шт.

18

FRAME, (Not serviced separately)

1шт.

19

PIN, dowel, drive end frame (Mfr. 809593)

1шт.

20

ARMATURE, (Mfr. 1913560) (A only)

1шт.

20

ARMATURE, (Mfr. 1921351) (B only)

1шт.

20

ARMATURE, (Mfr. 817807) (C only)

1шт.

21

KEY, Woodruff, alloy-stl., 1/8 x 5/8" (drive end) (Mfr. 124545)

1шт.

22

WASHER, space, drive end (Mfr. 809945)

1шт.

23

COIL SET, field, w/insulator, 1914491, stud, 1858751 and terminal (Mfr. 1913554)

1шт.

24

STUD, field terminal (Mfr. 1858751)

1шт.

BUSHING, insulating, terminal stud (Mfr. 1885090)

1шт.

NUT, hex., cd-pltd., no. 12-24 NC (Mfr. 121743)

2шт.

WASHER, lock, terminal stud (Mfr. 1904661)

2шт.

WASHER, terminal stud (Mfr. 1881409)

1шт.

WASHER, insulating, terminal stud (Mfr. 1858753)

1шт.

25

INSULATOR, field coil (Mfr. 1914491)

2шт.

26

SHOE, pole (Mfr. 1914618)

2шт.

SCREW, pole shoe (Mfr. 1843646)

2шт.

27

PLATE, ball bearing retainer (Mfr. 1911263)

1шт.

SCREW, bearing retainer plate (Mfr. 1904370)

3шт.

WASHER, lock, bearing, retainer plate screw (Mfr. 1880781)

3шт.

28

GASKET, ball bearing retainer plate (Mfr. 1912008)

1шт.

29

BEARING, ball (drive end) (Mfr. 954378)

1шт.

30

RETAINER, drive and felt washer (Mfr. 819104)

1шт.

31

WASHER, felt, drive end (Mfr. 809961)

1шт.

32

SPACER, pulley (Mfr. 817224)

1шт.

33

FRAME, drive end, w/oiler, 1880641 (Mfr. 1873830)

1шт.

34

OILER, drive end bearing, w/cap and spring (Mfr. 1880641)

1шт.

35

WASHER, lock, drive end shaft nut (Mfr. 804000)

1шт.

36

NUT, drive end shaft (Mfr. 1914308) (A only)

1шт.

36

NUT, drive end shaft (Mfr. 806915) (B and C only)

1шт.
