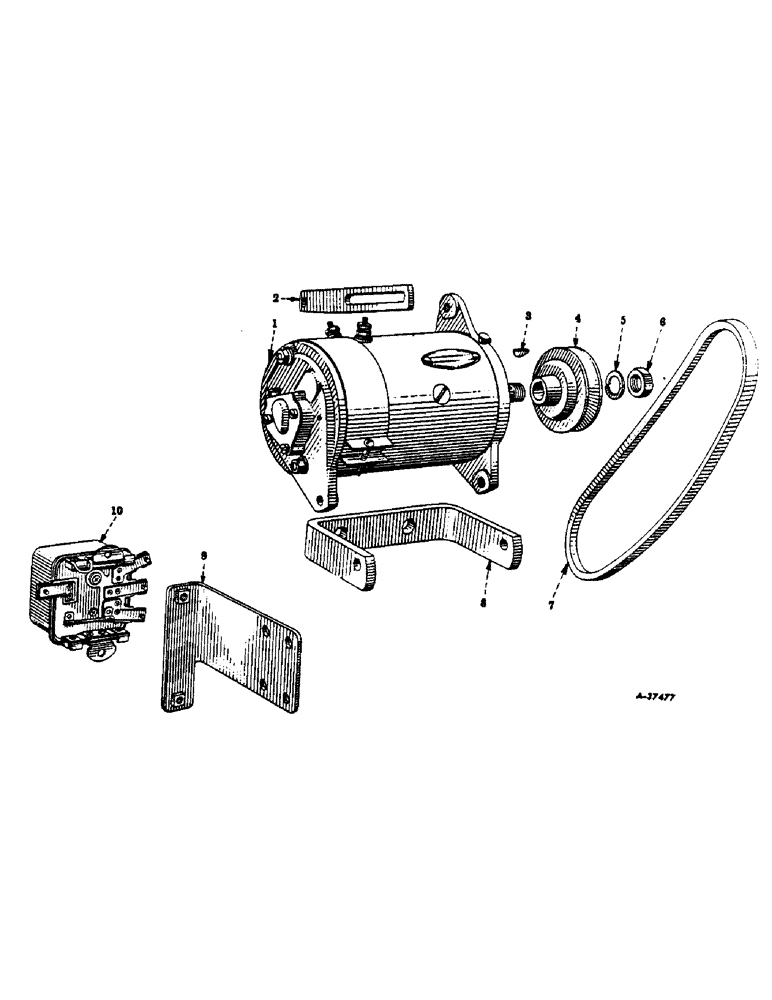

Запчасти Case IH 350 (090) - ELECTRICAL SYSTEM, CARBURETED ENGINE, GENERATOR AND CONNECTIONS (06) - ELECTRICAL SYSTEMS

1

362657R91

SPARE PART GENERATOR, assembly (6 volt) (for distillate, gasoline, and kerosene burning engine) (for components see list of parts under details of "Generator")

1шт.

1

363727R91

SPARE PART GENERATOR, assembly (12 volt) (for liquefied petroleum gas burning engine) (for components see list of parts under details of "Generator")

1шт.

1

103814A1R

REMAN-GENERATOR

Generator

1шт.

1

103814A1C

CORE-GENERATOR

Return Number

1шт.

1

103820A1R

REMAN-GENERATOR

Generator

1шт.

1

103820A1C

CORE-GENERATOR

Return Number

1шт.

9635082

NUT,5/16" - 18, Gr 5

NUT, 5/16"-18, G5

2шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

BOLT, (1 used on tractors with power steering) Hex, 5/16"-18 x 1 1/8", G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

2

362658R1

BAR

BRACE, generator

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

BOLT, Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

95-11034

WASHER,1/4"

WASHER, plain, 11/32" I.D. x 11/16" O.D. x no. 16 ga

1шт.

3

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

4

363366R1

PULLEY

PULLEY, generator

1шт.

5

WASHER, lock, armature shaft nut (Delco-Remy 804000)

1шт.

6

NUT, armature shaft (Delco-Remy 806915)

1шт.

7

362828R1

V-BELT,0.50" W

Generator

1шт.

8

362659R1

SPARE PART BRACKET, generator

1шт.

179858

SUPPORT

SCREW, cap, hex-hd., 7/16-14NC x 1"

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

9

363036R11

SPARE PART BRACKET, voltage regulator mounting

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

BOLT, cap, hex-hd., 3/8-16NC x 7/8" (See note)

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (See note) 3/8"

4шт.

10

360898R91

REGULATOR

REGULATOR, voltage, assembly (6 volt) (for distillate, gasoline, and kerosene burning engine) (for components see list of parts under details of "Voltage Regulator")

1шт.

10

360899R91

REGULATOR

REGULATOR, voltage, assembly (12 volt) (for liquefied petroleum gas burning engine) (for components see list of parts under details of "Voltage Regulator")

1шт.

179788

SHEET

SCREW, cap, hex-hd., 1/4-20NC x 5/16"

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.
