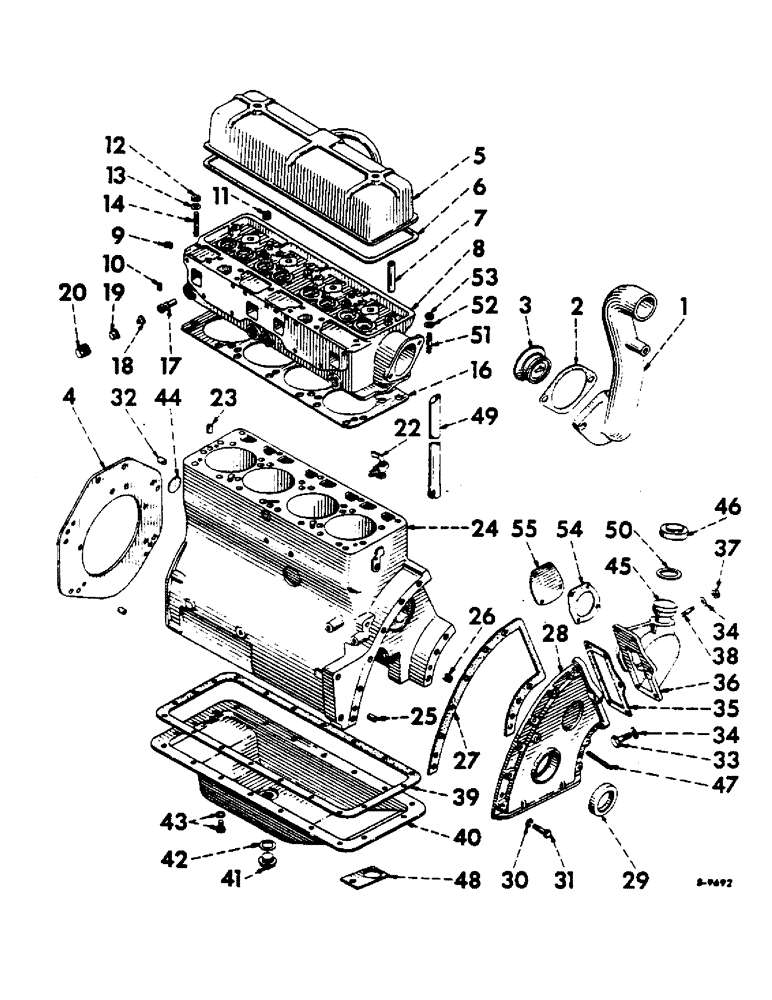

Запчасти Case IH 350 (052) - DIESEL ENGINE, CRANKCASE, CYLINDER HEAD, VALVE AND GEAR COVERS (01) - ENGINE

1

367377R1

ELBOW, water outlet

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

SCREW, cap, hex-hd, 3/8-16NC x 1-3/4"

1шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

2

367378R1

GASKET, water outlet elbow

1шт.

3

367379R91

THERMOSTAT

1шт.

4

367430R1

PLATE, rear end

1шт.

413-716

BOLT,Hex, 7/16" - 14 x 1", Gr 5

SCREW, cap, hex-hd, 7/16-14NC x 1"

5шт.

179860

BOLT,Hex, 7/16" - 14 x 1 1/4", Gr 5

SCREW, cap, hex-hd, 7/16-14NC x 1-1/4"

2шт.

271558

HOOD,Hex, 5/8" - 11 x 1 1/2", Gr 5

SCREW, cap, hex-hd, 5/8-11 x 1-1/2" (to clutch housing) (5 used on tractors equipped with hydra-touch system)

8шт.

114607

LOCK, Ext Tooth, 7/16"

6шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

5

367468R1

COVER, valve

1шт.

102635

NUT,3/8"-16, G5

2шт.

93-41039

LOCK WASHER,Ext Tooth, 3/8"

WASHER, lock, external tooth, 3/8"

2шт.

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no 16 ga

4шт.

934662R1

SEALING RING,10mm ID x 14mm OD x 1mm Thk

GASKET, annular, copper and asbestos, 3/8"

2шт.

6

367469R1

CYLINDER HEAD GASKET

cylinder head cover

1шт.

7

367443R1

TUBE, no. 2 and no. 3 intake valve push rod

2шт.

7

367444R1

TUBE, exhaust valve and no. 1 and no. 4 intake valve push rod

6шт.

8

367715R91

HEAD (CYLINDER)

HEAD, cylinder, 367441R91, w/valves and gasket, 367467R1

1шт.

8

367441R91

1шт.

HEAD, cylinder, w/valves, assembly (composed of (4) body 367456R1, (4) retainer 367450R1, (4) cap 367457R1, (4) retainer 367451R1, (4) gasket 367454R1, (4) retainer 367455R1, (8) guide 367448R1, (4) retainer 367458R1, (1) head (NSS), (8) spring 367449R1, (4) insert 367447R1, (4) stud 107785R1, (16) lock 367452R1, (8) stud 367442R1, (1) plug 103868, (1) stud 43198V, (1) plug 103883, (2) tube 367443R1, (1) plug 116566, (6) tube 367444R1, (3) plug 143999, (4) valve 367445R1, (1) plug 121956R1, (4) valve 367446

1шт.

217-519

DRAIN PLUG,Sq Hd, 1/2"-14 NPTF

PLUG, , Pipe, C.I. (Thermo-couple hole) Sq Hd, 1/2"-14 NPTF

1шт.

116566

PLUG

pipe, sq-socket, stl, 1/2" (core vent hole)

1шт.

9

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , Stl. (Oil gallery) Slotted, Headless, 1/8" NPT

1шт.

10

121956R1

PLUG, cylinder head fuse

1шт.

11

143999

PLUG

pipe, sq-socket., stl., 3/4"

3шт.

12

120371

NUT,1/2"-20, G5

20шт.

13

122025R1

WASHER, cylinder head to crankcase stud (1/2" ID)

20шт.

14

367410R1

STUD, cylinder head, 1/2" dia. x 2-3/4" long

5шт.

14

367411R1

STUD, cylinder head, 1/2" dia. x 6-1/8" long

7шт.

14

367412R1

STUD, cylinder head, 1/2" dia. x 5-5/8" long

8шт.

15

107785R1

STUD, cylinder head, 3/8" dia. x 1-1/2" long

2шт.

16

367467R1

CYLINDER HEAD GASKET

cylinder head

1шт.

17

367456R1

BODY, energy cell, w/orifice

4шт.

18

367457R1

CAP, energy cell

4шт.

19

367458R1

RETAINER, energy cell

4шт.

20

367459R1

PLUG, energy cell retainer

4шт.

22

106794

VALVE

COCK, drain, type A, brs., 1/8"

1шт.

23

367433R1

DOWEL, cylinder, Serial Range: head-crankcase

2шт.

24

367409R91

1шт.

CRANKCASE, assembly (composed of (1) bushing 367422R1, (2) screw 367503R1, (1) bushing 367423R1, (2) stud 61915R1, (1) bushing 367424R1, (2) stud 62304R1, (1) cap 367413R1 (NSS), (2) stud 107785R1, (1) cap 367414R1 (NSS), (5) stud 367410R1, (1) cap 367415R1 (NSS) , (7) stud 367411R1, (1) cock 106794, (8) stud 367412R1, (1) dowel 367416R1, (1) stud 367419R1, (3) dowel 367417R1, (2) stud 367504R1, (1) plug 172592, (2) stud 40723V, (6) plug 444860, (2) stud 40777V, (7) plug 122018R1, (1) support 367420R1, (1)

1шт.

25

367433R1

DOWEL, gear, Serial Range: cover-crankcase

2шт.

26

444860

KEY

automative, hex-socket, drain, 1/4-18

1шт.

27

367434R1

GASKET

gear cover

1шт.

28

367432R91

COVER, gear, w/oil seal, 273573R91

1шт.

29

273573R91

SEAL

OIL SEAL, crankshaft front

1шт.

30

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

9шт.

31

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

SCREW, cap, hex-hd., 3/8-16NC x 1-1/8"

9шт.

32

367431R1

DOWEL, rear end plate

2шт.

33

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

34

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

5шт.

35

367436R1

GASKET, hydraulic pump adapter

1шт.

36

367435R1

ADAPTER, hydraulic pump

1шт.

37

102635

NUT,3/8"-16, G5

4шт.

38

40777V

STUD, hydraulic pump adapter to gear cover

2шт.

39

367439R1

OIL PAN GASKET SET

oil pan

1шт.

40

367438R91

PAN, oil

1шт.

41

33676V

PLUG

oil pan drain

1шт.

42

3405H

GASKET

oil pan drain plug

1шт.

43

122136R1

SCREW, cap, hex-hd., 5/16-18NC x 3/4", w/lockwasher

19шт.

44

63556R1

PLUG

expansion, 2" (camshaft rear bushing)

1шт.

45

367437R91

NECK, w/baffle, oil filter

1шт.

46

361559R91

CAP

oil filler, w/gasket, 363862R1 (optional with 362198R91)

1шт.

46

362198R91

CAP, oil filler, w/gasket, 363862R1 (optional with 361559R91)

1шт.

47

367421T1

POINTER, timing

1шт.

48

367440R1

SUPPORT, cylinder head breather tube

1шт.

49

367045R1

TUBE, breather

1шт.

367046R1

CLAMP, breather tube

1шт.

110500

SCREW,Slotted Rd Hd, #10-24 x 1/2"

machine, slotted-rd-hd, no 10-24NC x 1/2"

1шт.

110634

NUT, square no 10-24NC

1шт.

106497

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

50

363862R1

GASKET, oil filler cap

1шт.

51

107785R1

STUD, cylinder head-short

2шт.

52

Q1597

WASHER

plain, 13/32" ID x 3/4" OD x no. 16 ga.

2шт.

53

102635

NUT,3/8"-16, G5

2шт.

54

366783R1

GASKET

hydraulic pump adapter plate

1шт.

55

366782R1

PLATE, hydraulic pump adapter (for tractors without hydra-touch system)

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

cap, hex-hd., 3/8-16NC x 7/8"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

368763R1

STUD, cylinder head at air cleaner

2шт.
