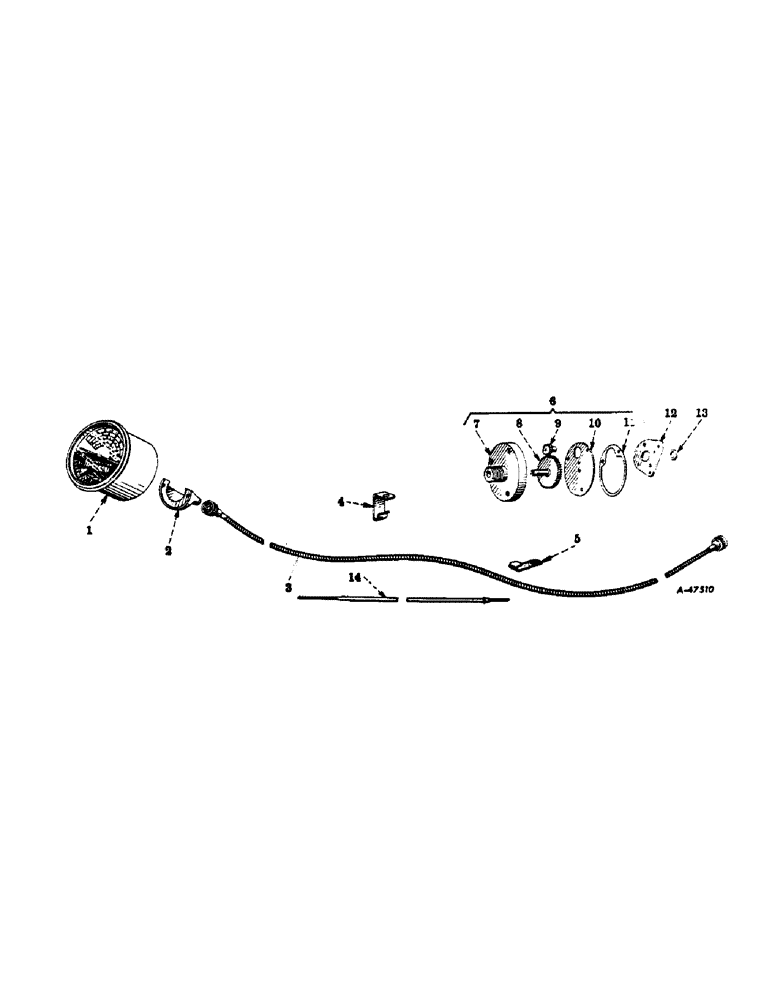

Запчасти Case IH 350 (358) - ATTACHMENTS, TACHOMETER, SPECIAL, FOR FARMALL 350 DIESEL AND 350 DIESEL HI-CLEAR TRACTORS Attachments

1

367146R91

TACHOMETER, w/two nuts, 120614, and two washers, 120217 (A only)

1шт.

1

367147R91

TACHOMETER, w/two nuts, 120614, and two washers, 120217

1шт.

2

364376R1

BRACKET, tachometer mounting

1шт.

364905R91

SCREW, machine, rd-hd., cross recess, w/internal-tooth, lock washer, 10-24 NF x 7/8"

2шт.

3

364375R91

CABLE

CONDUIT, tachometer, flexible drive shaft, w/core, 368107R91, and two mounting nuts

1шт.

4

364377R1

CLIP, angle, tachometer drive conduit

1шт.

5

363812R1

CLIP, tachometer drive conduit (onfuel tank front support RH mounting screw)

1шт.

6

367150R91

DRIVE, tachometer, assembly, composed of: (1) gasket 368118R1, (1) gear 368119R1, (1) gear and shaft 368120R1, (1) housing 368116R1, (1) plate 368117R1

1шт.

7

368116R1

HOUSING, tachometer drive

1шт.

8

368120R1

GEAR AND SHAFT, tachometer drive

1шт.

9

368119R1

GEAR, tachometer drive

1шт.

10

368117R1

PLATE, tachometer drive housing

1шт.

11

368118R1

GASKET, tachometer drive housing plate

1шт.

12

367148R1

PLATE, adapter, tachometer drive

1шт.

133495

SCREW,Mach, Sl Flat Hd, Csk, #8 - 32 x 0.62", Gr 2

machine, fl-hd., No. 8-32 x 5/8"

3шт.

13

367149R1

SPACER, tachometer drive gear

1шт.

14

368107R91

CORE

tachometer drive shaft, assembly

1шт.
