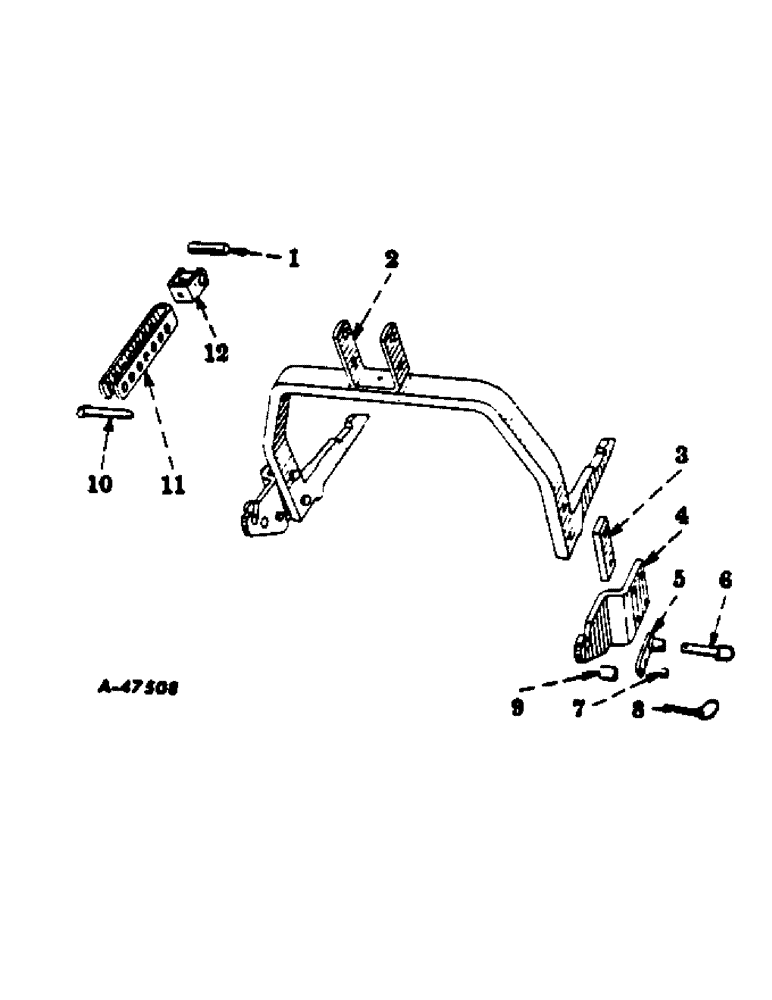

Запчасти Case IH 350 (355) - ATTACHMENTS, THREE POINT ADAPTER Attachments

522076R91

UNIT, adapter, three point (for tractor equipped with fast-hitch)

1шт.

1

517867R1

SPACER, yoke bracket

1шт.

2

522079R11

YOKE, attaching

1шт.

425-1012

NUT,3/4"-10, G5

hex., 3/4-10 NC

1шт.

17246R1

BOLT (SPREADER),Hex, 3/4" - 10 x 6"

SCREW, cap, hex-hd., 3/4-10 NC x 6"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

522082R1

BLOCK, spacer, pivot plate

2шт.

4

522083R1

PLATE, pivot, LH

1шт.

4

522084R1

PLATE, pivot, RH

1шт.

102639

NUT,5/8"-11, G5

4шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-11 NC x 3-1/4", Course Threads

4шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

517865R91

PLATE, latch, LH

1шт.

5

517866R91

PLATE, latch, RH

1шт.

6

517810R12

PIN,19.05mm OD x 104.39mm L

locking, w/ball and ring

2шт.

7

PO17728

SPACER, latch plate

2шт.

15058R11

BOLT (SPREADER)

BOLT, carriage, 5/8-11 NC x 1-3/4", w/nut

2шт.

218442

NUT, hex-jam, 5/8-11 NC

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

551177R1

WASHER

plain, 21/32" ID x 1-1/4" OD x No. 16 ga.

2шт.

8

517758R91

SPLIT PIN/SAFETY PIN

PIN, quick-attachable, implement attaching pin

2шт.

9

522077R1

SPACER

BUSHING, implement attaching pin

2шт.

10

517853R12

PIN

yoke bracker, w/ball and ring

1шт.

11

517860R1

STRAP, spacing, upper link (for 3/4" implement pin)

1шт.

11

522081R1

STRAP, spacing, upper link (for 1" implement pin)

1шт.

17082R1

BOLT, machine, sq-hd., dld., 5/8-11 NC x 1-3/8"

1шт.

25-1210

SLOTTED NUT,5/8"-11, G5

NUT, hex-slotted, 5/8-11 NC

1шт.

13092R1

PIN, cotter, 1/8 x 1-1/4"

1шт.

12

517854R11

STRAP, pivot

1шт.
