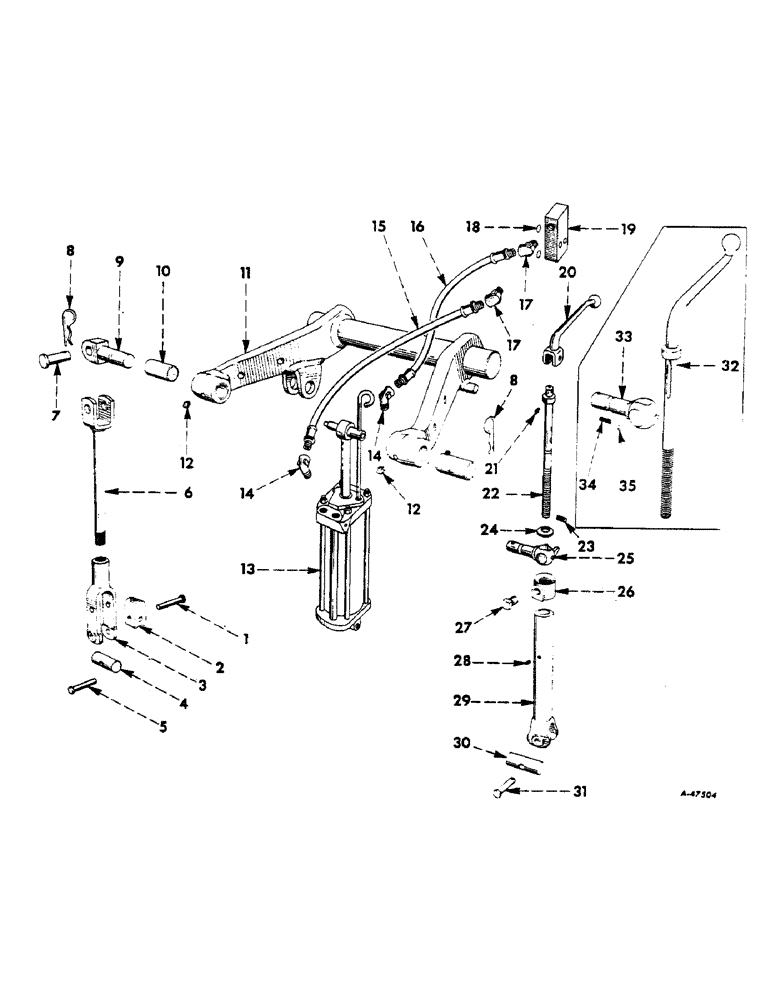

Запчасти Case IH 350 (340) - ATTACHMENTS, FAST-HITCH WITH TRACTION CONTROL, SPECIAL, ROCKSHAFT, LIFT LINK & LEVELING LINK Attachments

1

522855R1

PIN,12.7mm OD x 66.67mm L

vertical float lockout housing

1шт.

520175R1

CLIP

PIN, quick-attachable

1шт.

2

523085R1

BLOCK

lift link float

1шт.

3

522818R1

YOKE

HOUSING, lift link float

1шт.

4

522849R1

PIN

lift link pivot

1шт.

5

522856R1

PIN,12.7mm OD x 63.5mm L

lift link float, Serial Range: housing-pivot

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

6

522997R11

ROD

LINK, lift, LH

1шт.

7

523113R1

CLEVIS PIN,19.05mm OD x 60.33mm L

PIN, lift link clevis

1шт.

8

520175R1

CLIP

PIN, quick-attachable

2шт.

9

523090R1

PIN

EYE-BOLT, rockshaft arm, LH

1шт.

13139R1

PIN, cotter, 1/4 x 1-3/4"

1шт.

Q3482

WASHER

plain, 1-5/32" ID x 1-3/4" OD x No. 11 ga.

1шт.

10

523092R1

BUSHING,28.63mm ID x 33.45mm OD x 63.5mm L

rockshaft arm

2шт.

11

523095R91

ROCKSHAFT, assembly

1шт.

12

80710

LUBE NIPPLE,1/8” – 27 Dryseal PTF

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

13

366275R91

CYLINDER, hydraulic, assembly (3-1/2 x 8") (for components see list of parts under detail of "hydraulic cylinders")

1шт.

14

444496

ELBOW, street, automotive pipe, 45 deg., brs., 1/2"

2шт.

15

366312R91

HOSE

rear junction block to cylinder (1/2" ID x 22-1/2")

1шт.

365240R1

PLUG, pipe, sq-socket, stl., 1/2" (in rear junction block upper hole)

1шт.

16

353110R91

HOSE

check valve to cylinder (1/2" ID x 25")

1шт.

17

364148R1

ELBOW

street, 1/2" x 90 deg.

2шт.

18

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve

2шт.

19

362705R91

VALVE

check, assembly (for components see list of parts under details of "check valve")

1шт.

187227

SCREW, cap, hex-hd., 3/8-24 NF x 3-1/8"

2шт.

20

523861R1

GRIP

HANDLE, leveling screw

1шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

1шт.

21

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, lubrication, straight, 1/4-28 NF

1шт.

22

523864R11

ADJUSTMENT SCREW

SCREW, leveling, w/collar

1шт.

23

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, (in leveling screw) 1/4" x 7/8", Slotted

1шт.

24

522850R1

WASHER

WASHER, pivot (on leveling screw)

1шт.

25

523863R1

PIVOT

EYE-BOLT, leveling screw pivot

1шт.

Q3482

WASHER

plain, 15/32" ID x 1-3/4" OD x No. 11 ga.

1шт.

26

522816R1

COLLAR

vertical float lockout

1шт.

27

113020

SET SCREW,Sq Hd, 5/8"-11 x 1"

SCREW, set, sq-hd., cone-pt., 5/8-11 UNC x 1"

1шт.

28

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING, lubrication, straight, 1/4-28 NF - 2

1шт.

29

522819R1

HOUSING

leveling screw

1шт.

30

522849R1

PIN

leveling screw housing pivot

1шт.

31

522856R1

PIN,12.7mm OD x 63.5mm L

leveling screw, Serial Range: housing-pivot

1шт.

13068R1

PIN,3/16" x 1"

Split (Cotter), 3/16" x 1"

1шт.

32

522822R11

CRANK, leveling screw (order 523863R1 eye-bolt, 523861R1 handle, 576483R1 pin, and 523864R11 screw)

1шт.

33

523120R1

EYE-BOLT, leveling screw pivot (used with 522822R11 crank)

1шт.

34

523522R1

SPRING, leveling screw pivot eye-bolt (used with 523120R1 eye-bolt)

1шт.

35

518474R1

BALL, stainless-stl., 3/8" (used with 523120R1 eye-bolt)

1шт.
