Запчасти Case IH 350 (334) - ATTACHMENTS, 3-1/2 X 8" HYDRAULIC CYLINDER & CONNECTIONS, SIDE PLATES & LEVELING SCREW, FARMALL 300 Attachments

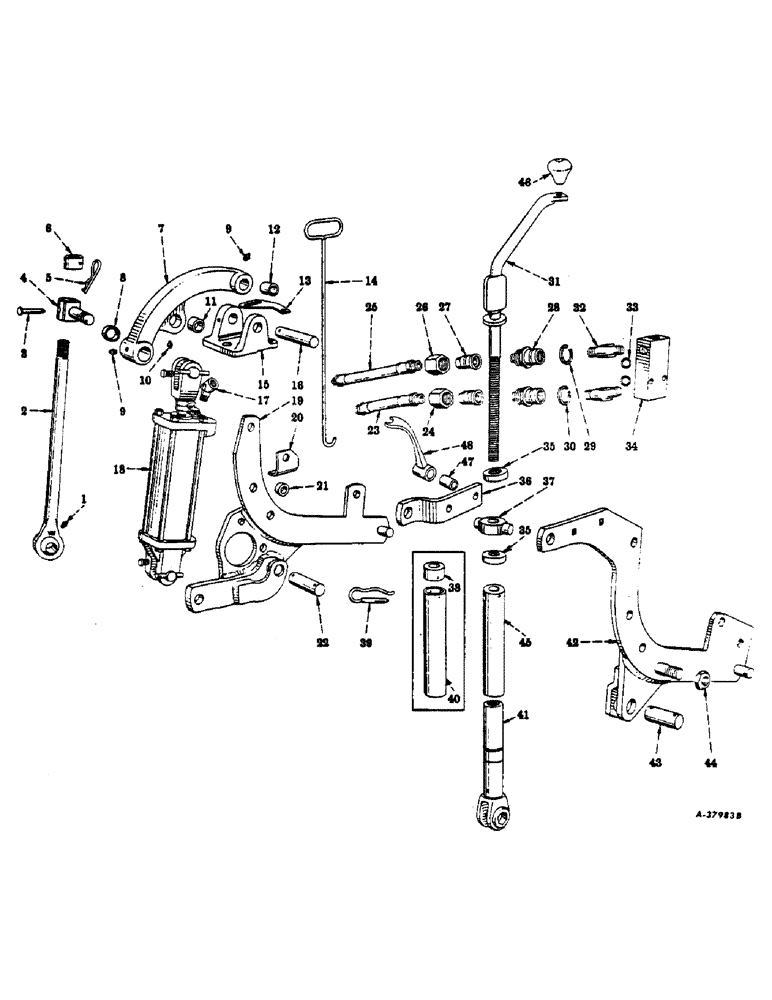

Схема запчастей Case IH 350 - (334) - ATTACHMENTS, 3-1/2 X 8" HYDRAULIC CYLINDER & CONNECTIONS, SIDE PLATES & LEVELING SCREW, FARMALL 300 Attachments
21
41
9
3
5
1
35
11
25
40
47
28
34
16
14
43
26
6
44
35
36
19
39
38
17
4
8
15
10
18
30
27
24
42
29
45
33
48
20
32
13
12
6
31
9
7
22
37
23
2

Артикул

Название

Примечание

Количество

1

110161

FITTING, lubrication, straight, drive type, 3/16"

1шт.

2

521457R11

LINK, lift, w/ball (will work for 519941R11)

1шт.

17077R1

PIN, roll, 3/8 x 1-15/16"

1шт.

3

520048R1

PIN, locking, lift link

1шт.

4

519939R1

EYEBOLT, lift link

1шт.

13139R1

PIN, cotter, self-opening, 1/4 x 1-3/4"

1шт.

N42395

WASHER

plain, 1-9/32" I.D. x 1-3/4" O.D. x No. 12 ga.

1шт.

5

517843R1

COTTER PIN

PIN, cotter, quick attachable

1шт.

6

520043R2

CAP, lift link

1шт.

17270R1

PIN, roll, 3/16 x 1-7/8"

1шт.

7

519933R11

ARM, cylinder rocker arm, w/bushing, 519953R1, two bushing, 520044R1 and two bushing, 520045R1

1шт.

8

520045R1

BUSHING

lift link eyebolt

2шт.

9

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING, lubrication, straight, 1/8"

2шт.

10

110161

FITTING, lubrication, straight, drive type, 3/16"

1шт.

11

519953R1

BUSHING, hydraulic cylinder pivot

1шт.

12

520044R1

BUSHING, cylinder rocker arm

2шт.

13

520035R1

HOLDER, latch hook, upper

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

14

519982R1

HOOK, latch

1шт.

15

519930R1

BRACKET, cylinder rocker arm pivot

1шт.

271560

PANEL,Hex, 5/8" - 11 x 1 3/4", Gr 5

cap, hex-hd., 5/8-11 NC x 1-3/4"

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10 NC x 1-3/4"

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

16

520010R1

SHAFT, cylinder rocker arm pivot

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

17

444496

ELBOW, street, automotive pipe, 45 deg., brs., 1/2"

2шт.

18

360997R91

CYLINDER, hydraulic (3-1/2 x 8") assembly (for components see list of parts under detail of "hydraulic cylinders")

1шт.

19

519968R91

PLATE, L.H. side

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cap, hex-hd., 3/4-10 NC x 1-3/4"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

20

520036R1

HOLDER, latch hook, lower

1шт.

271613

SCREW,Hex, 3/4" - 10 x 2 1/2", Gr 5

cap, hex-hd., 3/4-10 NC x 2-1/2"

1шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

21

519986R1

SPACER, lower latch hook holder

1шт.

22

520011R1

PIN, hitch bail pivot, L.H.

1шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

2шт.

23

363633R91

HOSE

rear junction block to cylinder, 1/2" I.D. x 9"

1шт.

24

357965R2

NUT

union, self-sealing coupling (white)

1шт.

25

363632R91

HOSE

check vale to cylinder, 1/2" I.D. x 13-3/4"

1шт.

26

357965R2

NUT

union, self-sealing coupling (white)

1шт.

27

353218R91

COUPLING

female half, self-sealing, assembly (for components see list of parts under detail of "break-away or self-sealing couplings")

2шт.

28

353217R92

COUPLING

male half, self-sealing, assembly (for components see list of parts under detail of "break-away or self-sealing couplings")

2шт.

29

363463R1

RING, snap, self-sealing coupling (black) (no longer supplied for service)

1шт.

30

108493R1

RING, snap, self-sealing coupling (white) (no longer supplied for service)

1шт.

31

522016R91

SCREW, leveling, 521789R11, w/knob, 53717DA, and pin, 521672R1 (will work for 519983R11) (for hitches w/o leveling screw lock)

1шт.

31

521789R11

SCREW, leveling (for hitches w/leveling screw lock)

1шт.

441012R1

LOCK PIN,1/4" x 7/8", Slotted

Pin, 1/4" x 7/8", Slotted

1шт.

32

362916R1

ELBOW, male, cylinder hose

2шт.

33

350429R1

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

RING, seal, check valve

2шт.

34

362705R91

VALVE

check, assebly (for components see list of parts under detail of "check valve")

1шт.

187227

SCREW, cap, hex-hd., 3/8-24 NF x 3-1/8"

2шт.

35

66991R91

BEARING, thrust, roller

2шт.

36

520019R1

HAMMER STRAP, leveling screw bracket

1шт.

15058R1

BOLT, carriage, sq-nk., 5/8-11 NC x 1-3/4" (2 used on hitches w/o leveling screw lock)

1шт.

114820

NUT, hex., 5/8-11 NC (2 used on hitches w/o leveling screw lock)

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, (2 used on hitches w/o leveling screw lock) 5/8"

1шт.

37

519938R1

TRUNNION, leveling screw

1шт.

38

COLLAR, leveling screw (not serviced separately - order 520059R21)

1шт.

39

520037R11

COTTER, quick attachable, w/pin

1шт.

40

COVER, leveling screw (not serviced separately - order 520059R21)

1шт.

113953

WASHER

SCREW, machine, slotted-rd-hd., 1/4-20 NC x 5/16"

1шт.

41

519927R1

HOUSING, leveling screw

1шт.

17305R1

NUT, lock, 5/8-18 NF

1шт.

14-1036

BOLT,Hex, 5/8" - 18 x 2-1/4", Gr 5

SCREW, cap, hex-hd., 5/8-18 NF x 2-1/4", Fine Thread

1шт.

42

519962R91

PLATE, R.H. side

1шт.

271609

BOLT,Hex, 3/4" - 10 x 1 3/4", Gr 5

SCREW, cp, hex-hd., 3/4-10 NC x 1-3/4"

4шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

43

520013R1

PIN, hitch ball pivot, R.H.

1шт.

13170R1

Pin, Split (Cotter), 5/16" x 2 1/4", self-opening 5/16" x 2 1/4"

2шт.

44

17297R1

NUT

lock, hex., 1"-14 NF

1шт.

615227R1

WASHER

plain, 1-1/32" I.D. x 1-3/4" O.D. x No. 11 ga.

1шт.

45

520059R21

COVER, leveling screw, w/collar (will work for 520039R1 and 520059R1)

1шт.

46

53717DA

BUTTON

KNOB, leveling screw

1шт.

521672R1

PIN, leveling screw knob

1шт.

47

521791R1

BUSHING, leveling screw stop

1шт.

48

521790R1

STOP, leveling screw

1шт.

15146R1

BOLT, carriage, sq-nk., 5/8-11 NC x 3"

1шт.

102639

NUT,5/8"-11, G5

1шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x No. 11 ga.

1шт.

Выбрано товаров: 82
