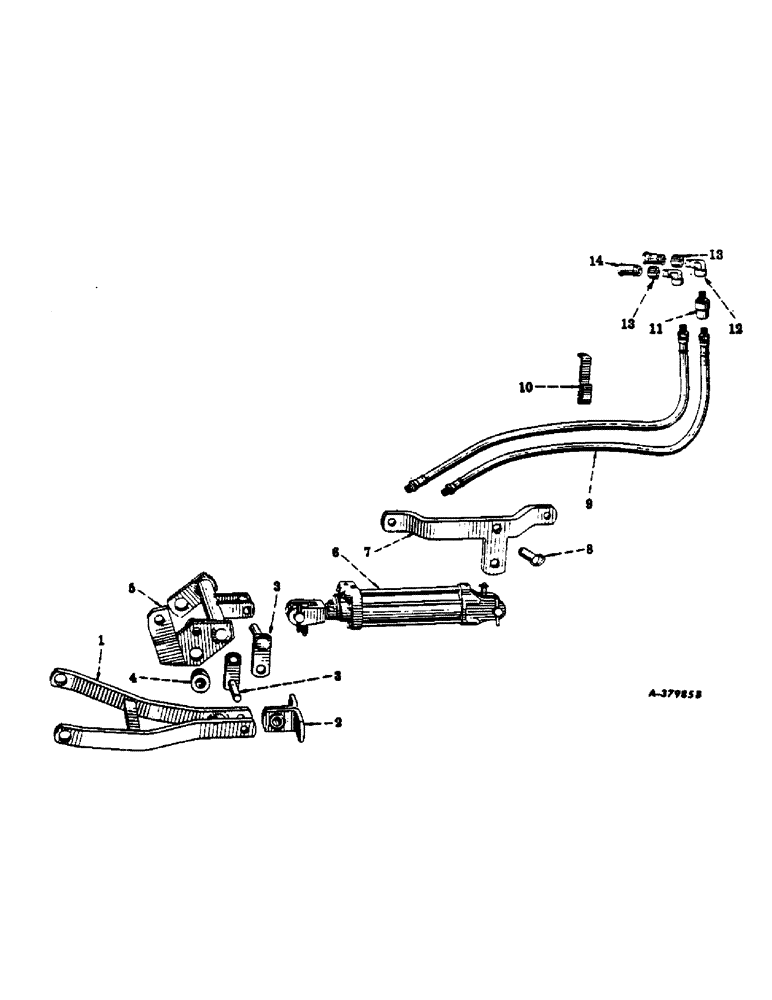

Запчасти Case IH 350 (332) - ATTACHMENTS, DEPTH ADJUSTING ROCKSHAFT, 2-1/2 X 8 INCH HYDRAULIC CYLINDER & CONNECTIONS, FARMALL 300 Attachments

1

519991R91

BAIL, hitch adjusting

1шт.

2

519945R91

BRACKET, bail pivot, w/ball

1шт.

15163R1

BOLT, carriage, sq-nk., 3/4-10 NC x 3-1/4"

2шт.

114821

NUT, hex., 3/4-10 NC

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

3

520018R91

STRAP, pitman, w/stud

2шт.

13121R1

Pin, Split (Cotter), 1/4" x 1 1/2", self opening 1/4" x 1 1/2"

2шт.

4

520007R1

BUSHING, depth adjustment rockshaft pivot

2шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

5

520000R91

ROCKSHAFT, depth adjusting

1шт.

6

360994R91

CYLINDER

hydraulic (2-1/2 x 8") assembly (for components see list of parts under detail of "hydraulic cylinders"

1шт.

7

520031R11

BRACKET, depth adjusting cylinder anchor

1шт.

271611

BOLT,Hex, 3/4" - 10 x 2", Gr 5

SCREW, cap, hex-hd., 3/4-10 NC x 2"

2шт.

103326

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

8

520008R11

PIN

quick attachable, w/ball, handle, and spring (locking pin for depth adjusting rockshaft)

1шт.

9

355565R92

HOSE

hydraulic cylinder, 1/2" I.D. x 40-1/2"

2шт.

10

362922R1

BRACKET, hose support

1шт.

11

362904R91

VALVE, adjustable drop retarding assembly (for components see list of parts under detail of "adjustable drop retarding valve")

1шт.

12

444484

ELBOW

street, automotive pipe, 90 deg., brs., 1/2"

2шт.

13

357965R2

NUT

union, self-sealing coupling (white)

2шт.

14

353218R91

COUPLING

female half, self-sealing, assembly (for components see list of parts under detail of "break-away or self-sealing couplings")

2шт.
