Запчасти Case IH 350 (328) - ATTACHMENTS, FRONT FRAME CHANNEL WEIGHTS, SPECIAL Attachments

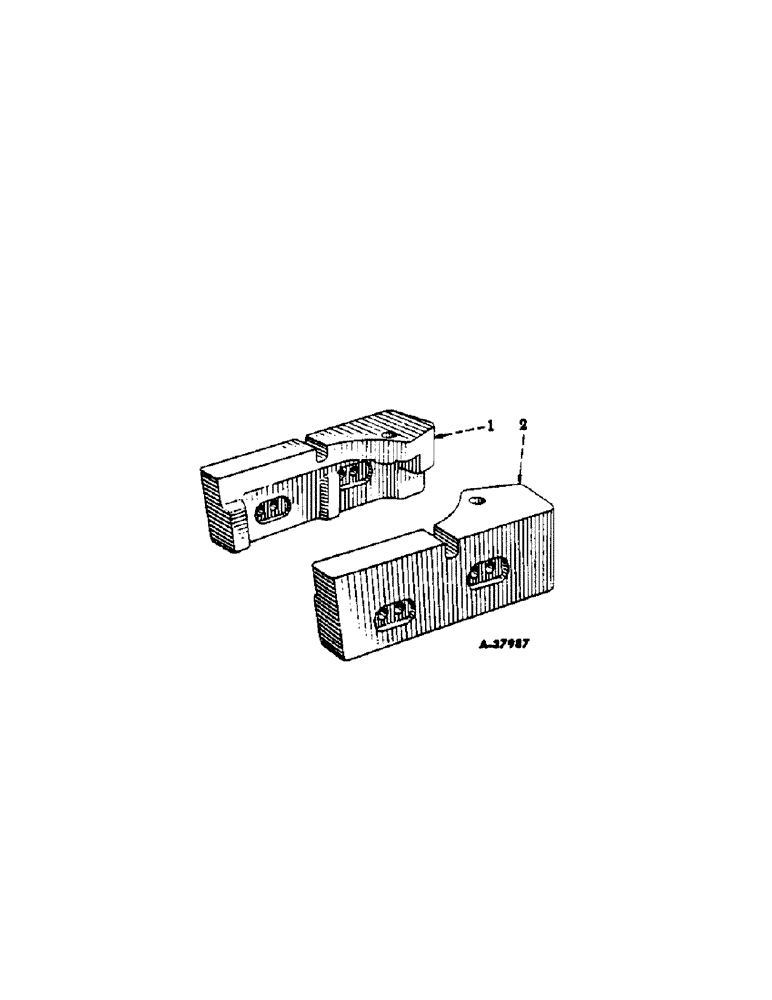

Схема запчастей Case IH 350 - (328) - ATTACHMENTS, FRONT FRAME CHANNEL WEIGHTS, SPECIAL Attachments
2
1

Артикул

Название

Примечание

Количество

1

362959R1

WEIGHT, front frame channel, L.H. (approx. 125 lbs.)

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, cap, hex-hd, 5/8-11 NC x 4", Course Threads

2шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x No. 11 ga.

2шт.

2

362960R1

WEIGHT, front frame channel, R.H. (approx. 125 lbs.)

1шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

SCREW, cap, hex-hd, 5/8-11 NC x 4", Course Threads

2шт.

12258R1

WASHER

plain, 21/32" I.D. x 1-1/4" O.D. x No. 11 ga.

2шт.

Выбрано товаров: 6
